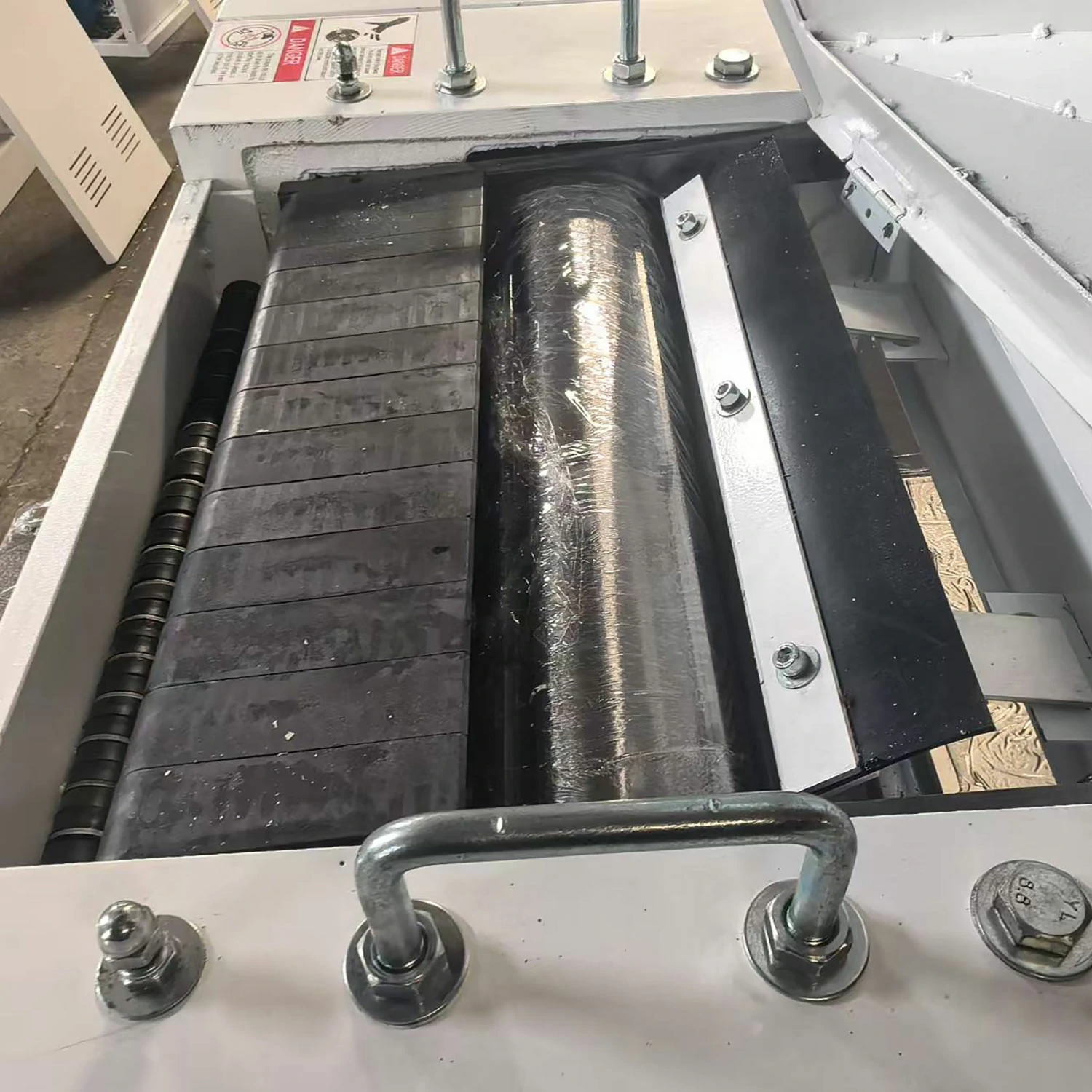

MB104H
MB104H - Image 2

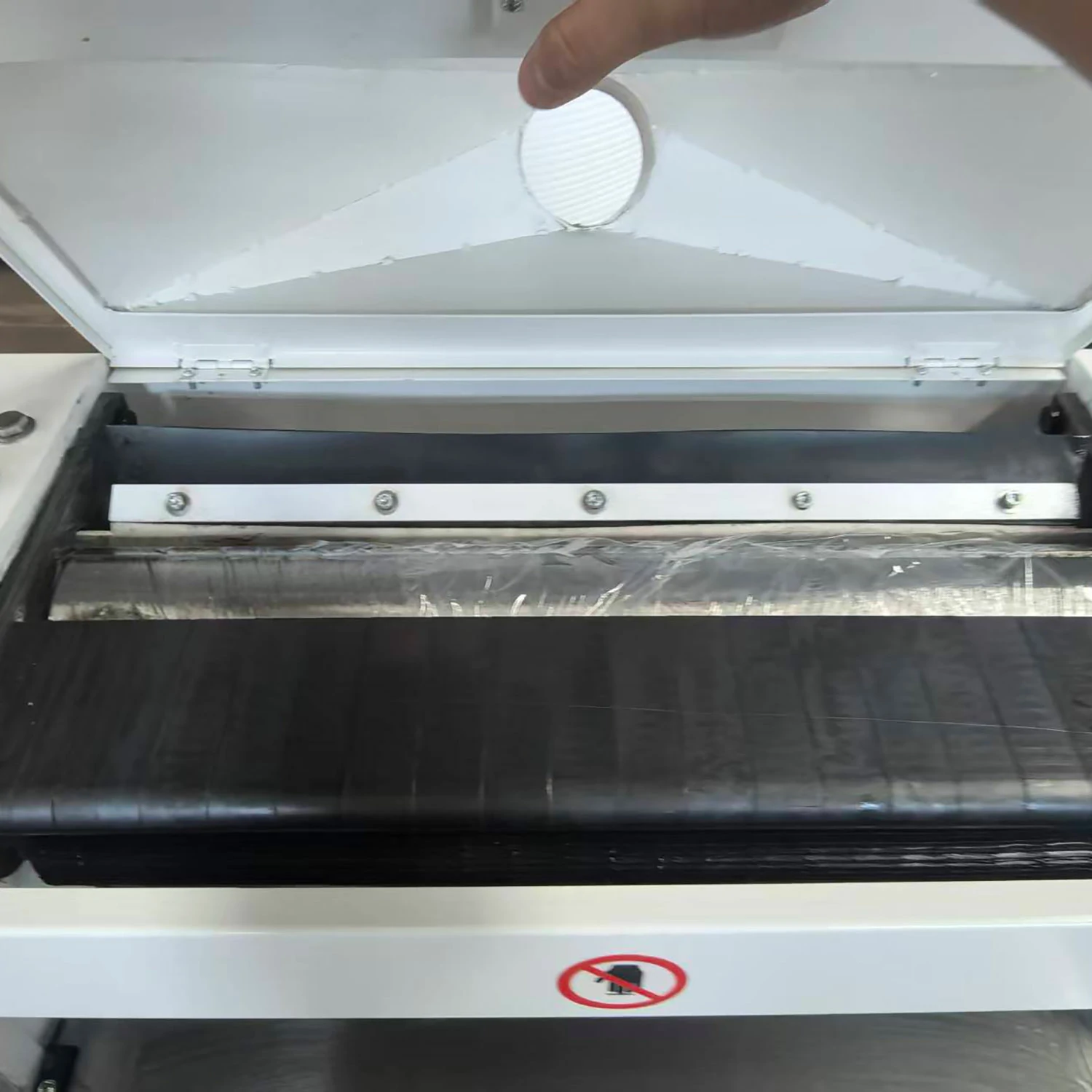

MB104H - Image 3

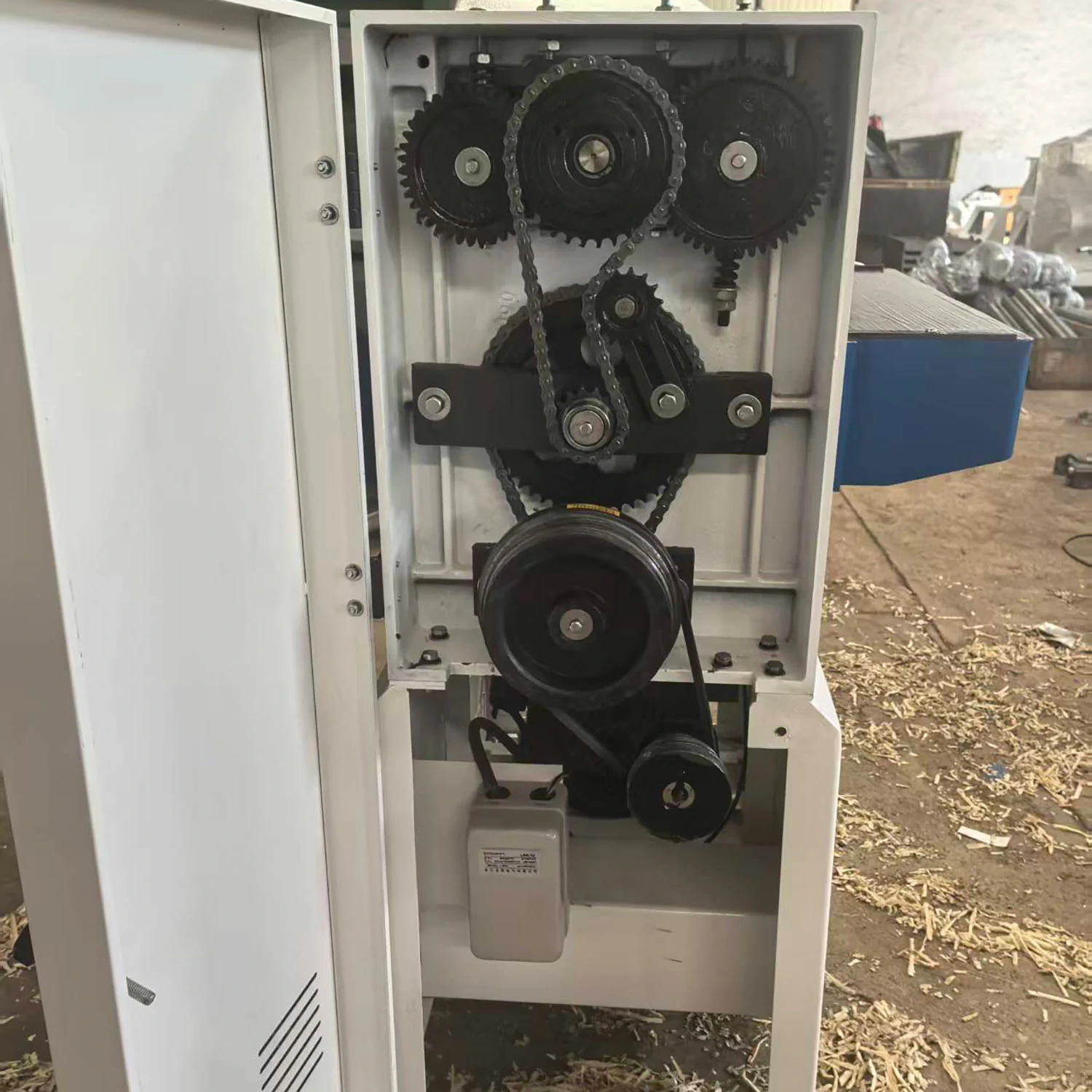

MB104H - Image 4

MB104H

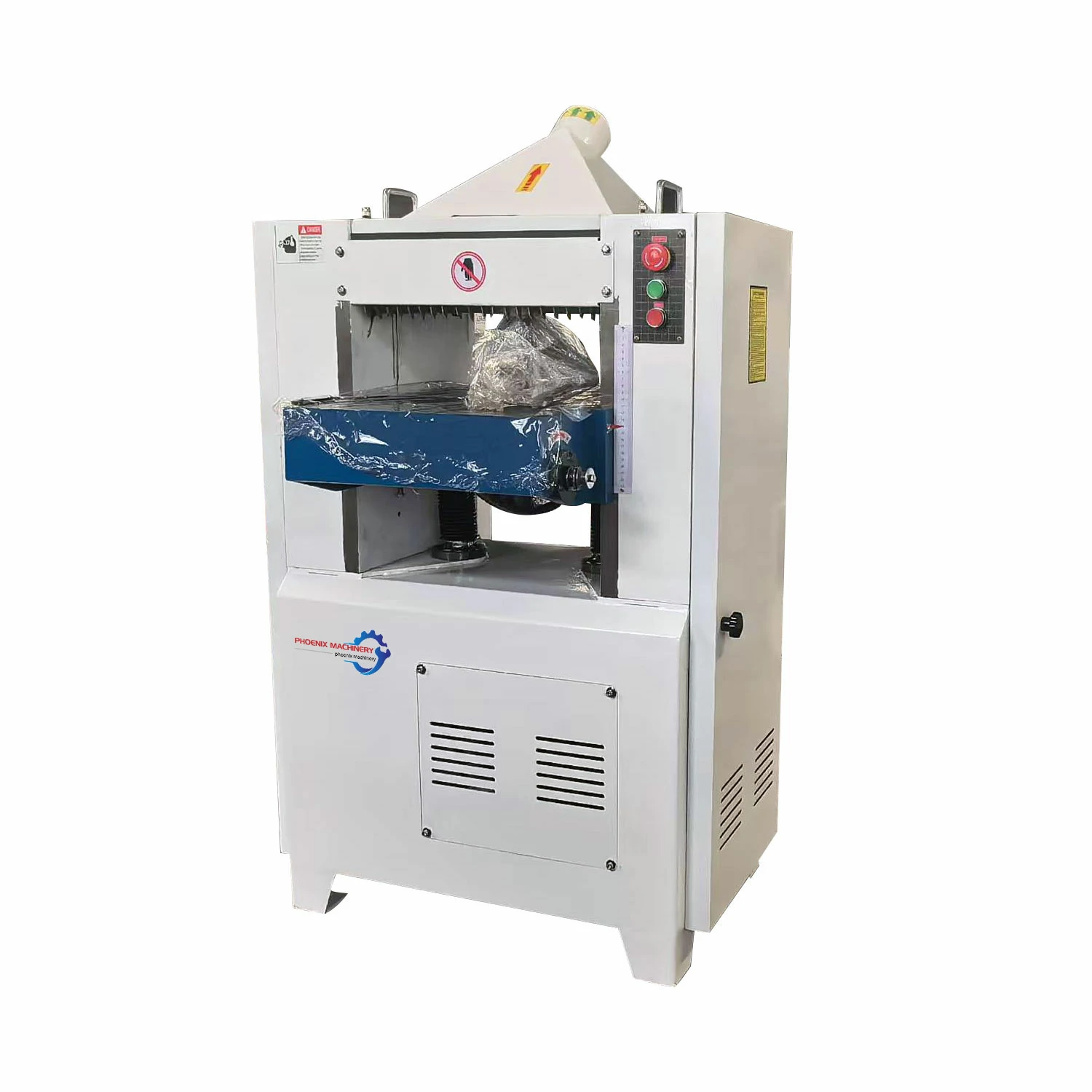

MB104H High Speed Single Face Electric Spiral Cutter Desktop Wood Planer with Core Motor Assembly

Inquire Now
产品类别

Description

Automated Efficiency Industrial Single-Sided Wood Planer With Straight Cutter Head.

Model MB104H MB105H MB106H MB108H MB1000 MB1300
Max. planing width 400mm 500mm 640mm 840mm 1000mm 1300mm
Max. pressing thickness 8-205mm 8-205mm 8-205mm 8-205mm 8-205mm 8-205mm
Max. planing length ≥220mm ≥220mm ≥220mm ≥220mm ≥220mm ≥220mm
Planning shaft speed 5100r/min 5100r/min 5100r/min 5100r/min 5100r/min 5100r/min
Max cutting capacity ≤5mm ≤5mm ≤5mm ≤5mm ≤5mm ≤5mm
Feeding speed 12/14/16 m/min 12/14/16 m/min 8/10/12 m/min 8/10/12 m/min 8/10/12 m/min 8/10/12 m/min
Voltage /power 4KW 4KW 7.5kw 7.5kw 11kw 15kw
Dust port diameter Ø100mm Ø100mm Ø100mm Ø100mm Ø100mm Ø100mm
Overall dimensions 810*850*1400mm 910*850*1400mm 1050*850*1400mm 1270*1100*1470mm 1540*1100*1470mm 1750*1100*1470mm
Weight 450kg 500kg 550kg 780kg 1050kg 1350kg
