The round bar machine uses two pairs of feeds to roll compact square wood to make it longitudinally feed. The hollow spindle has a cutter head that rotates at high speed, and the wood is cut into a round bar through the hollow spindle. The scope of use of the round bar machine: the round bar machine has a wide range of use. The raw materials can be square or round. It can be used to process wooden uneven bars, martial arts sticks and other sports equipment, rolling pins, mine pillars, ancient building rafters, purlins, and stairs. Round wooden bars such as armrests.
| Equipment name | Multiple Round Rod Machine | Multiple Round Rod Machine | Multiple Round Rod Machine |
| Model | MB9010T | MB9012 | MB9015 |
| Round rod diameter | 3mm-50mm | 5mm-70mm | 6mm-80mm |
| Material length | ≥250mm | ≥ 250mm | ≥ 250mm |
| Processing width | 10-100mm | 10-120mm | 10-150mm |
| Maximum processing thickness | 50 | 100 | 100 |
| Knife shaft speed | 8500 rpm | 8500 rpm | 8500 rpm |
| Knife shaft diameter | 30mm | 30mm | 35mm |
| Knife shaft motor | 5.5kw*2 | 7.5KW * 2 | 11KW * 2 |
| Feeding motor | 1.1kw | 1.1KW | 1.5KW |

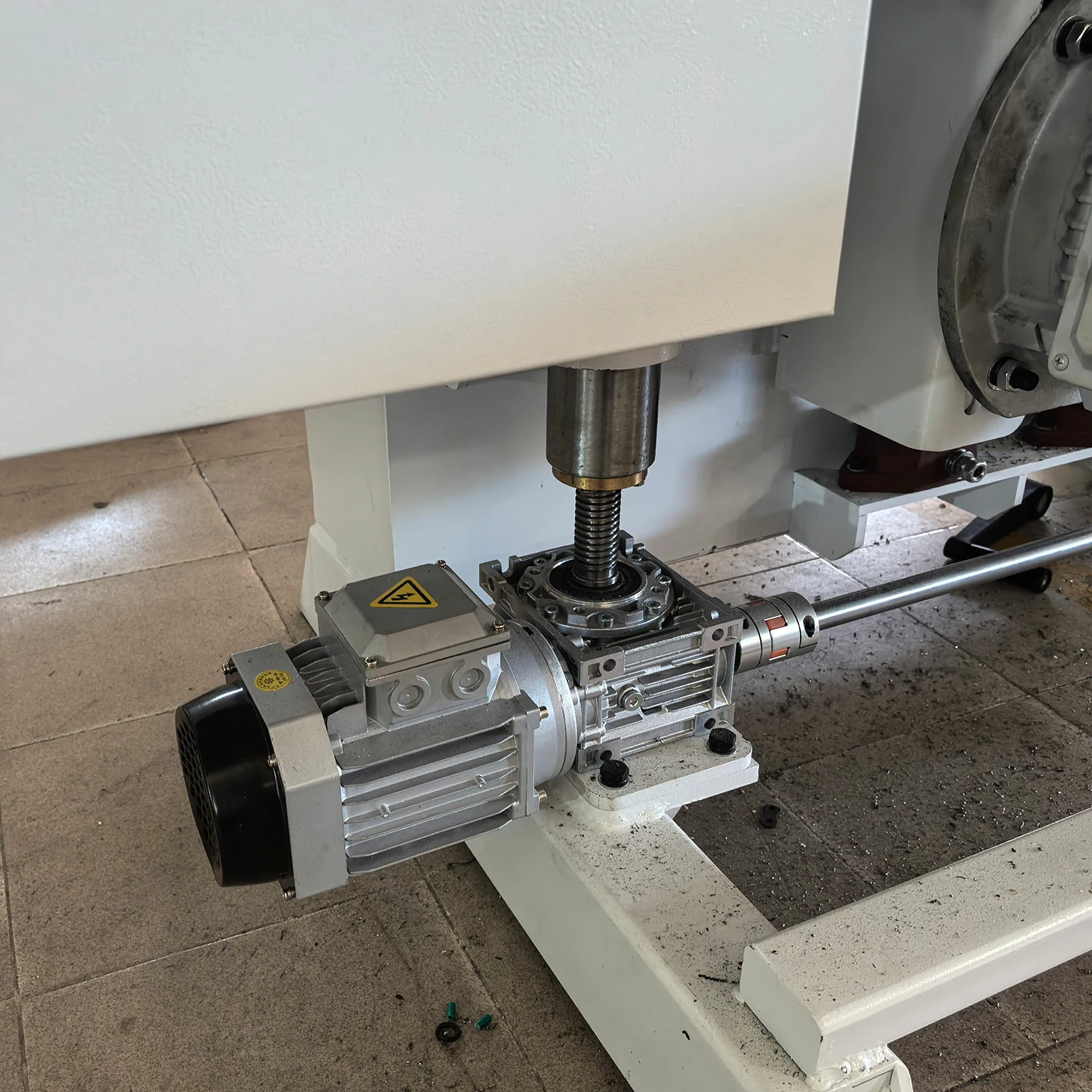

| Lifting motor | No lifting motor | 0.75KW | 0.75KW |
| weight | 500kg | 750KG | 980KG |
| Overall dimensions | 1390*920*1380mm | 1500*1050*1380mm | 1800*1050*1380mm |
| Additional remarks | Including a set of cutting tools/guide plate pressing plate | Including a set of cutting tools/guide plate pressing plate | Including a set of cutting tools/guide plate pressing plate |
