MJ105

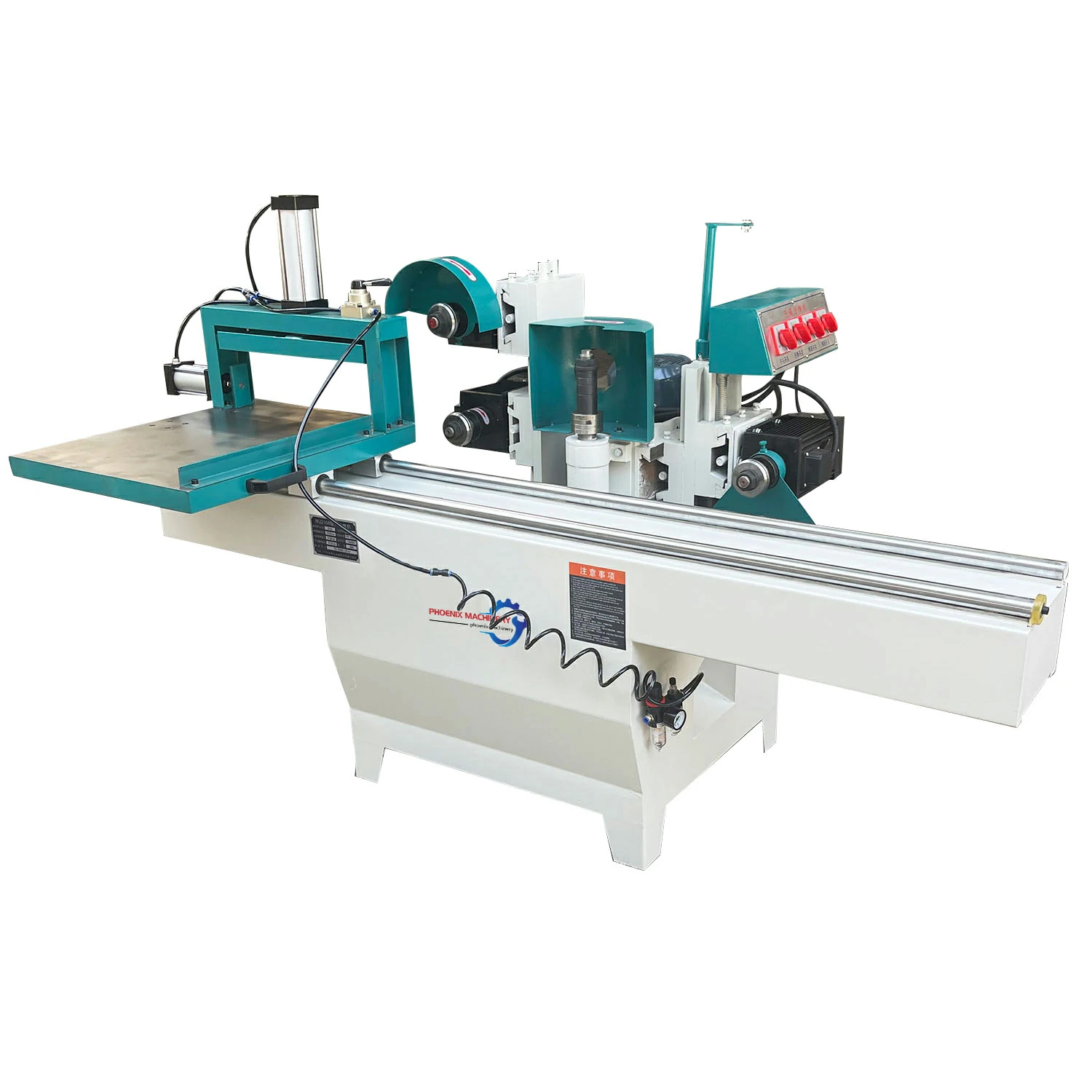

Pneumatic Five Saw Blade Tenon Machine Automatic CNC Dovetail Tenoning Machine Milling

Inquire Now
产品类别

Description

Mainly used for continuous processing and shaping of wooden products through multiple processes such as tenoning, shoulder cutting, and truncation. It can process several wooden blocks together each time and can tenon at a 45 degree angle. The tenon specifications can be adjusted at will. If a milling cutter with a comb tenon is installed on the upper end of a vertical shaft, it can also process comb tenons with a thickness of less than 80. This machine has the characteristics of compact structure, reasonable layout, flexible operation, and working. It is an ideal equipment for furniture manufacturing and solid wood processing.

Mode MJ105
Number of guide rails double guide rail
Worktable size 700×550mm
Guide rail length 1950mm
Maximum tenon length 80mm
Tenon thickness 10-80mm
Spindle speed 6000r/min
Diameter of tenon thickness saw blade 255mm
Shoulder cutting saw blade diameter 200mm
Diameter of end cutting saw blade 255mm
Motor power 7.7kw
Weight of machine 380kg
Overall size(L*W*H) 1950*1300*1350mm
