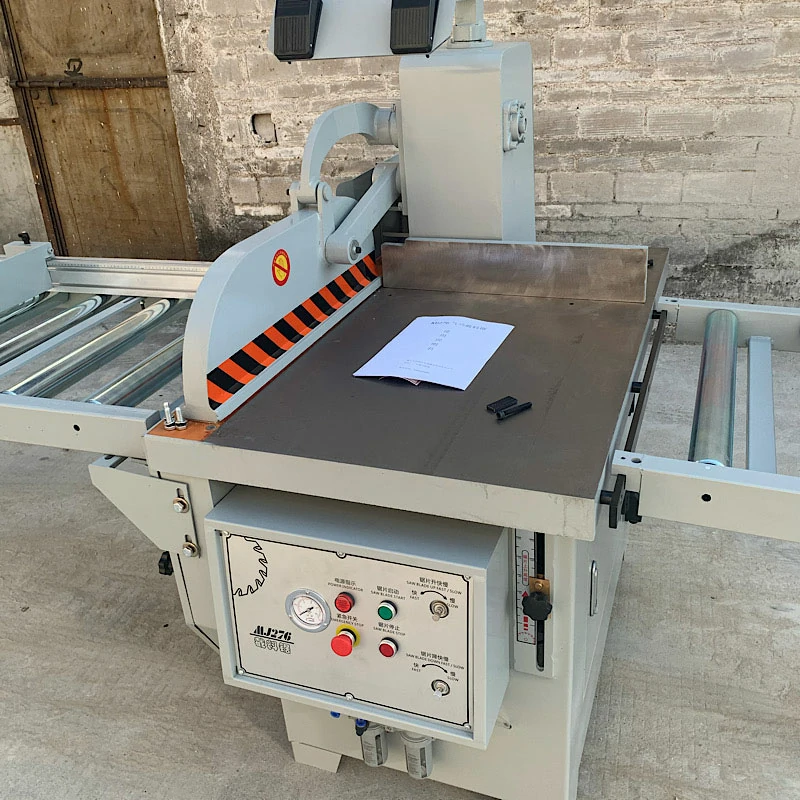

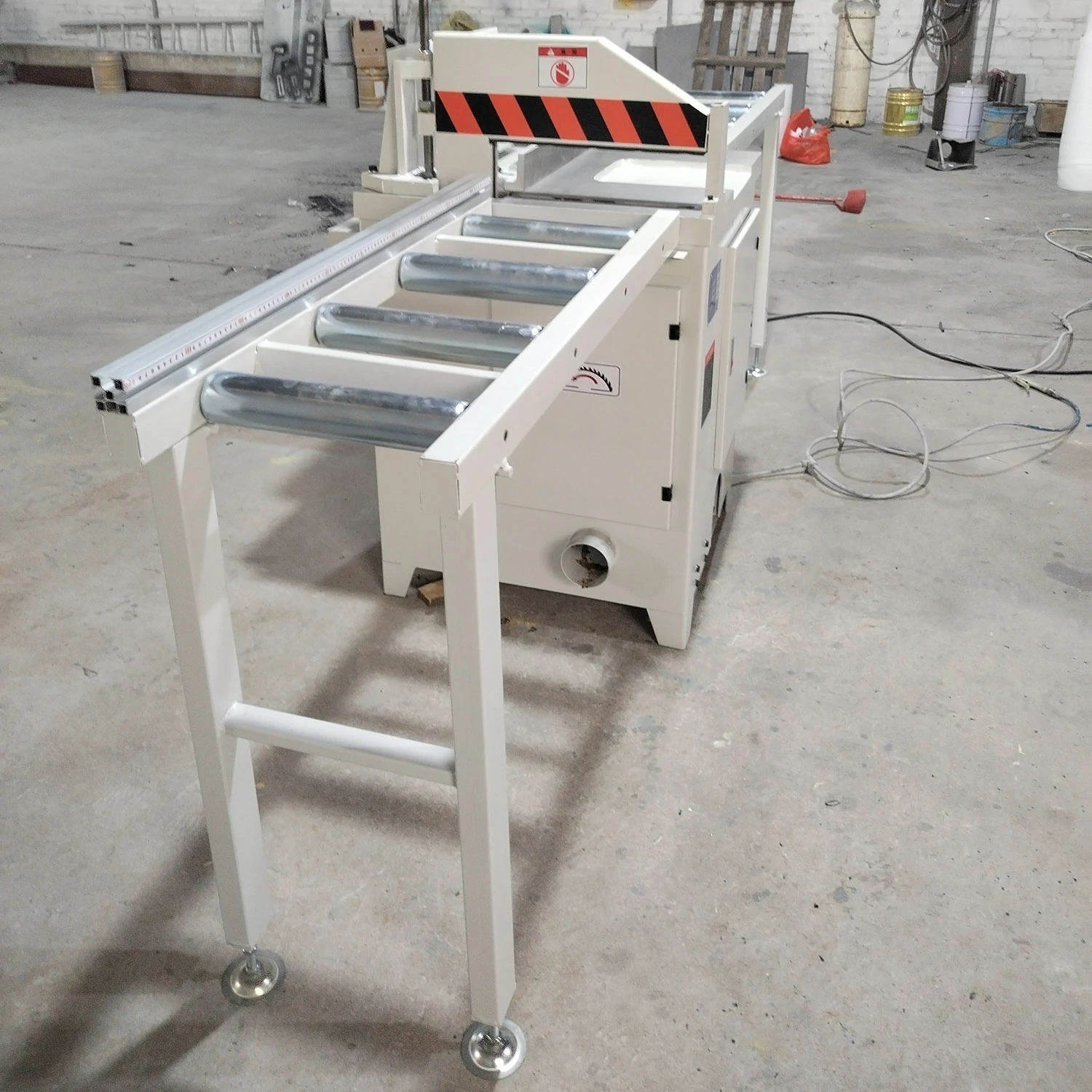

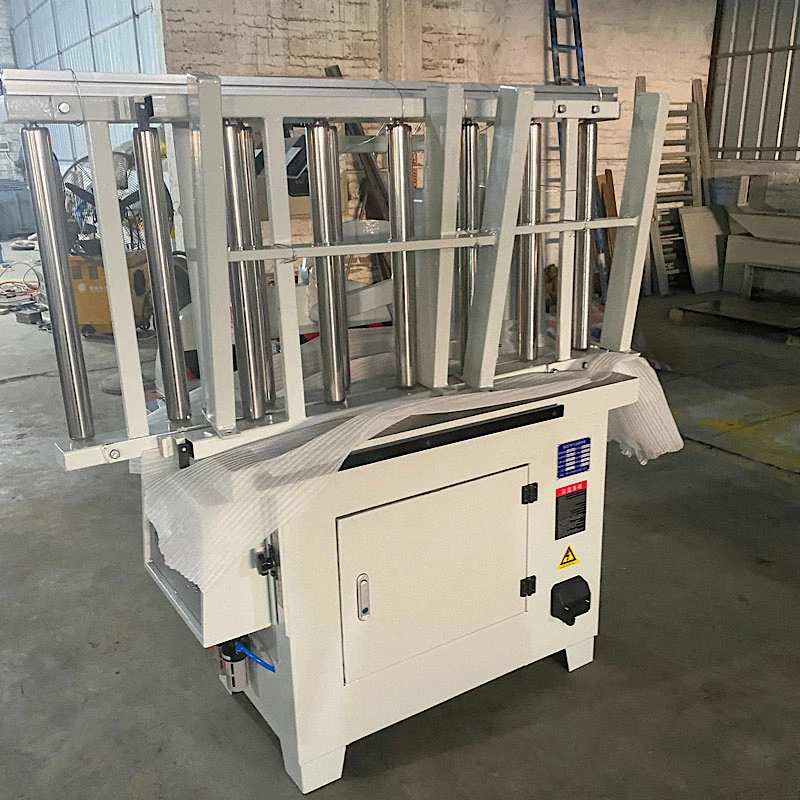

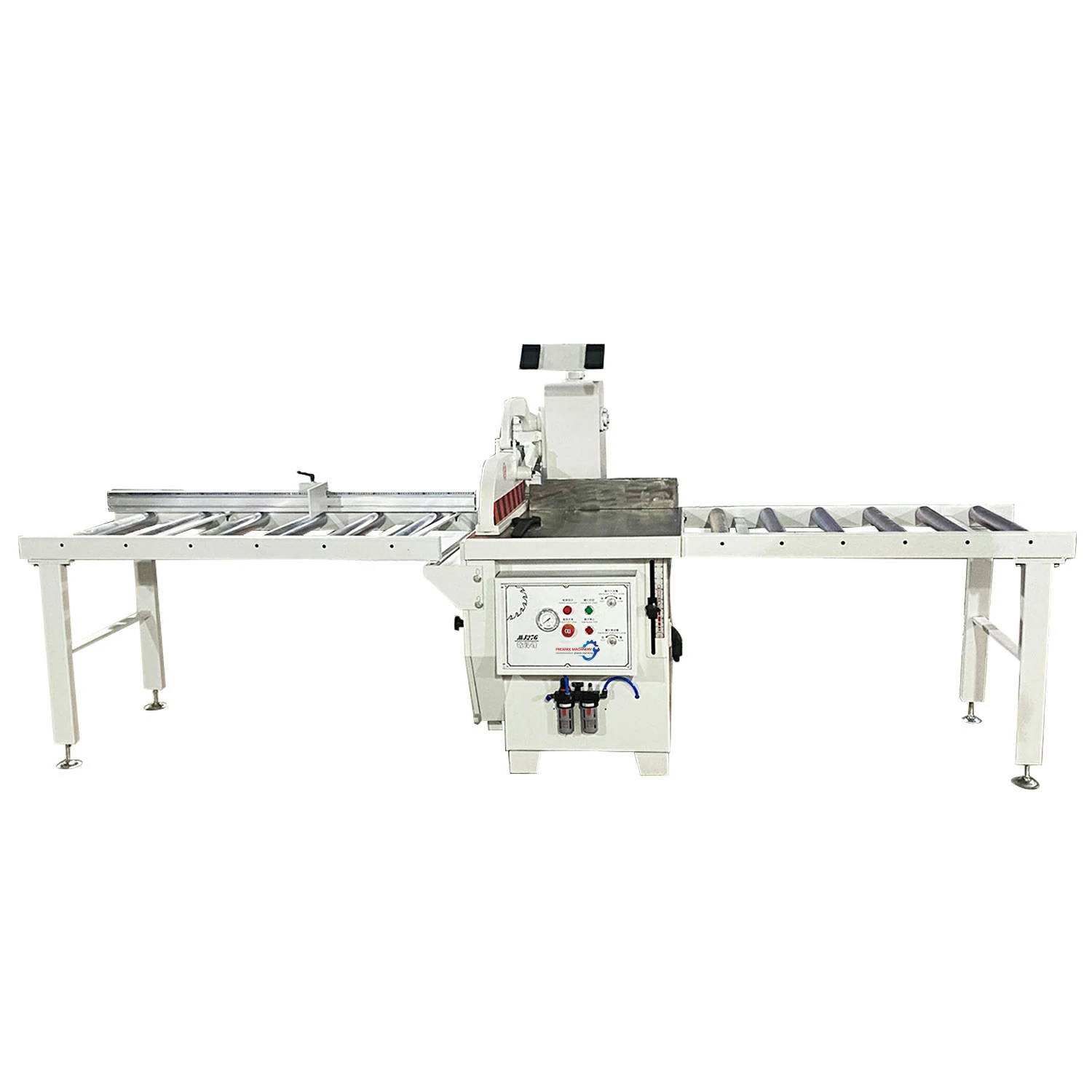

The MJ276 Pneumatic Cutting Saw uses a single saw blade structure to cut wood in batches. When a piece of wood enters the machine,it can be cut accurately, and it can also cut small pieces of wood in batches with a limited number of wood strips. The sawing efficiency is high and the operation is simple.The MJ276 Pneumatic Cutting Saw is very suitable for factories that produce furniture, handicraft factories and other factories that need to cut a large number of wood strips.
| Model | MJ274 | MJ276 |
| Max. cutting width | 250mm(thickness 70mm) | 520mm(thickness 40mm) |
| Max. cutting thickness | 150mm(wdith 110mm) | 200mm(width 170mm) |
| Diameter of the saw blade | 400mm/455mm*25.4mm | 600mm*30mm |
| Rotation speed of the sharft | 3500r/min | 1850r/min |
| Motor power | 5.5kw | 7.5kw |
| Feeding roller table size | 1000*340mm | 1200*660mm |
| Discharge roller table size | 1200*340mm | 1500*660mm |
| Overall dimensions(L×W×H) | 3000*800*1100mm | 4250*1150*1300mm |
| Weight | 400kg | 550kg |
