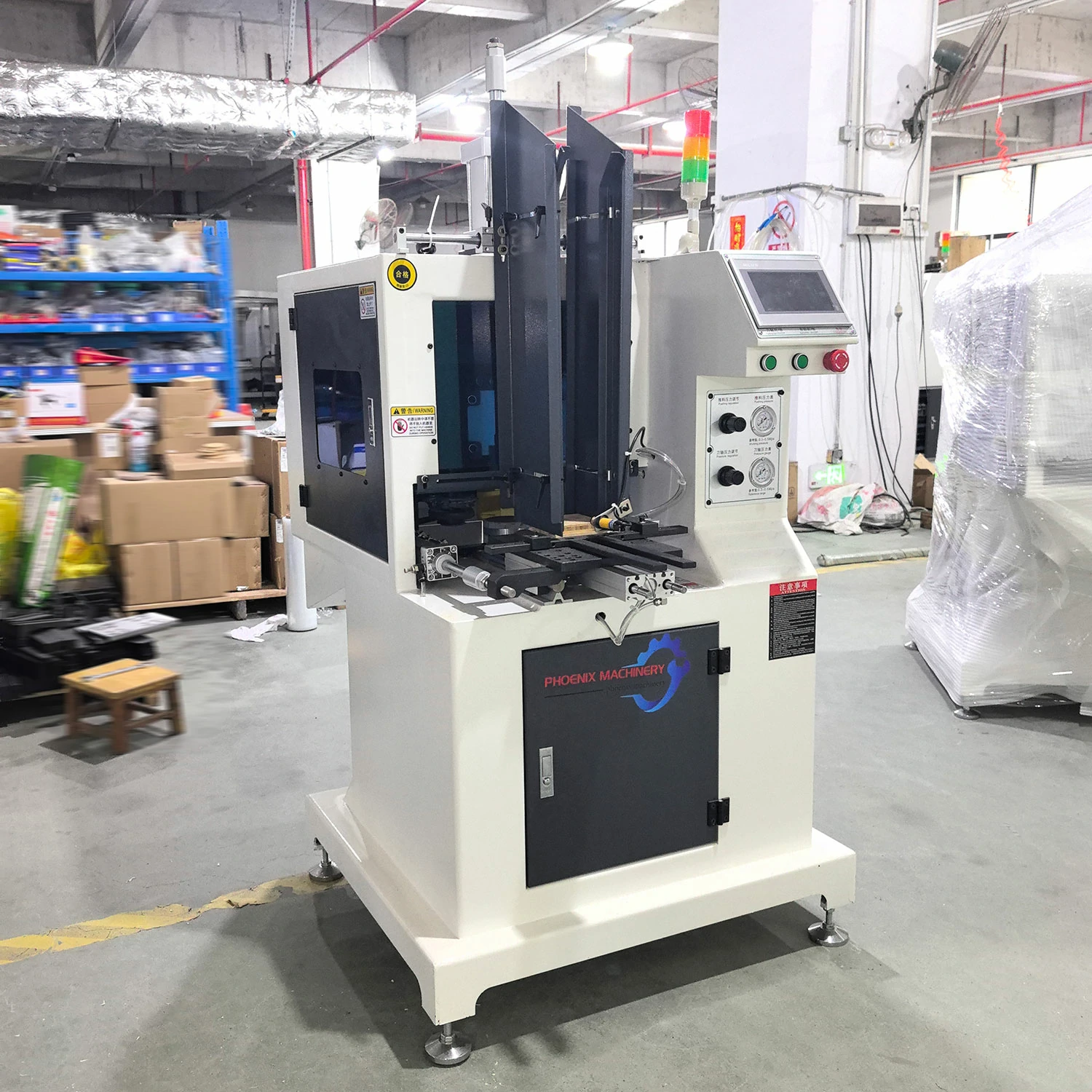

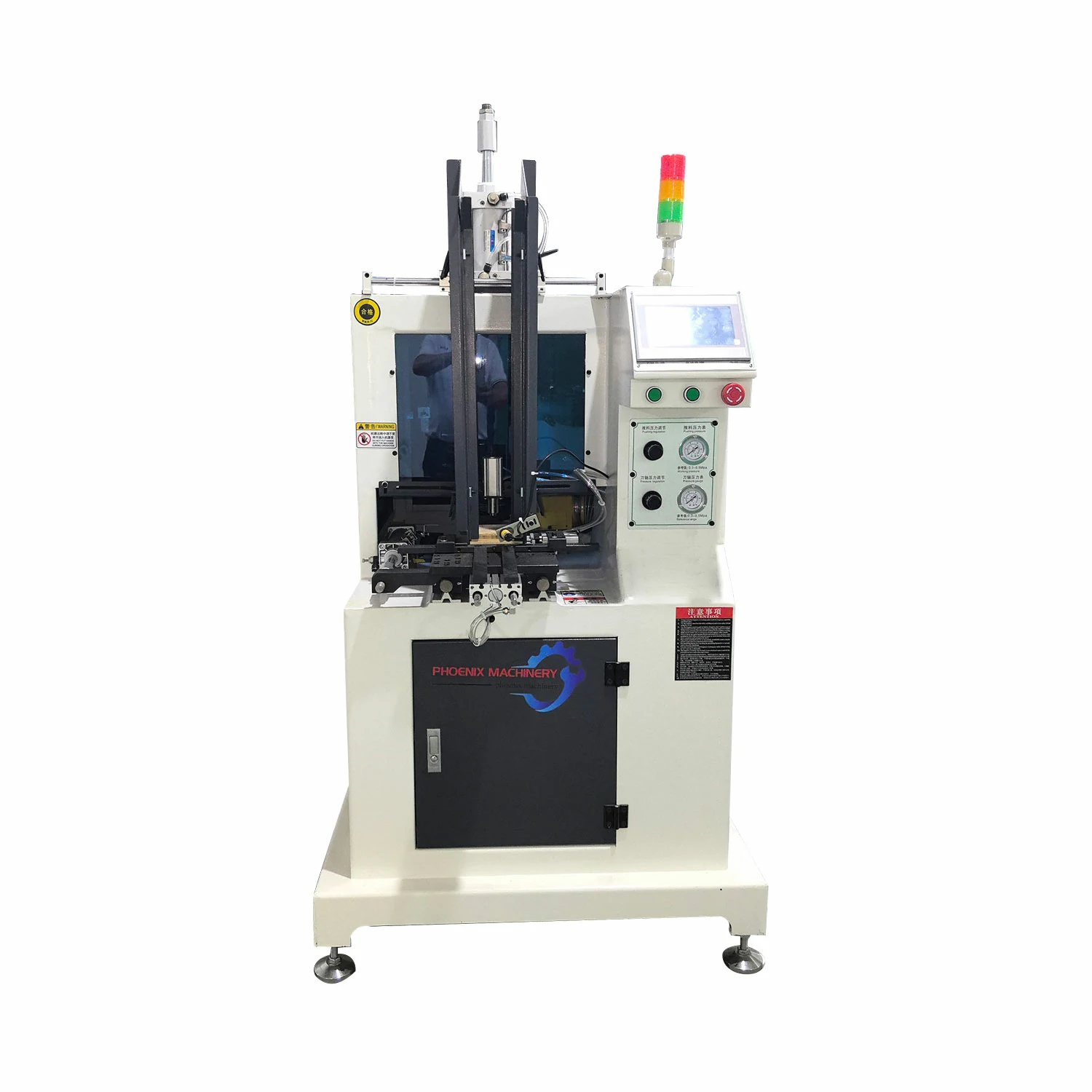

The equipment with high precision push platform pushing material structure, feeding error can be controlled within 0.5mm range, the use of high precision CNC drive two-axis system, CAD.dxf format direct graphic input, no need for abrasive production, equipment with three-phase asynchronous motor more powerful power, greater cutting thickness, The processing range is wider, the tool diameter of the equipment can be used 10-120mm interchangeable equipment is simple to operate, truly realize the fool operation, environmental protection, safety and efficiency.

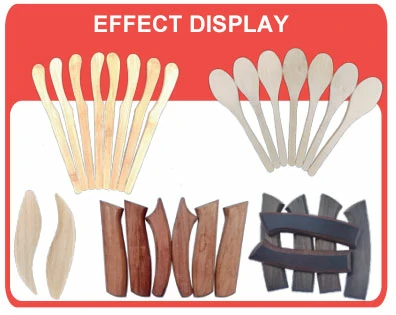

The equipment is suitable for: bamboo cover, wooden plate, wooden dish, wooden handle, bamboo knife handle and wooden comb.
| Automatic copying milling | MX7203L |
| Machining length | 30-200MM |
| Machining width | 10-150MM |
| Machining thickness | 5-50MM |
| Wheel Diameter | 100mm |
| rotation speed | 10800r/min |
| Spindle diameter | 25.4/30mm |
| Overall power | 7.5Kw |
| size | 1100*900*1750mm |
| Weight | 580Kg |
