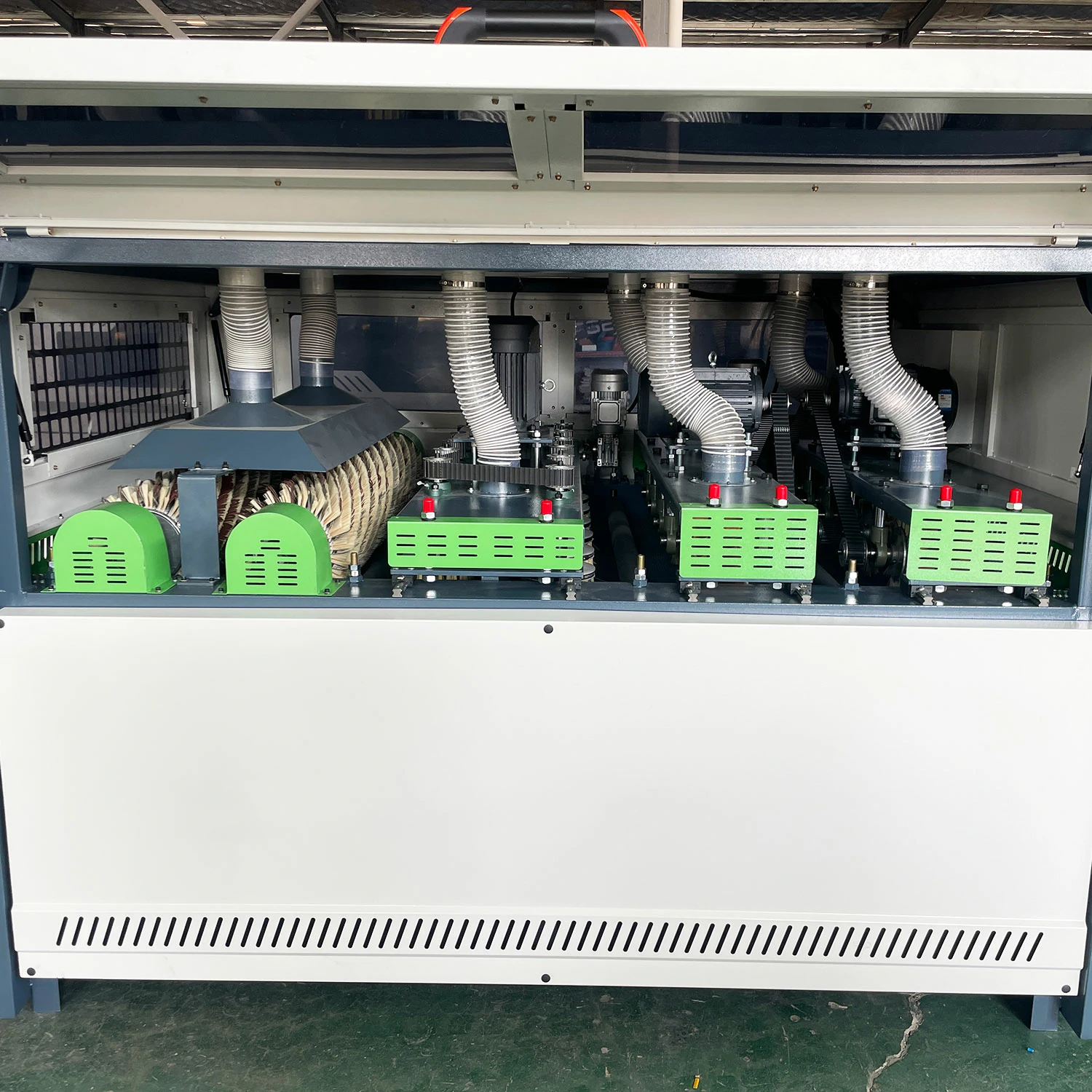

1、This equipment uses sandcloth strips, sisal hemp, and abrasive rollers as abrasives to polish the sharp edges, surface burrs, and painted edges of the workpiece.
2、It is specially designed and exclusive for foreign market by us,which is multifunction but favourable price.
3、It is mainly used for the polishing of door panels and primers, including solid wood doors, composite doors, sticker doors, cabinet doors, wardrobe doors, and other door panels, such as PU, paint panels, primer panels, and white stubble workpieces.
| model | PP630-6S | PP1000-6S | PP1300-6S |
| max working width | 630mm | 1000mm | 1300mm |
| short cylindrical brushes （Lengthway brush）motor |
1.5KW | 1.5KW | 1.5KW |
| disc brushes motor | 1.5KW | 1.5KW | 1.5KW |
| long cylindrical brushes motor | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 |
| Convery belt motor | 0.75KW | 0.75KW | 1.5KW |
| Lifting motor | 0.37KW | 0.37KW | 0.37KW |
| Oscillating motor | 0.55KW*2 | 0.55KW*2 | 0.55KW*2 |
| short cylindrical brushes （Lengthway brush） |
3+2 PCS | 4+3PCS | 5+4PCS |
| disc brushes | 4+3 PCS | 5+4PCS | 6+5PCS |
| long cylindrical brushes | 2 PCS | 2 PCS | 2 PCS |
| min working length | 320mm | 320mm | 320mm |
| working thickness | 10-100mm | 10-100mm | 10-100mm |
| feeding speed | 10-30m/min | 10-30mm/min | 10-30mm/min |
| total power | 8.2kw | 8.2kw | 8.97kw |
| air pressure | 0.6mpa | 0.6mpa | 0.6mpa |
| Size | 2900*1300*1850mm | 2900*1650*1850mm | 2900*1800*1850 |
| Net weight | 1100kg | 1500kg | 1800kg |
