Feature:
1. The machine adopts welded steel, after quenching, good stability. Imported conveyor belt, good reliability, durability.

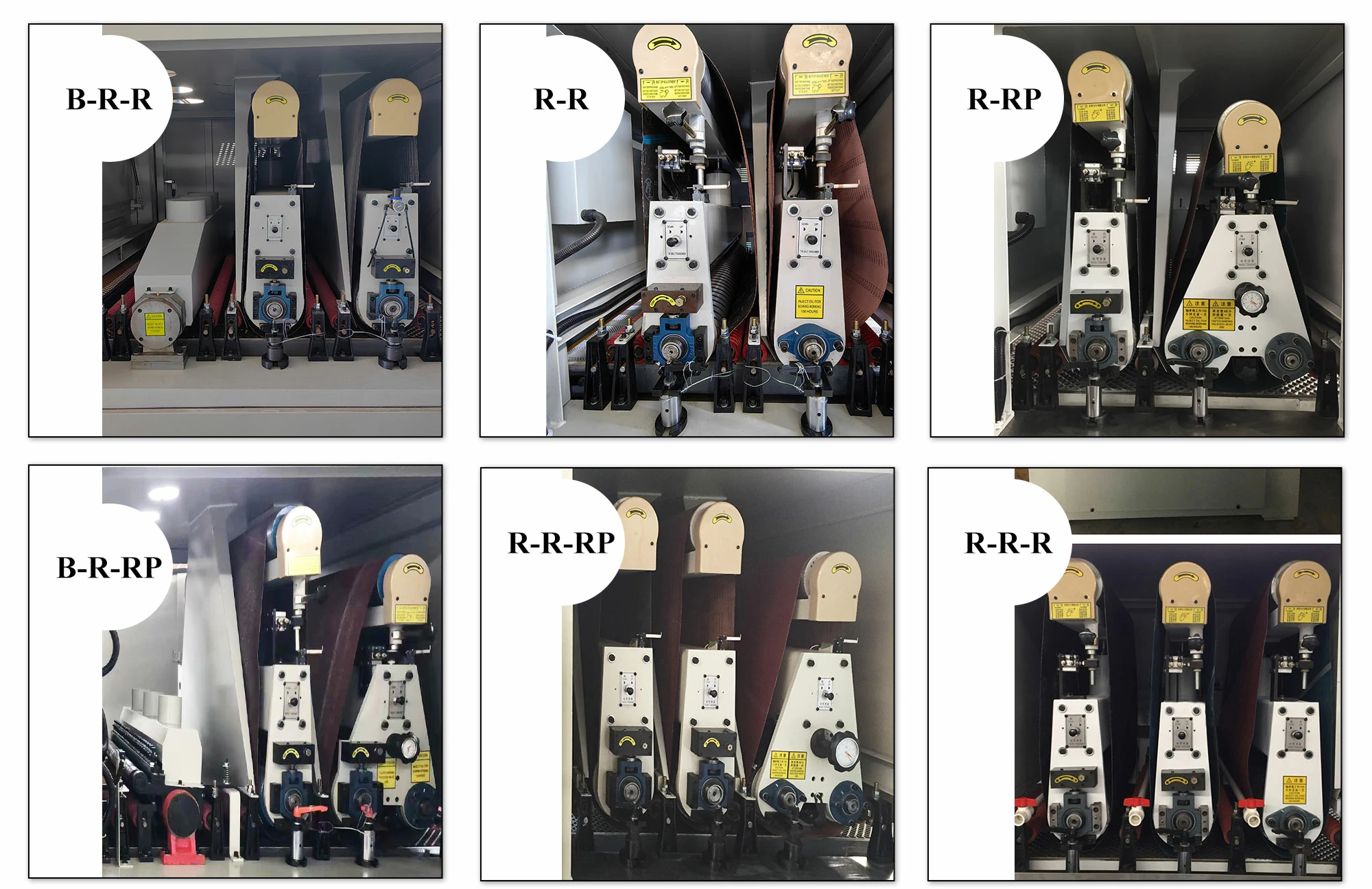

2. The series uses the beam barrel and the beam seat structure, good stability. convenient maintenance.
3. Belt tensioning cylinder adopts cast iron processing, tensile strength is great, good stability. Conveyor belt adjusting
cylinder adopts 63×20 cylinder, large power, good stability.
4. Active roll stigmas are bold, and after quenching, ensure the stability and durability of the driving roller.
5. Thickness displaying table using photoelectric sensing head, high precision, good stability under complex environment.

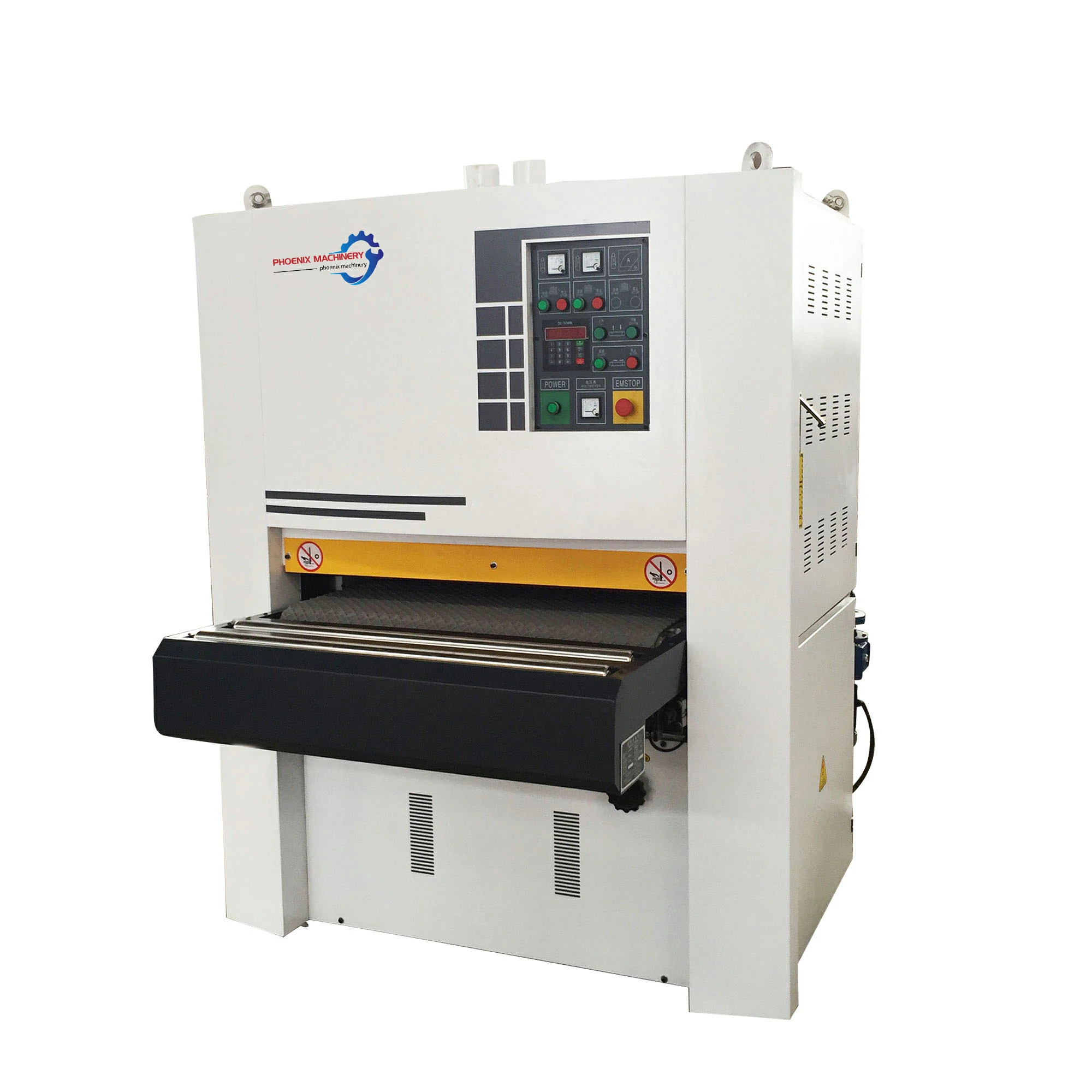

| Model | R-RP630 | R-RP1000 | R-RP1300 |
| Max.working width | 630mm | 1000mm | 1300mm |
| The shortest processing length | 500mm | 500mm | 500mm |
| Processing thickness | 3-110mm | 3-110mm | 3-110mm |
| Converyor speed | 6-30/min | 6-30/min | 6-30/min |
| Total power | 20.37kw | 35.37kw | 63.37kw |
| First sand frame motor power | 11kw | 18.5kw | 37kw |
| Second sand frame motor power | 7.5kw | 15kw | 22kw |
| Conveyor motor wattage | 1.5kw | 1.5kw | 4kw |
| Lifting motor power | 0.37kw | 0.37kw | 0.37kw |
| First sand frame steel roller diameter | 190mm | 190mm | 240mm |
| Second sander roller diameter | 190mm | 190mm | 210mm |
| Abrasive belt size | 650x1920mm | 1020x2000mm | 1330*2200mm |
| Working pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Dust collection | 8000m³/h | 8000m³/h | 9600m³/h |
| Outline dimension | 1900x1200x2100mm | 1900x1600x2100mm | 2700*2100*2100mm |
| Weight | 1200kg | 2000kg | 3300kg |
