Suitable for flat workpieces such as panel furniture, flat doors, solid wood composite flooring, cabinet side panels, handicrafts, bamboo and wood curtains, calcium silicate boards, glass magnesium boards, cement fiber boards, etc. When supporting wiring operations, the primer sanding or wood veneer fine sand after primer coating is applied.
This machine has three commonly used models with a processing width of 630/1000/1300, and other sizes can be customized.

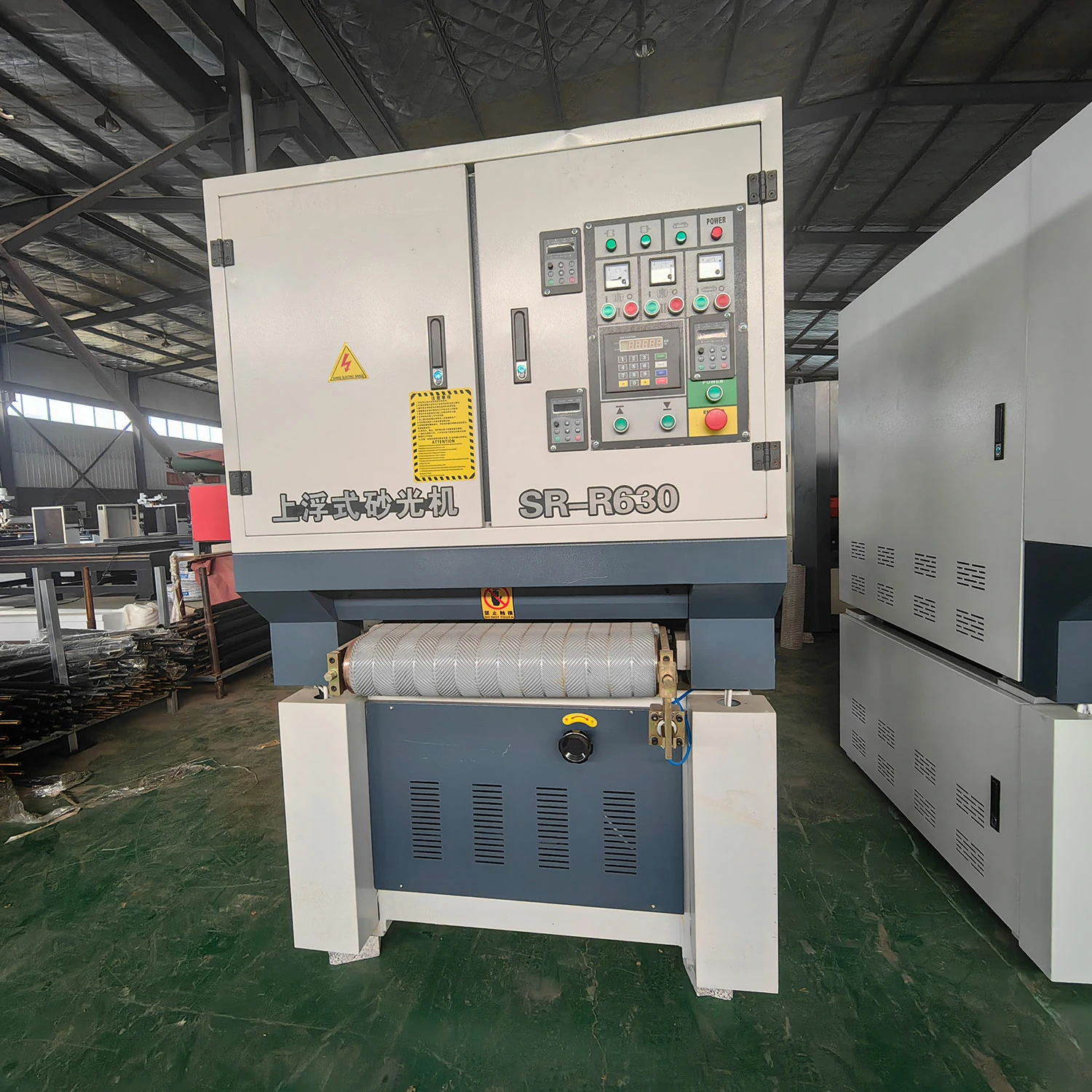

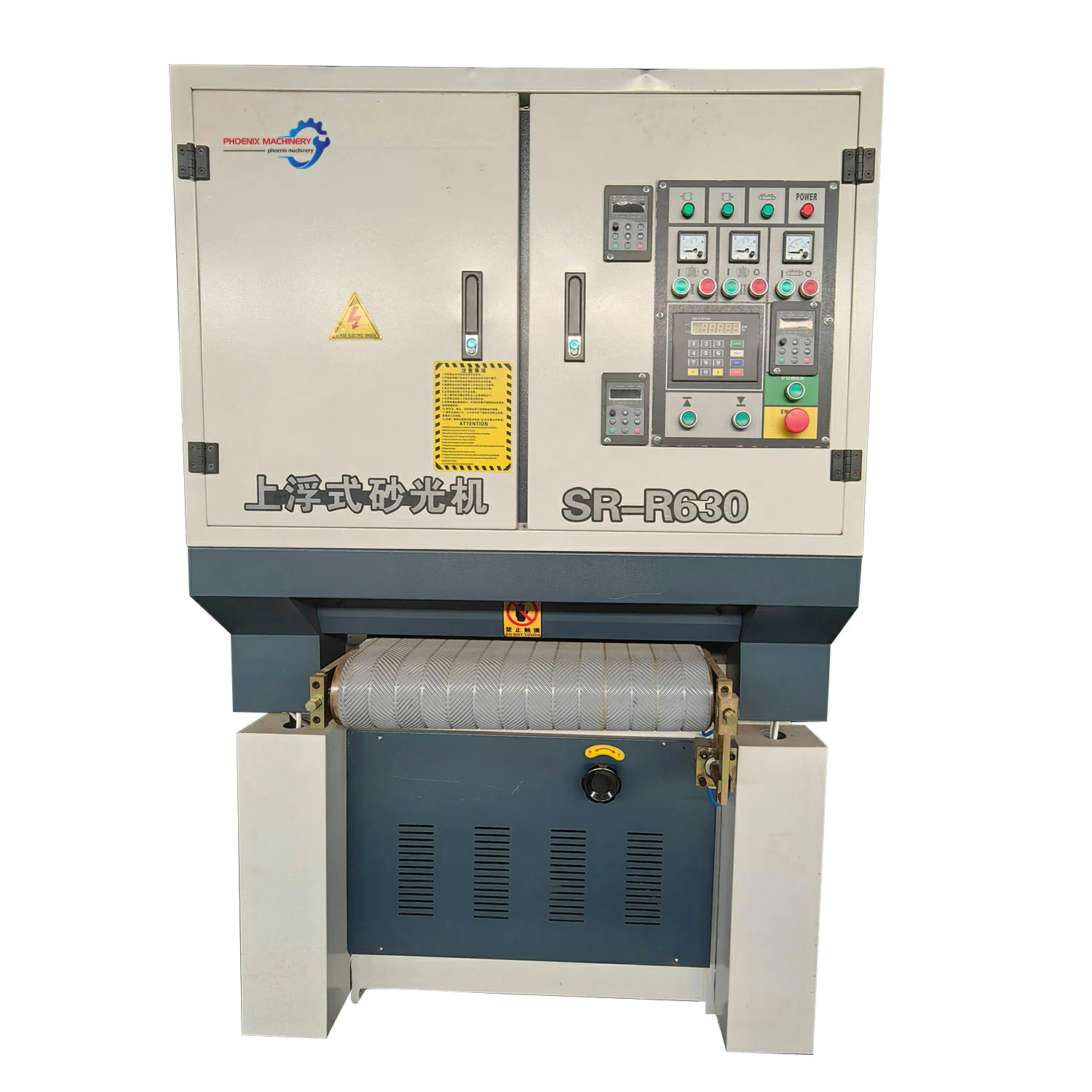

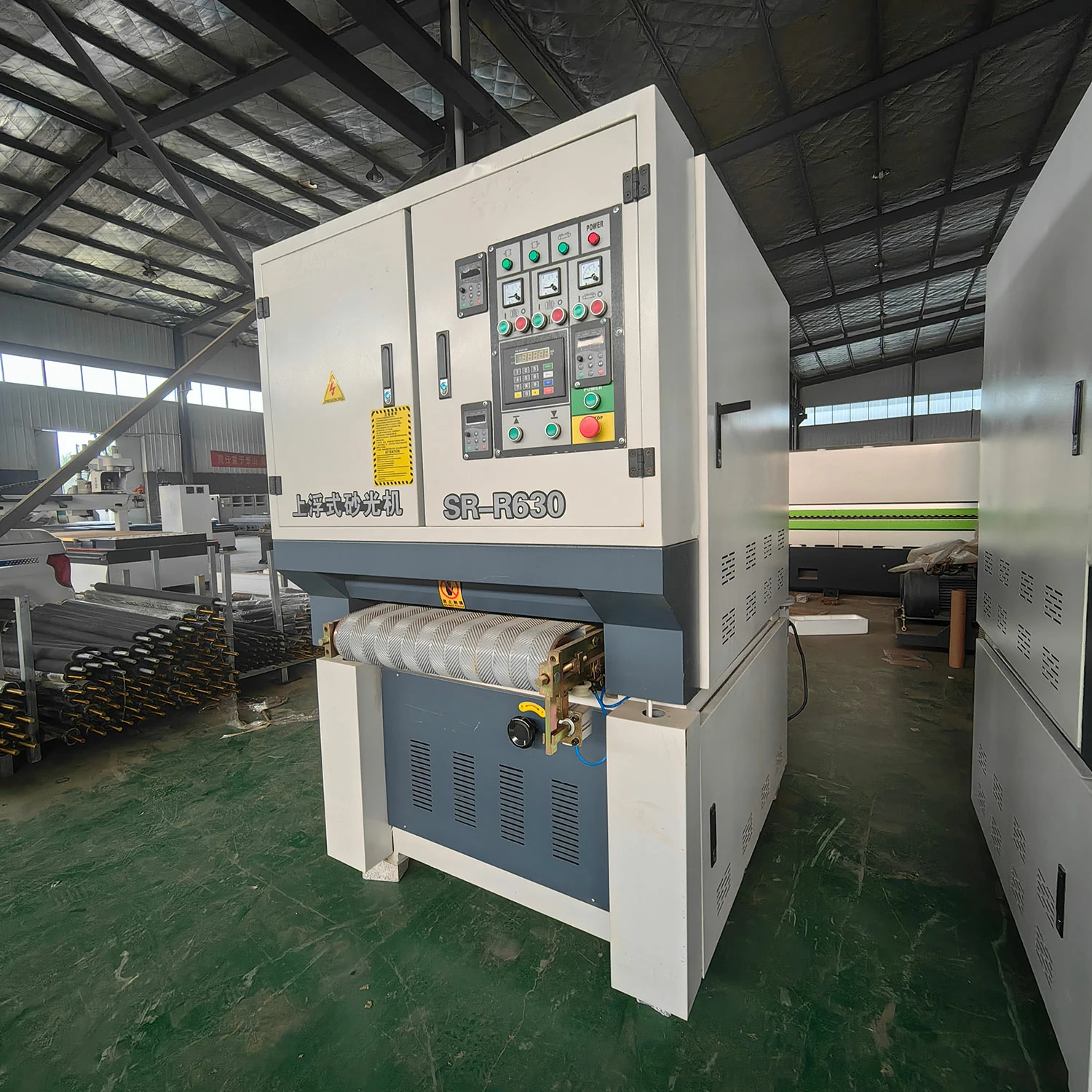

| Floating primer sanding machine model | SR-R630 | SR-R1000 | SR-R1300 |
| Max.Working width | 630 | 1000 | 1300 |
| Min.Working length | 280 | 280 | 280 |
| Working thickness | 1-110mm | 1-110mm | 1-110mm |
| Working air | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Belt speed | Frequency control | Frequency control | Frequency control |
| Feeding speed | 5-30m/min | 5-30m/min | 5-30m/min |
| First roller size | 190mm | 190mm | 240mm |
| Second roller size | 190mm | 190mm | 240mm |
| Belt size | 650*1900 | 1020*2000 | 1320*2200mm |
| Motor | 12.47kw | 16.87kw | 26.55 |
| Overall dimensions | 1100*1600*2200 | 1500*1600*2200 | 2200*2700*2000 |
| Weight | 1400kg | 1700kg | 3100kg |
