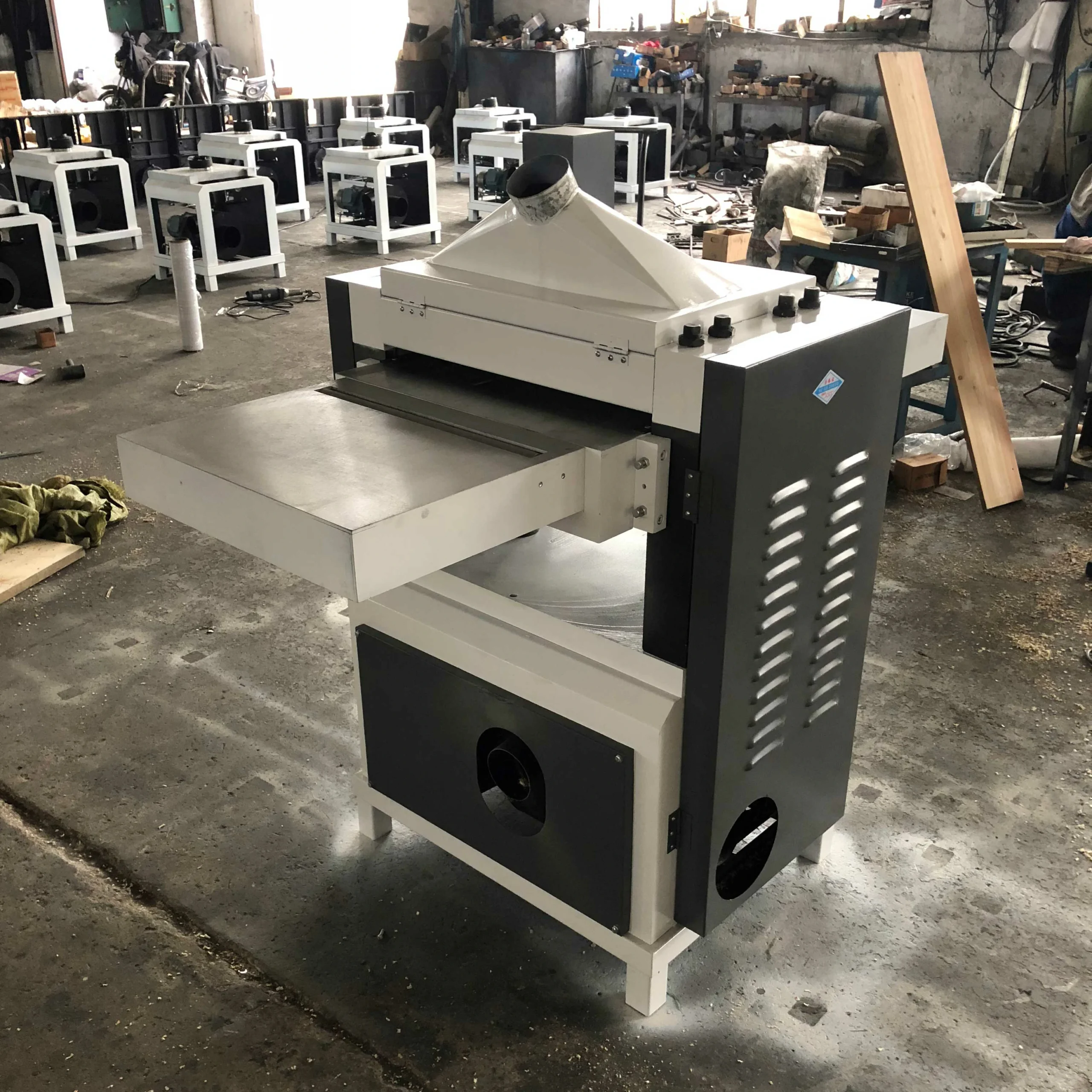

Woodworking Machinery Heavy Duty Wood Industrial Double-sided High-speed Press Planer

描述
用户评价 (0)

描述

two feeding speed,it is convenient for customers to adjust it
the worktable is equiped two carrier rollers
the high speed main spinle is equipped with SKF high speed bear,which make the running of main spindle more stable.

Specification	MB202E	MB203E	MB204E	MB205E	MB206E
Max.working width	200MM	300MM	400MM	500MM	600MM
Max.working thickness	150MM	150MM	150MM	150MM	150MM
Max.planing depth	Upper blade 3mm Lower blade 2mm	Upper blade 3mm Lower blade 2mm	Upper blade 3mm Lower blade 2mm	Upper blade 3mm Lower blade 2mm	Upper blade 3mm Lower blade 2mm
Minimum.working length	170MM	170MM	170MM	170MM	170MM
Spindle speed	7800r/min	7800r/min	7800r/min	7800r/min	7800r/min
Main spindle power	3KW	Upper motor 3KW Lower motor 2.2KW	Upper motor 3KW Lower motor 3KW	Upper motor 4KW Lower motor 3KW	Upper motor 4KW Lower motor 4KW
Dianeter of spindle	80MM	80MM	80MM	80MM	80MM
Feeding speed	7 or 9 m/min Two speed switchable	7 or 9 m/min Two speed switchable	7 or 9 m/min Two speed switchable	7 or 9 m/min Two speed switchable	7 or 9 m/min Two speed switchable
Weight of Machine	280KG	340KG	370KG	480KG	550KG
Machine size	65014001280MM	75014001280MM	87014001280MM	95014001300MM	105014001300MM
