MB450B

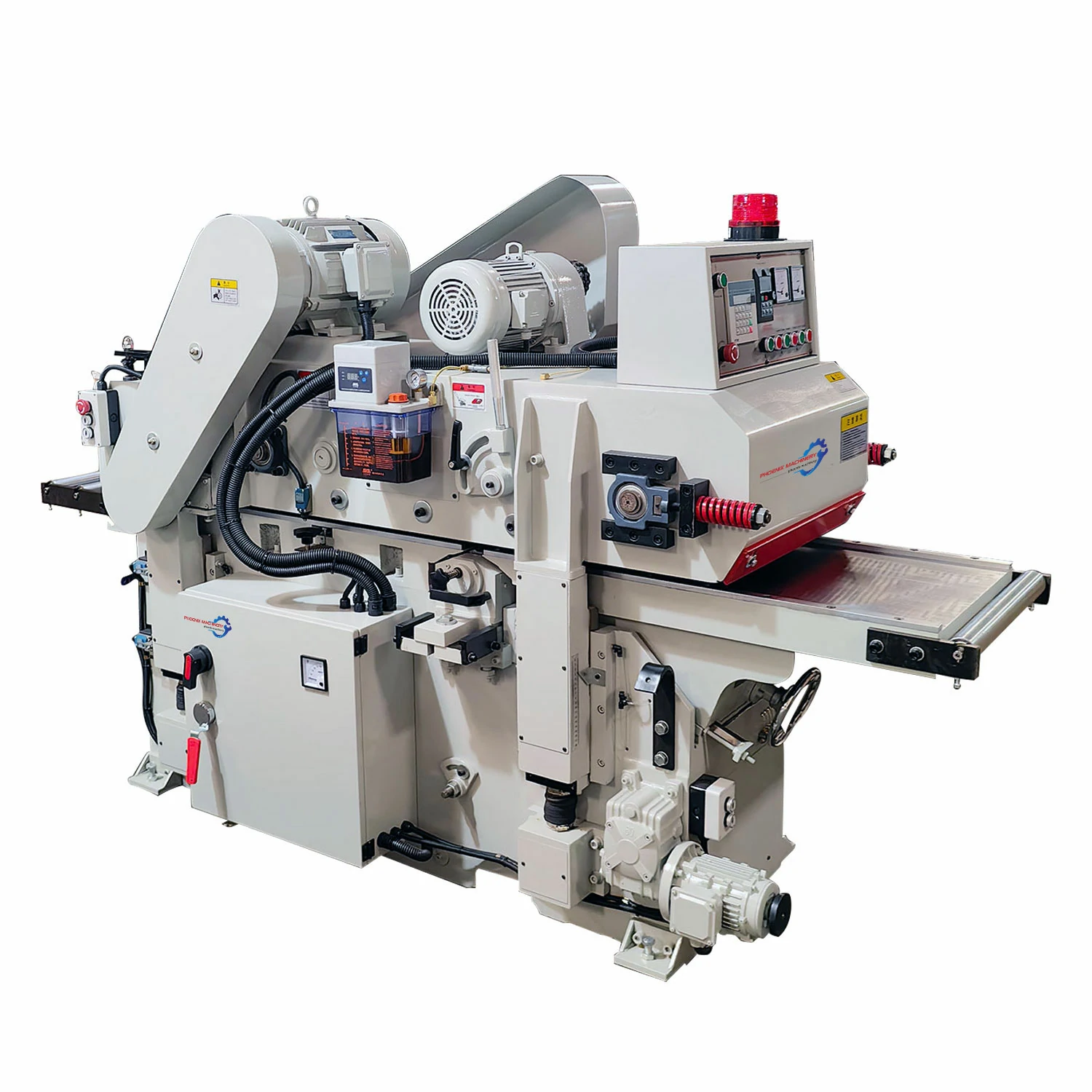

MB450B Double Side Planer Wooden Board MDF Heavy Duty 2 Sides Moulder for Solid Wood

描述

1.The feeding unit can be adjusted upwards and downwards, the elevating range reaches 10mm, so the processing precision can be enhanced with powerful feeding.
2.With driven feeding roller structure, ensuring a stronger and smoother feeding. Also it is equipped with overloading protection mechanism.
3.The main parts such as machine frame and workable etc. are made from aged Cast iron and precisely machined, having the features of high accuracy and good vibration absorption.
4.Equipped with pressure plate which guarantees short workpiece can be smoothly machined, increasing production output.
5.Special speeding adjustment device combining with power torque worm reducer which enables it to select feeding speed according to actual requirement.

Specification parameter   MB450B   MB630B
Max.Workng width   450mm   630mm
Max.Working thickness   180mm   180mm
Min.Working thickness   10mm   10mm
Min working length   280mm   280mm
Cutter knife   54pcs   66pcs
Spindle rotation rate   6800r/min   6800r/min
Feeding speed   7-16m/min   7-16m/min
Top spindle power   7.5kw   11kw
Bottom spindle power   5.5kw   7.5kw
Feeding motor power   2.2kw   3.7kw
Eleating motor power   0.37kw   0.75kw
Total power   15.57kw   22.95kw
Overall dimensions   2350x1268x1680mm   2350x1450x1680mm
Total Weight   2300kg   2500kg
