This configuration is very high:
- The length of the large ruler is 190mm, and the middle ruler template seat is a martensitic structure with fine adjustment function, which is more accurate.
- The auxiliary workbench is also larger, with a sliding table width of 390mm, making it smoother to use.
- Electric lifting saw blade, angle digital display.
- The chassis is equipped with a door opening and power-off function for greater safety, and the electrical wiring is routed through a cable tray, which is more aesthetically pleasing.

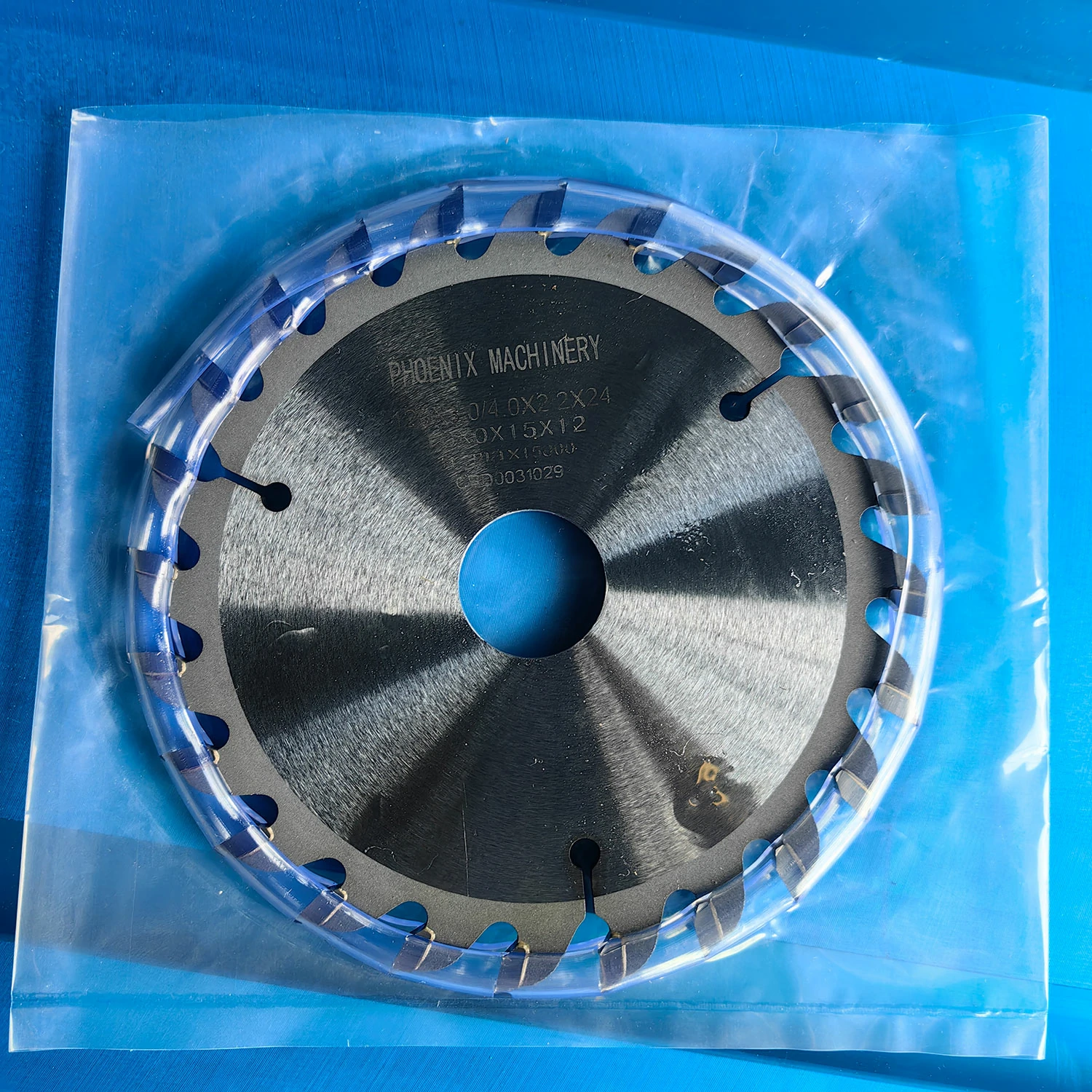

- Equipped with top quality imported saw blades (priced at 400 RMB per set, not ordinary)
| PANEL SAW MODEL | MJ3200 |
| Max cutting length | 3200mm |
| Max cutting width | 3200mm |
| Sliding table length | 3200mm |
| Sliding table width | 390mm |
| Main saw blade diameter | 300mm |
| Scoring saw blade diameter | 120mm |
| Main saw spindle speed | 4500-6000rpm |
| Scoring saw spindle speed | 9000rpm |
| Main spindle diameter | 30mm |
| Scoring spindel diameter | 20mm |
| Tilting saw blade | 45°-90° |
| Height of cut at 45° | 45mm |
| Height of cut at 90° | 70mm |
| Main motor | 5.5KW |
| Scoring motor | 1.1KW |
| Main saw blade lifting motor | 0.12KW |
| Angle digital display | Contain |
| Package size | Sliding table: 3300*400*240mm Body: 2150*1130*1130mm |
| Gross weight | 800kg |
