- Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass

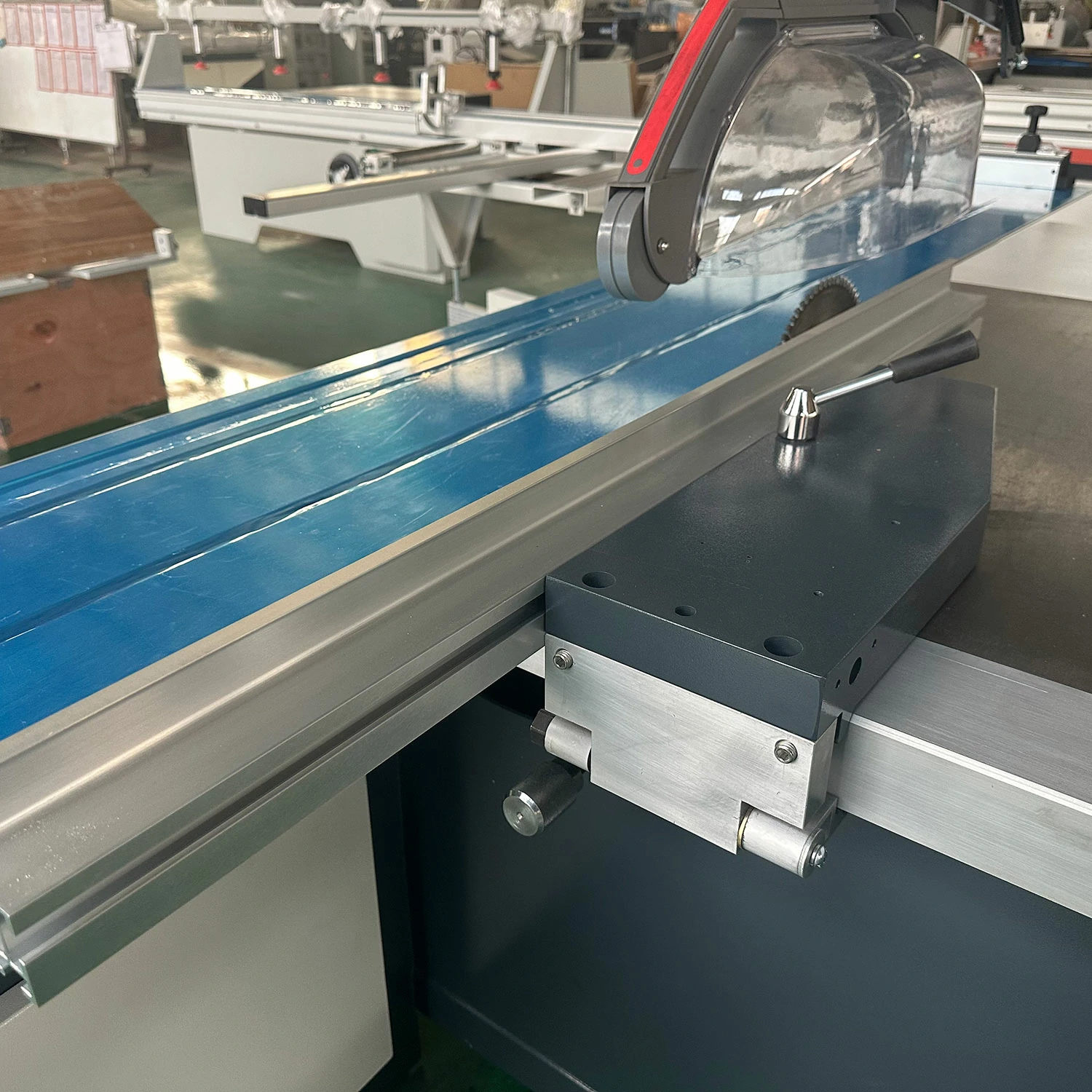

plates and solid wood and others with wood structure and similar hardness.2.Movable table guide track is plating chromium steel balls structure, exact and durable.
3. Made of high-strengh extruded aluminum alloy,movable table is high in strength and won’t bend.
4. With oxidation treatment, movable table surface is beautiful and hardwearing.

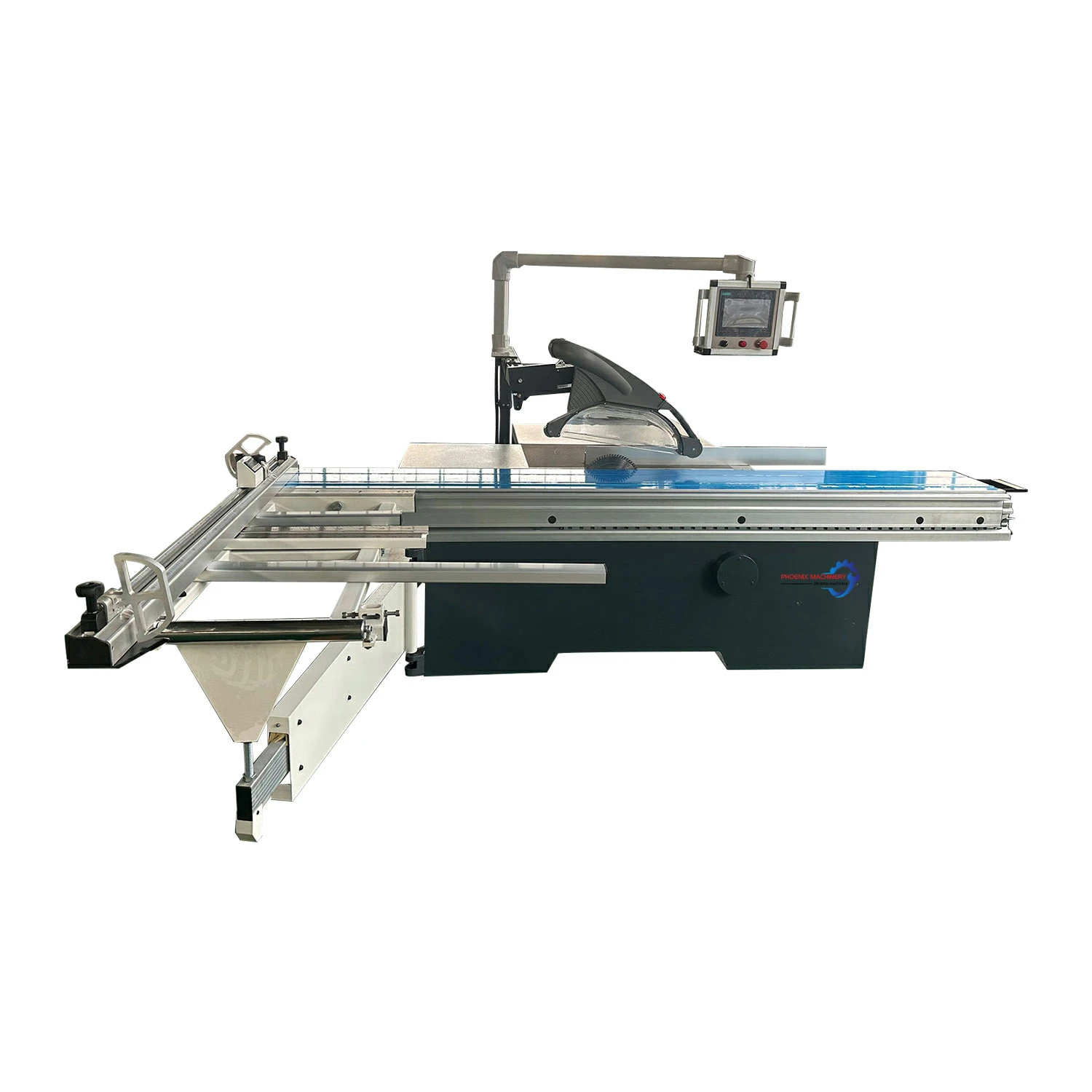

| Model | CNC-6132 |
| Dimension of sliding table | 3200*388mm |
| Gross cut capacity | 3100mm |
| Width of cut between saw blade and rip fence | 1240mm |
| Saw blade diameter | 300mm（250-400mm） |
| scoring saw blade diameter | 120mm |
| Speed of main saw spindle | 4500/6000rpm |
| Speed of scoring saw blade | 7000/8000rpm |
| Tilting saw blade | 0-45 degree |
| Main motor | 5.5kw |
| Scoring motor | 1.1kw |
| Height of cut | 75mm |
| Height of cut 300mm saw blade at 45 degree | 45mm |
| Main spindle diameter | 30mm |
| scoring spindle diameter | 20mm |
| Size | 3350*3350*900 |
| Net weight | 780kg |
| Gross weight(with plywood wooden package) | 860kg |
