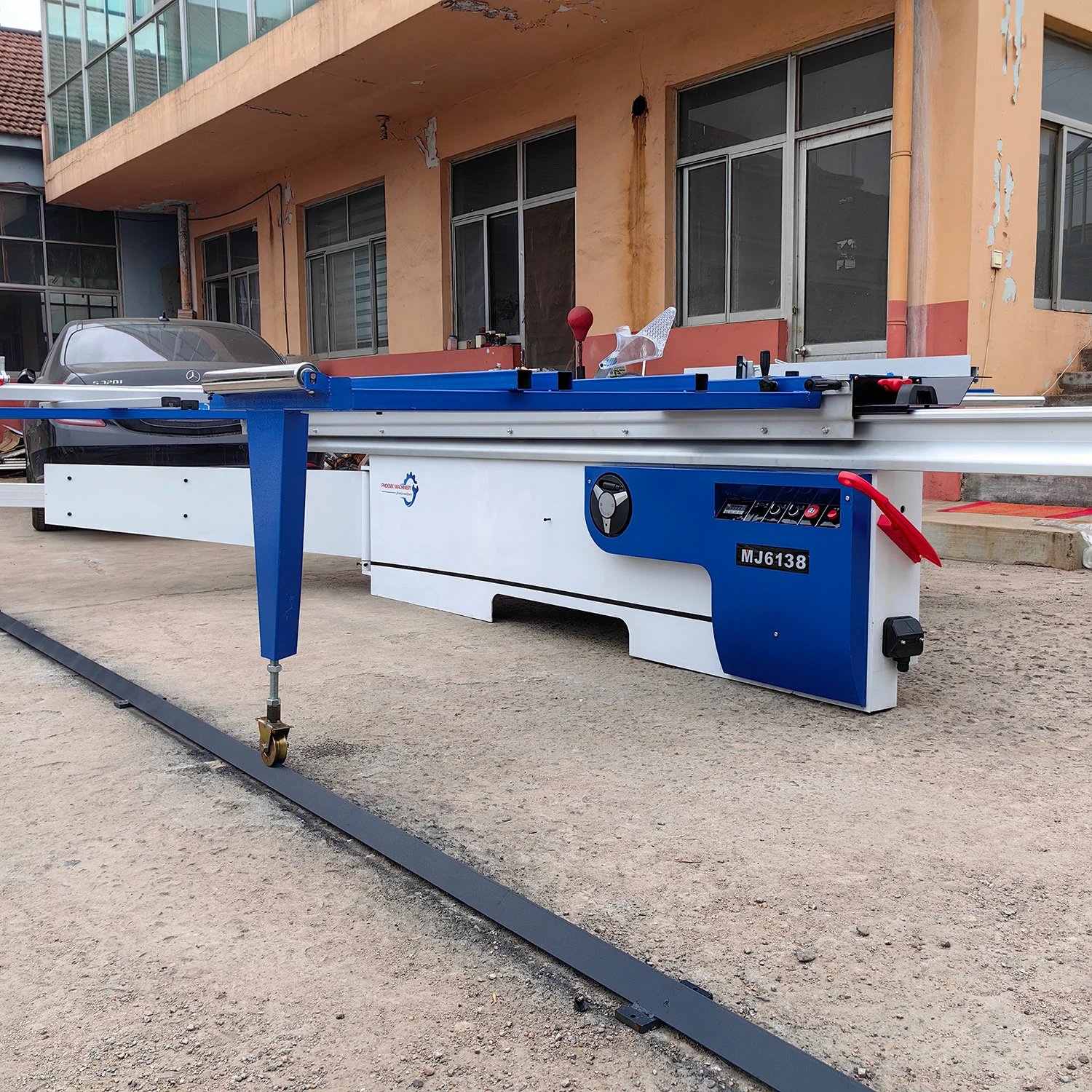

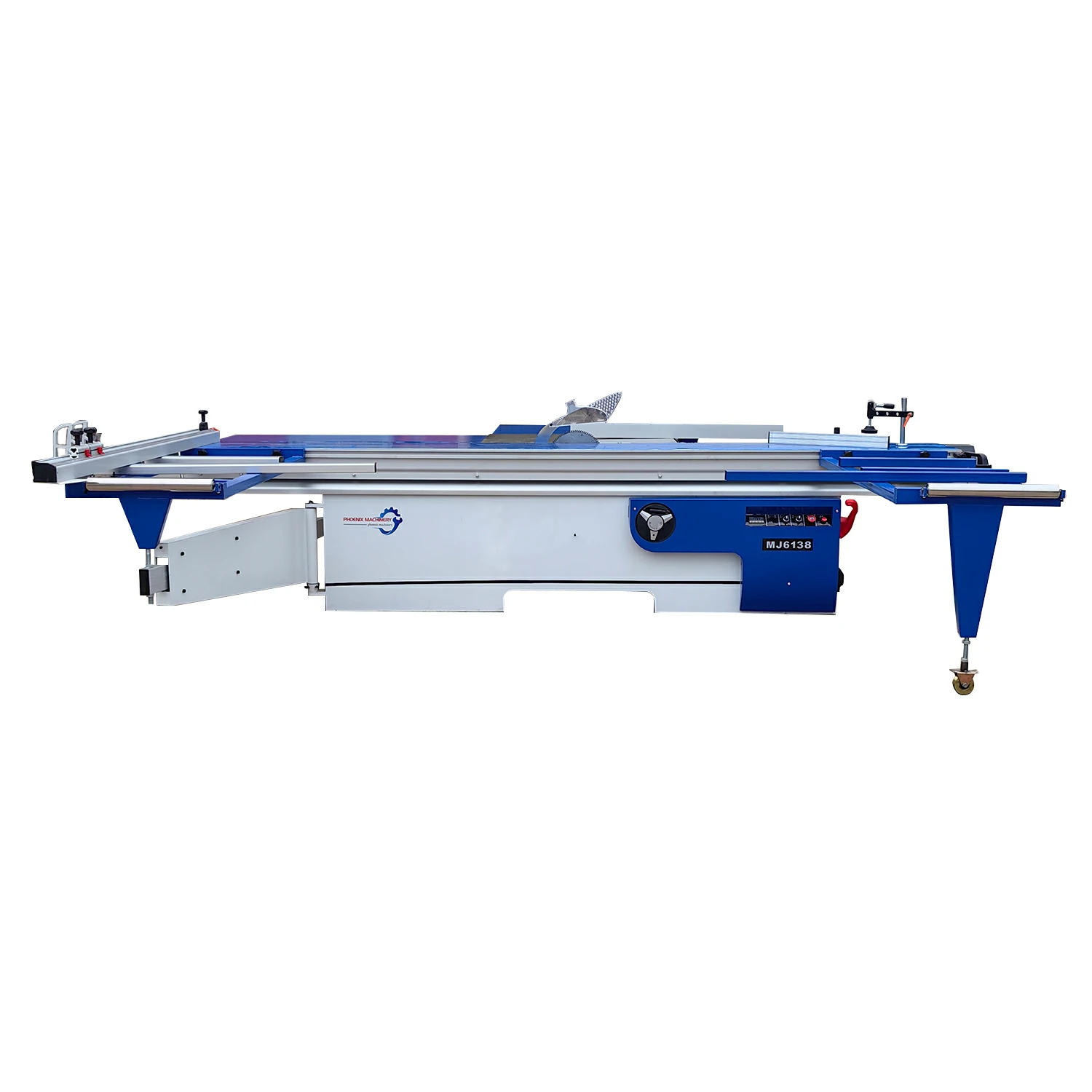

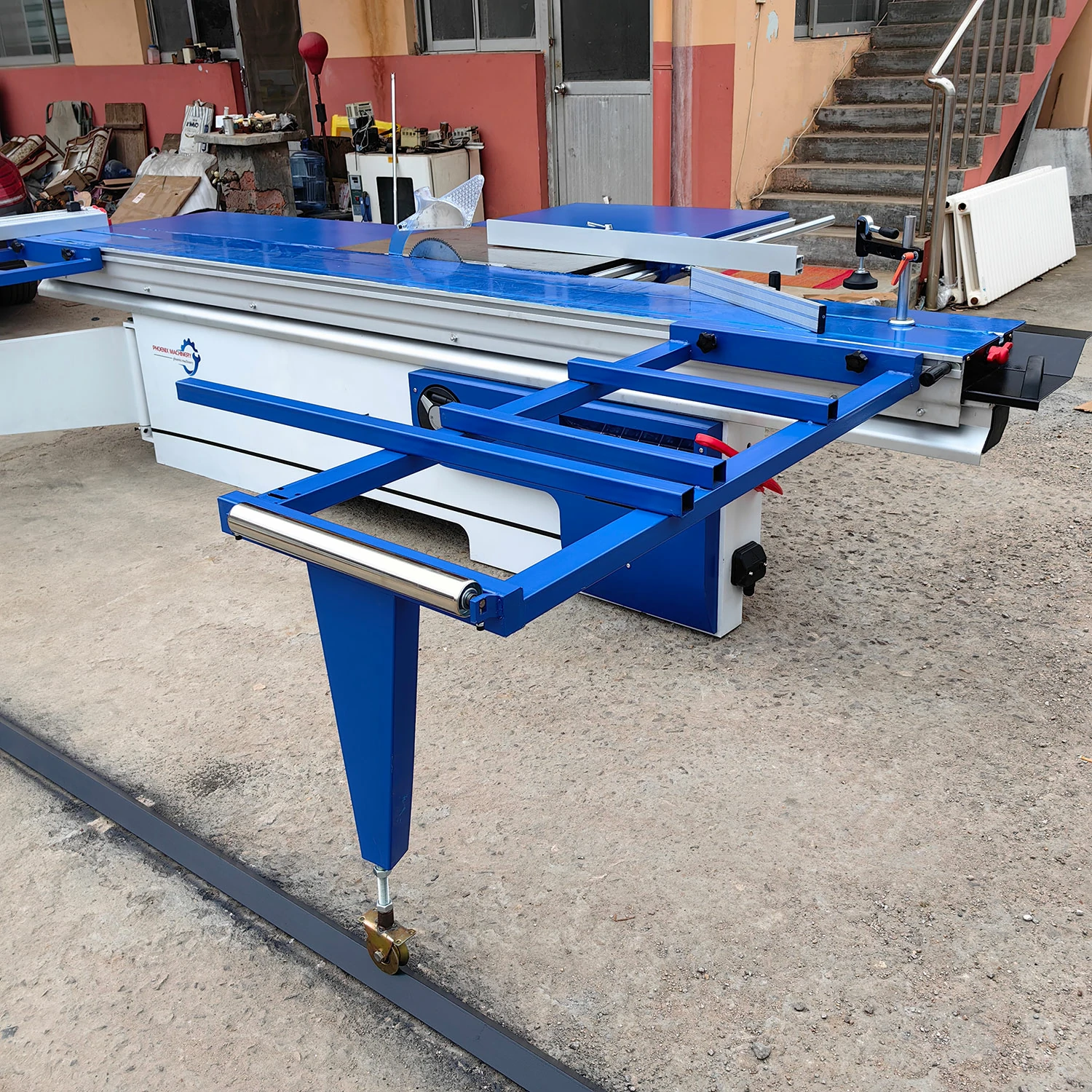

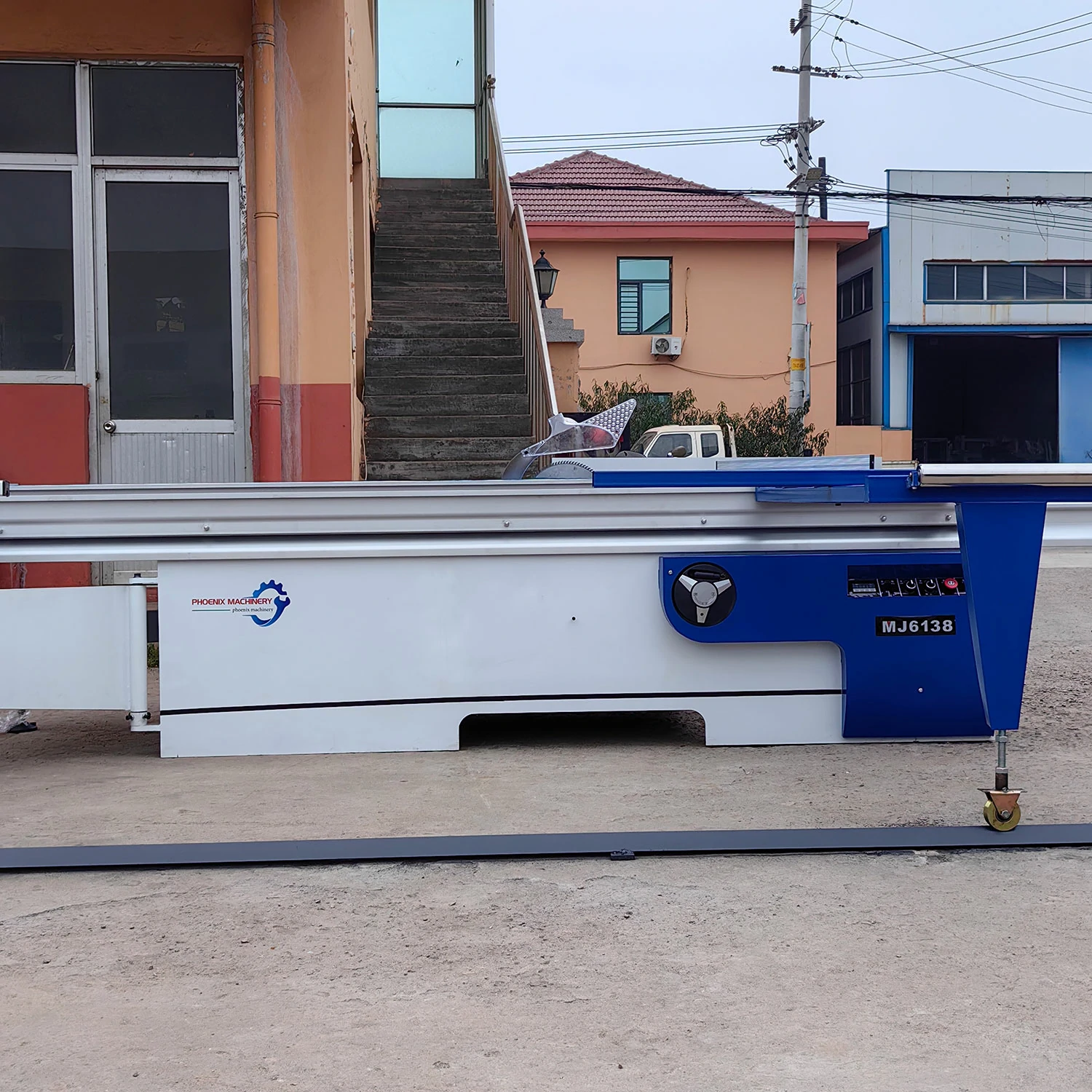

MJ6138

3800mm Customizable Sliding Table Saw For Furniture Double Motor Tilting Blad

Inquire Now
产品类别

Description

The double-layer upper and lower double-round rod guide rail precision push table has extremely high straightness stability, high precision and low noise imported bearings from Japan, no error in the flatness of the cast iron surface grinding table, and pull-out push table with ruler processing plane and hollow The baffle has high positioning accuracy, the chrome-plated main shaft does not rust, the double bearing increases the smoothness of the swing arm, and the swing arm is highly smooth to withstand the gravity. Electrical appliances use genuine contactors and air switches to protect motor operation.

PANEL SAW MODEL MJ6138
Max cutting length 3800mm
Max cutting width 3800mm
Sliding table length 3800mm
Sliding table width 375mm
Main saw blade diameter 250mm-315mm
Scoring saw blade diameter 120mm
Main saw spindle speed 4500/6000rpm
Scoring saw spindle speed 9000rpm
Main spindle diameter 30mm
Scoring spindel diameter 20mm
Tilting saw blade 45°-90°
Height of cut at 45° 65mm
Height of cut at 90° 100mm
Main motor 5.5KW
Scoring motor 1.1KW
Main saw blade lifting motor Excluding
Angle digital display Including
Gross weight 780kg
