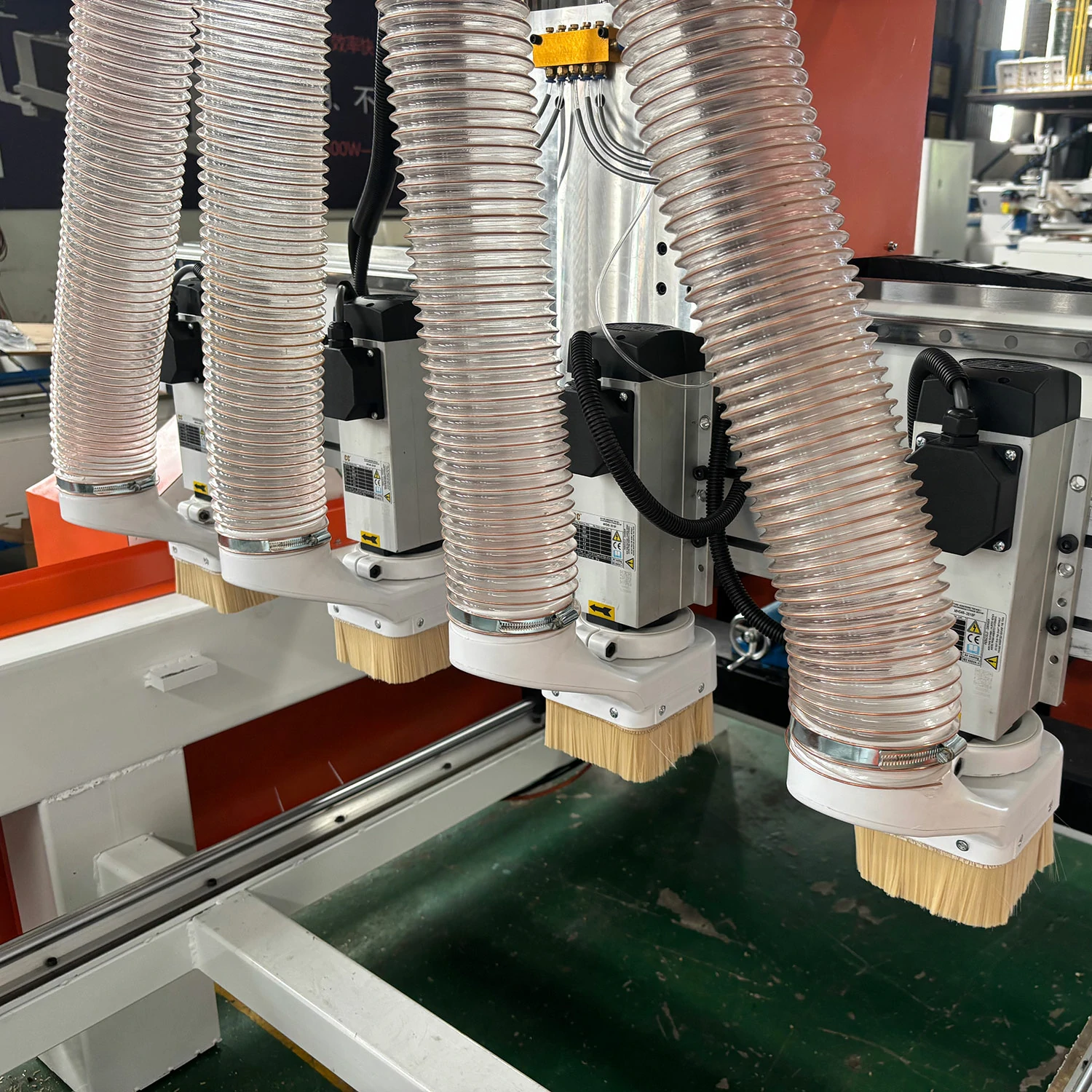

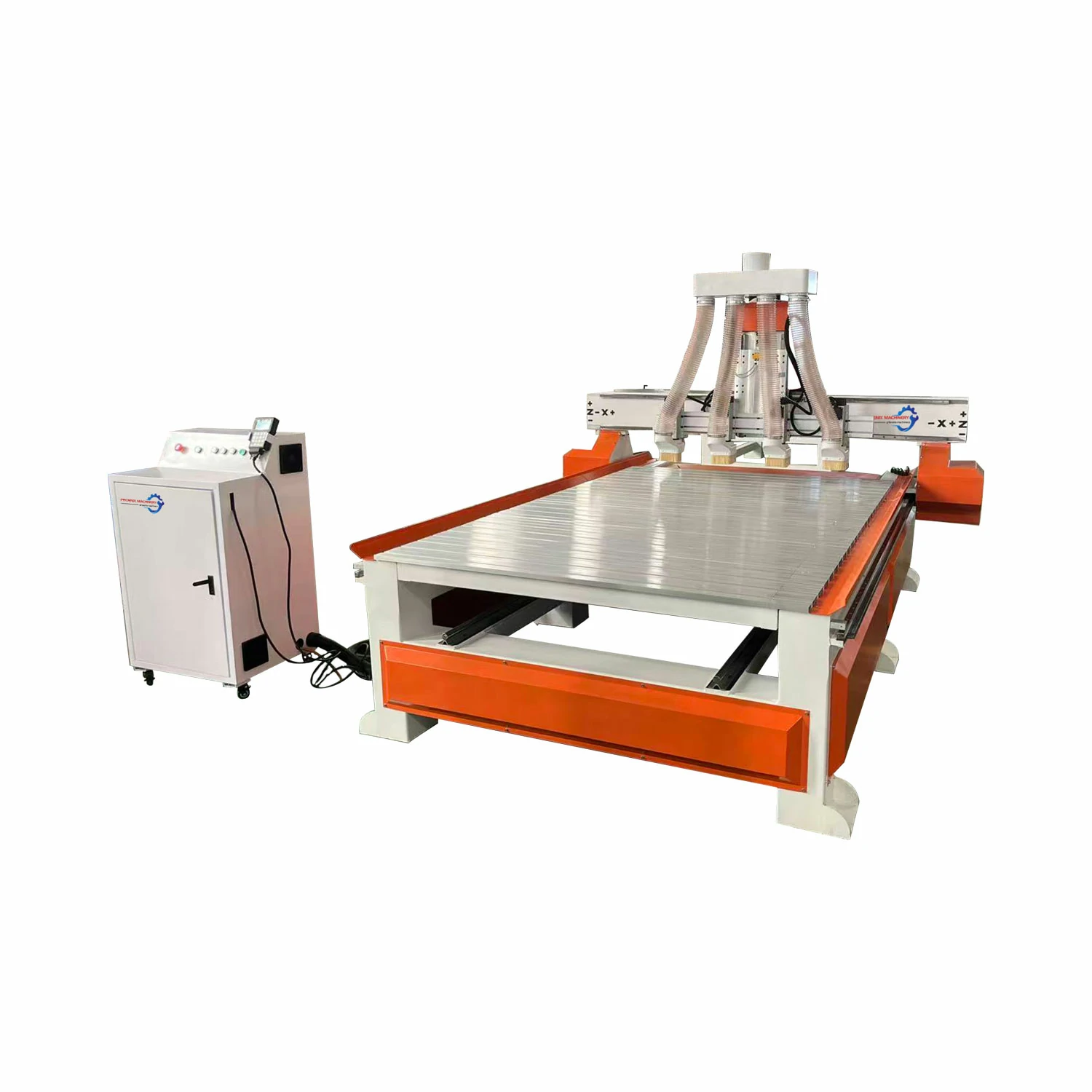

Multi Heads 6/8/10/12 Spindle 4 Axis Router Cylinder Flat Wood Cnc Router Engraving for Table Legs Stair
| Model | PM1325R-4 |
| X, Y, Z working area | 1300*2500*200mm |
| Working area(Customizable) | 1300*2500/1600*2500/1500*3000mm |

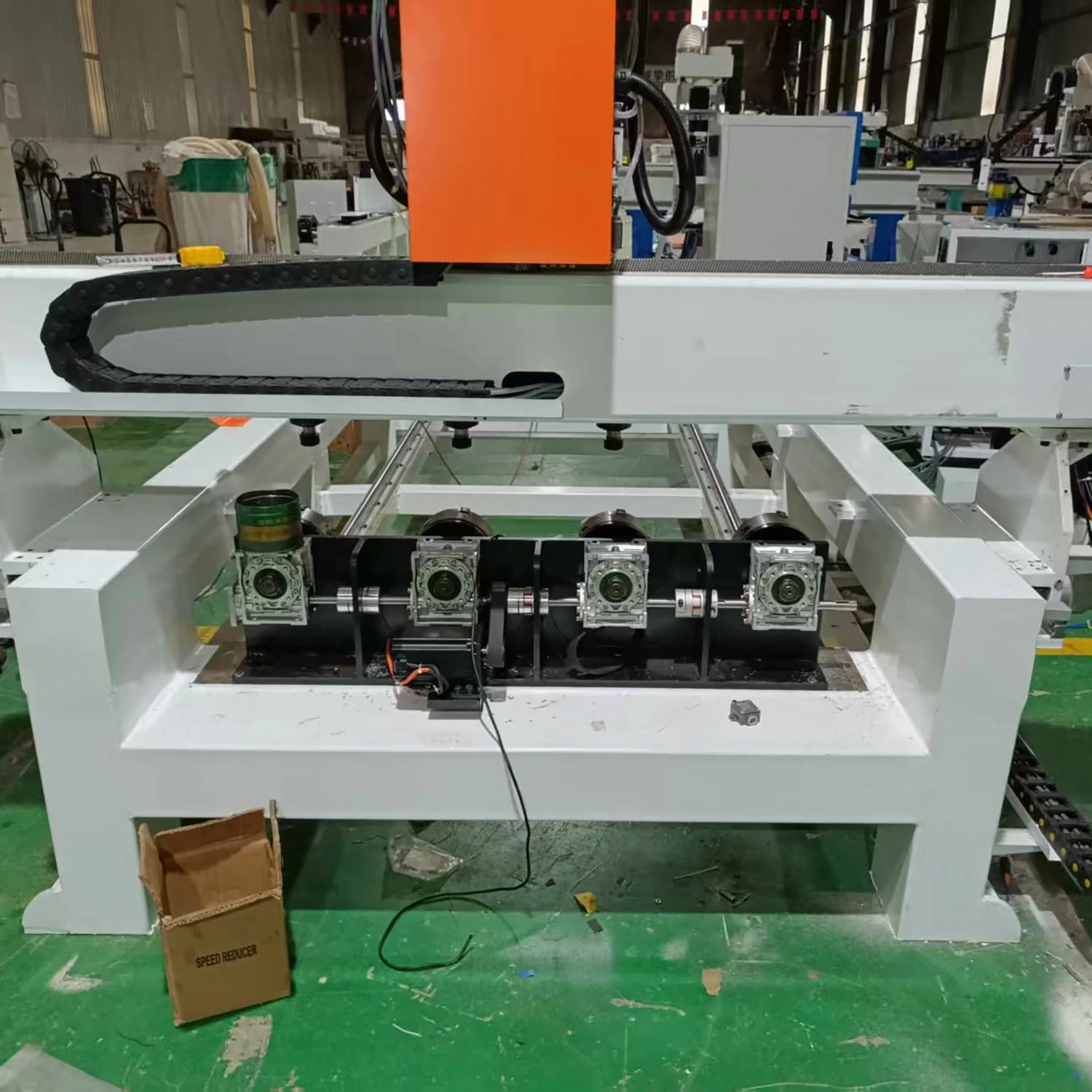

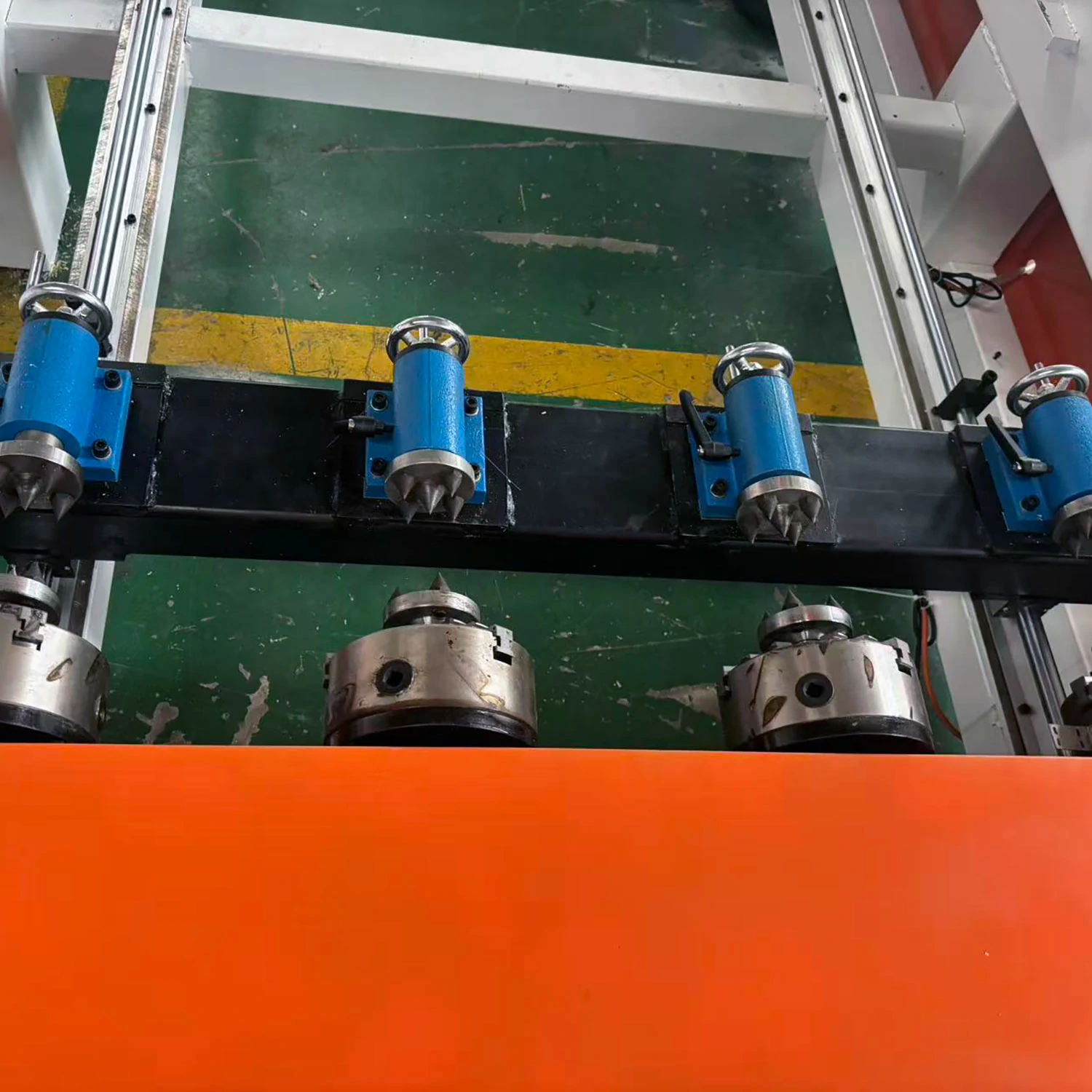

| Rotary axis | Diameter 300mm |
| X,Y Structure | Taiwan linear guide 20mm |
| Z structure | Taiwan linear guide 20mm |
| Motor | Stepper Motor/Hybrid Motor/Servo Motor |
| Spindle power | 3.5kw air-cooling spindle |
| Spindle speed | 18000rpm |
| Inverter | Fuling inverter |
| Max travel speed | 20-25m/min |
| Max working speed | 15m/min |
| Driver | Leadshine 750 |
| Operating system | DSP system / NC studio |
| Working voltage | AC220/380V,50HZ/60HZ |
| Bed structure | Welded steel pipe |
| Table surface | Aluminum profile table with T-slot |
| Fixing method | By clamp |
