It can achieve continuous copy-routing milling, easy operation and safety.

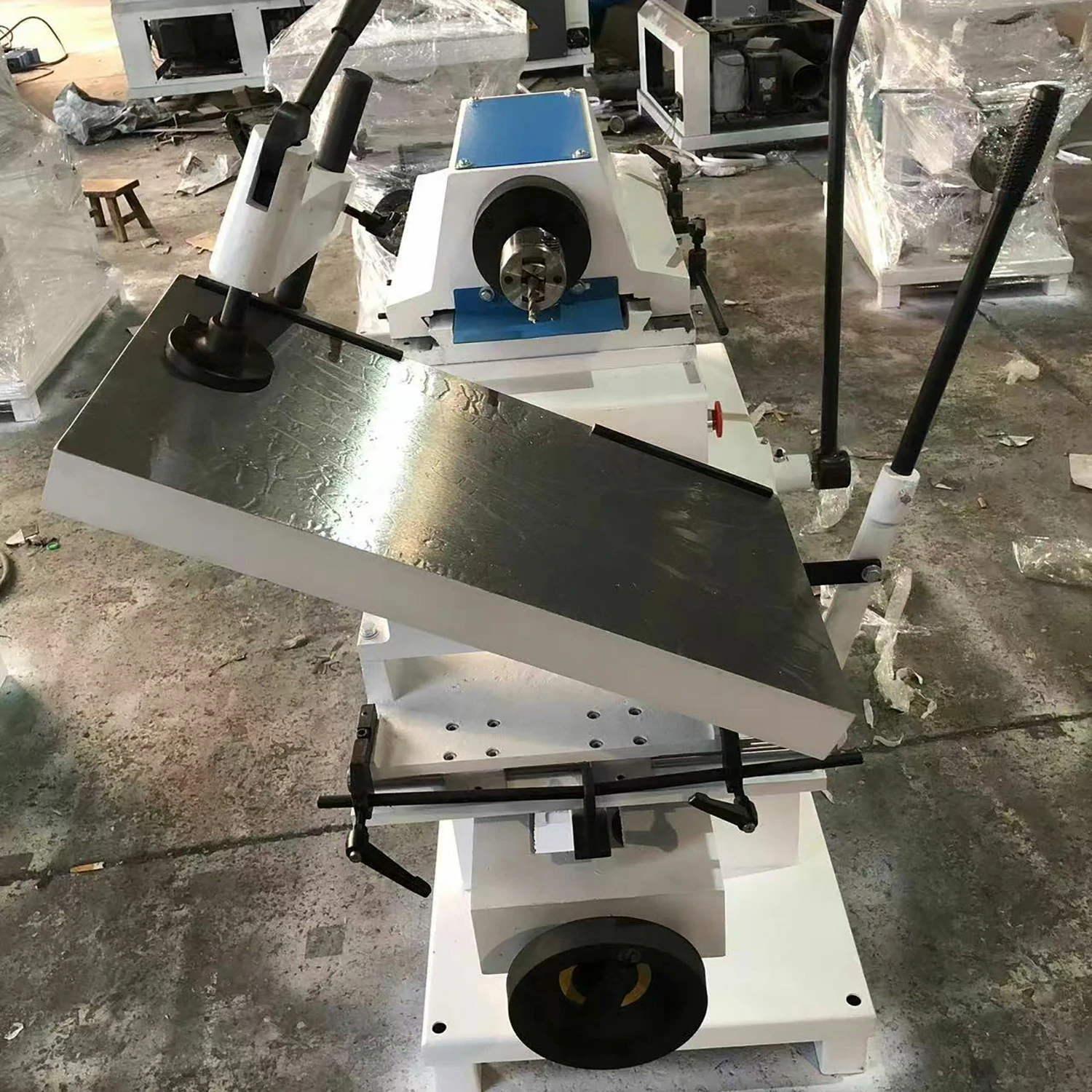

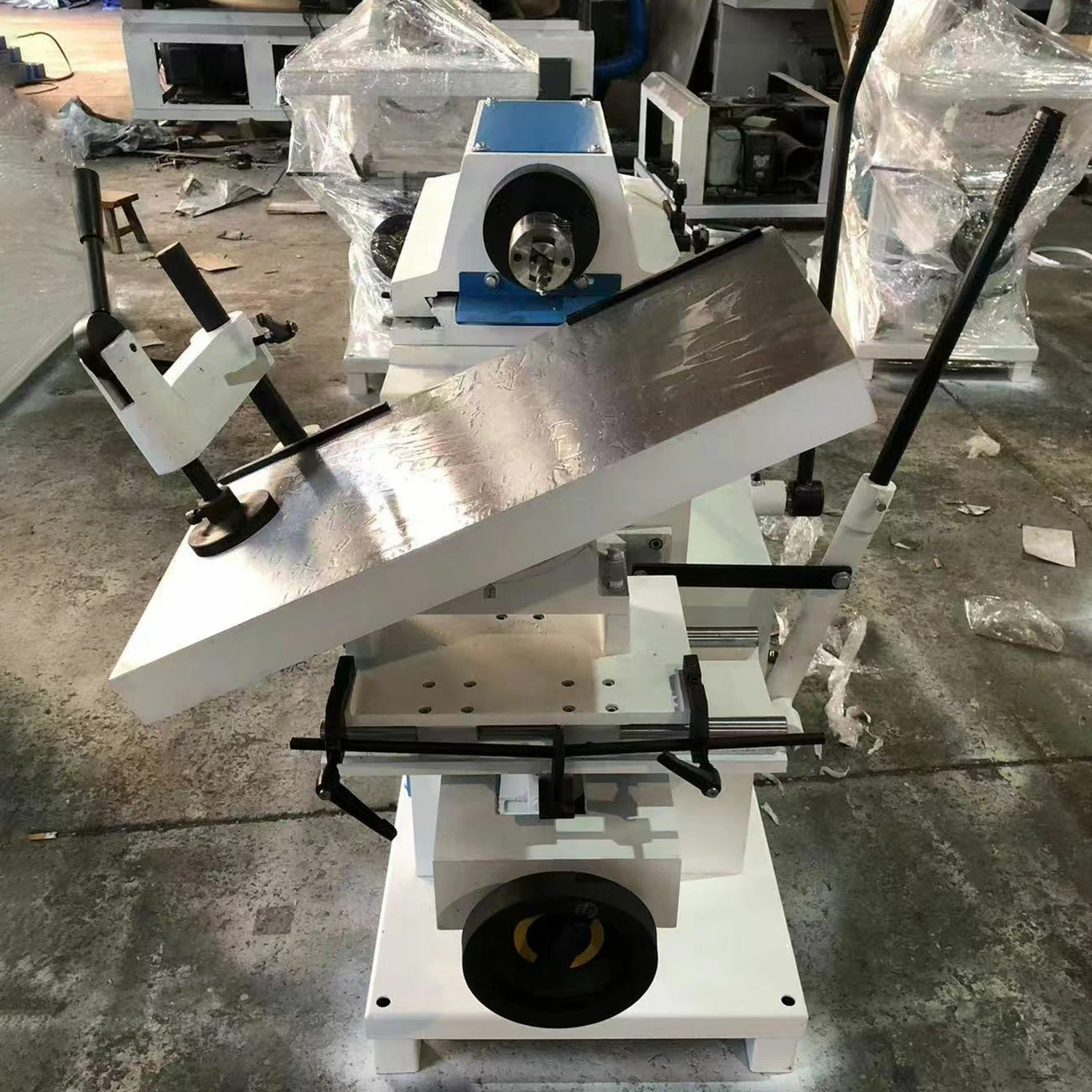

The workbench can be tilted at 30 degrees.It has features of compact structure and small volume, the air pressure drives the clamping.
Used for copy-routing processing various kinds of holes, grooves and water-slots.
| Model | MS302 |
| Max mortising length | 200mm |
| Mortising width | 0-20mm |
| Max workpiece width | 300mm |
| Max mortising depth | 100mm |
| Working table moving height | 160mm |
| Max tilt angle of working table | 30° |
| Spindle speed | 3500r/min |
| Install power | 2.2kw |
| Weight | 200kg |
| Overeall Dimensions | 1183x628x1136mm |
