描述
1.Double table，high speed spindle，high efficiency.

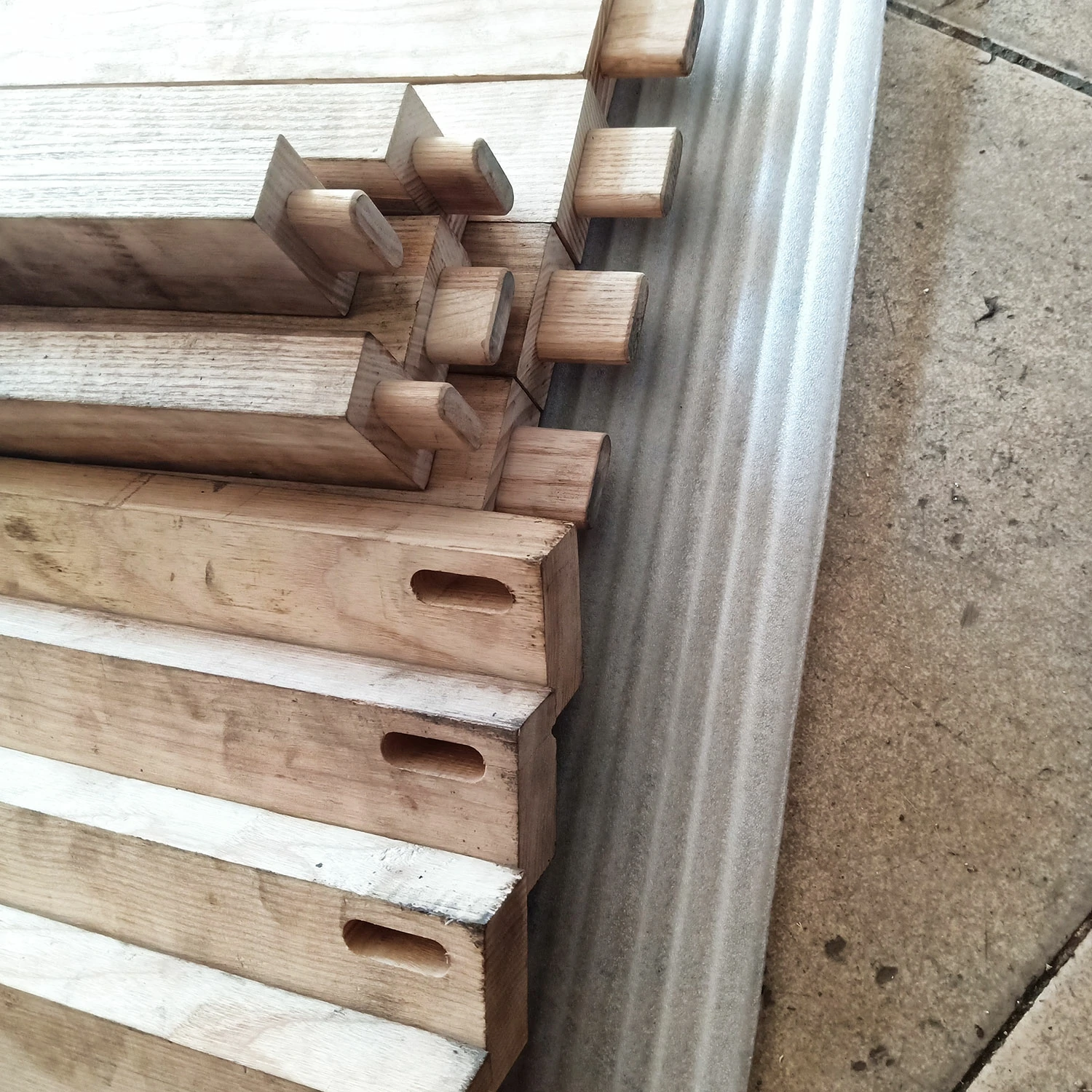

2.Suitable for mortise processing of doors，tables，chairs and other products.
3.The width can be adjusted by digital display，and at the same time，it can be inclined at 30 degrees on the work surface，which is used for the processing of inclined tongue and groove.
4.The main shaft assembly slides along the precision cylindrical guide rail，and the moving frequency is high to ensure the processing quality and efficiency.

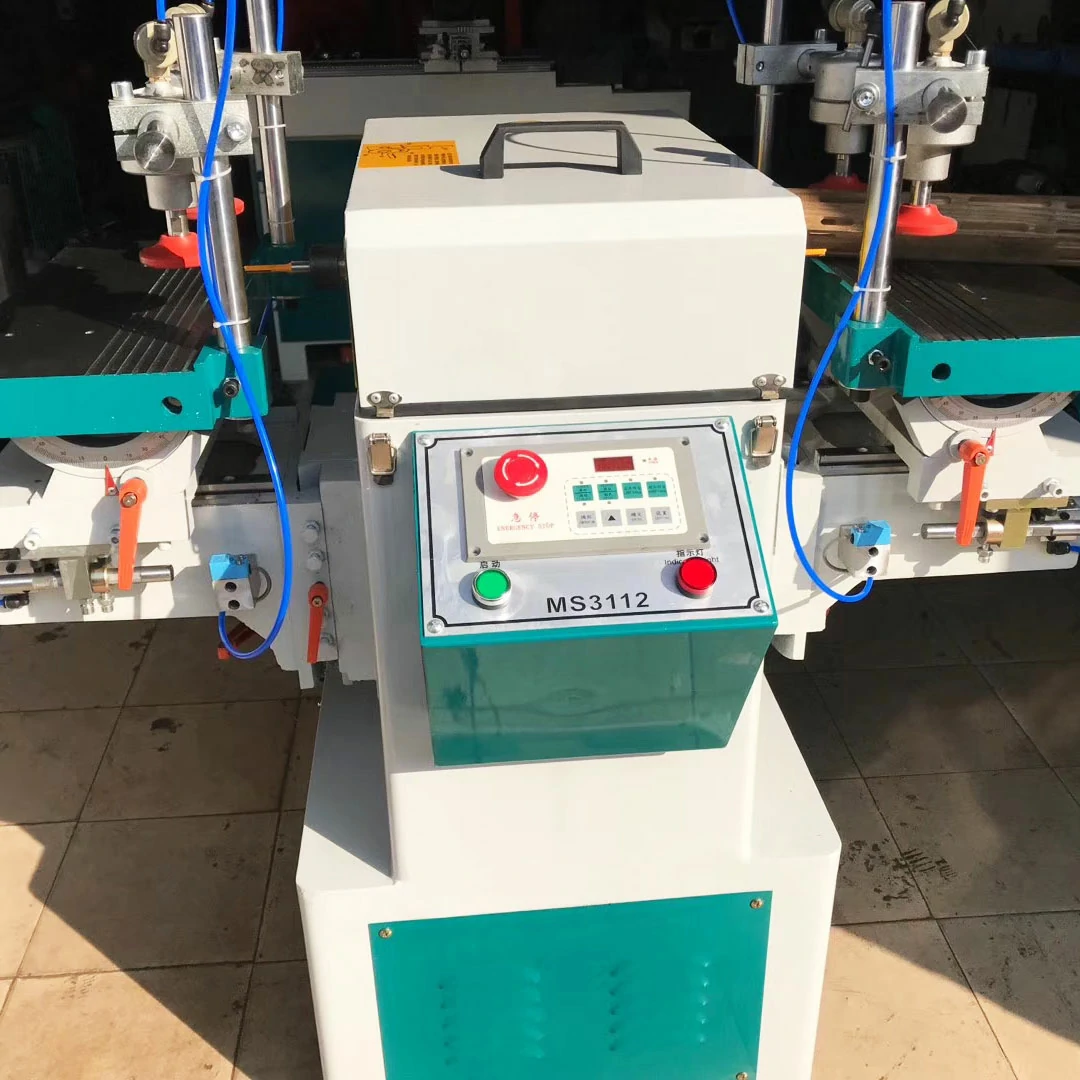

5.PLC control system，the operation is more stable.

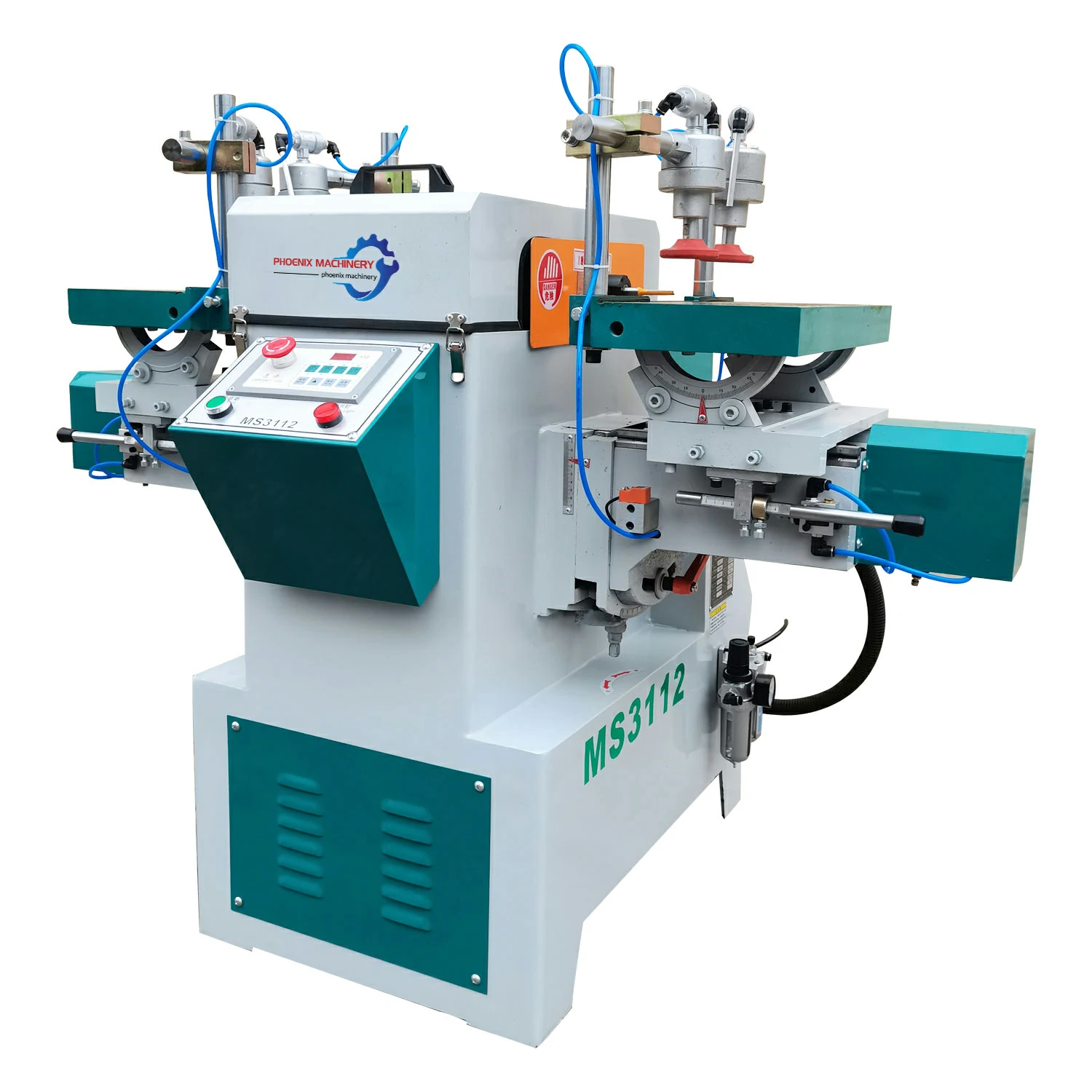

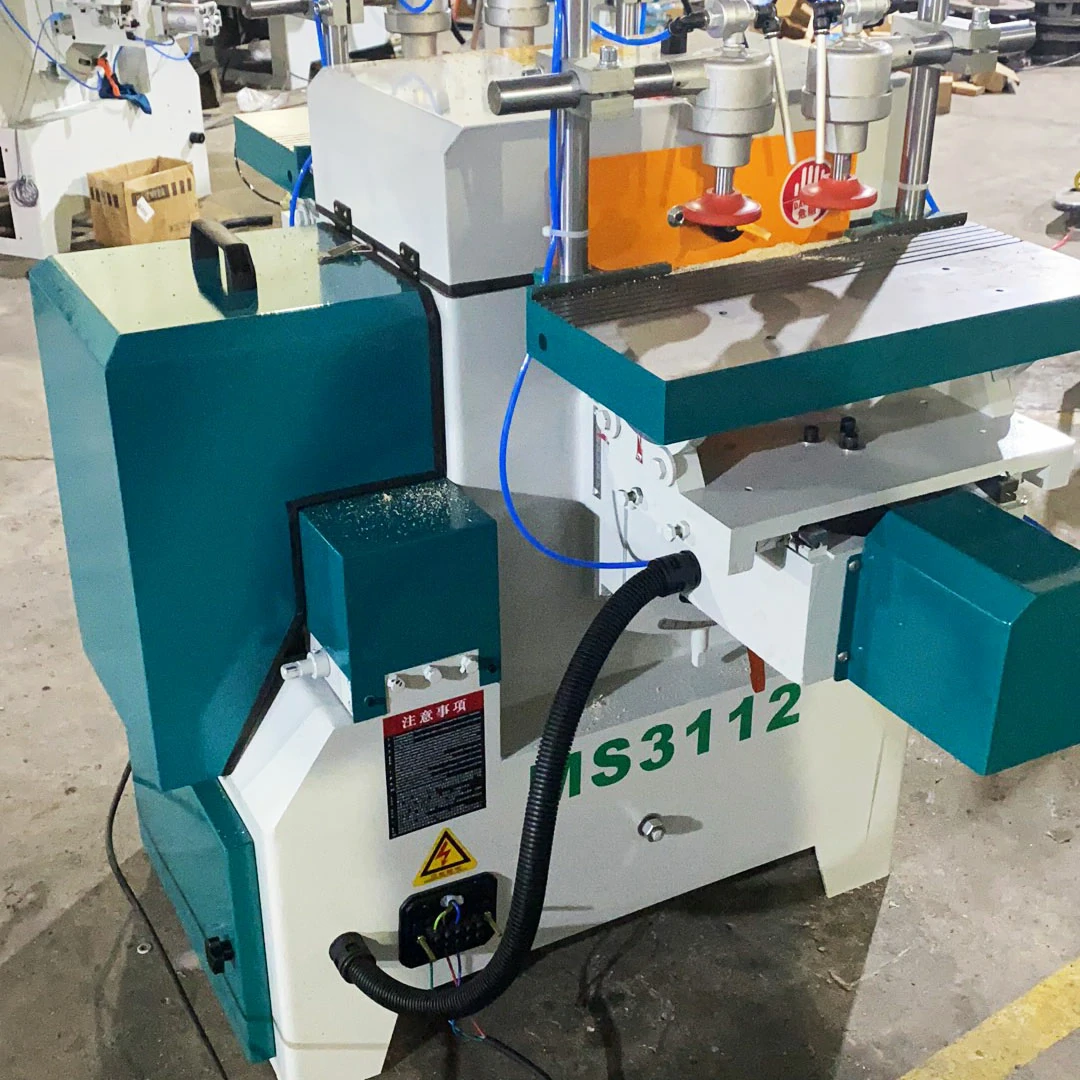

| model | MS3112 |
| Wortable lifting distance | ±80mm |
| Worktable tilt angel | 20° |
| Max mortising width | 120+2Rmm |
| Max mortising depth | 60mm |
| Spindle speed | 9500r/min |
| Total power | 3kw |
| Air pressure | 0.6mpa |
| Weight of machine | 480kg |
| Overall size（L×W×H） | 1500×1060×1150mm |
