It is applied for re-processing camber side and the special shape side.It also can do beeling and bevel edge process,make different shapes of wood line with template.
It is widely used in woodworking funiture and construction industry.

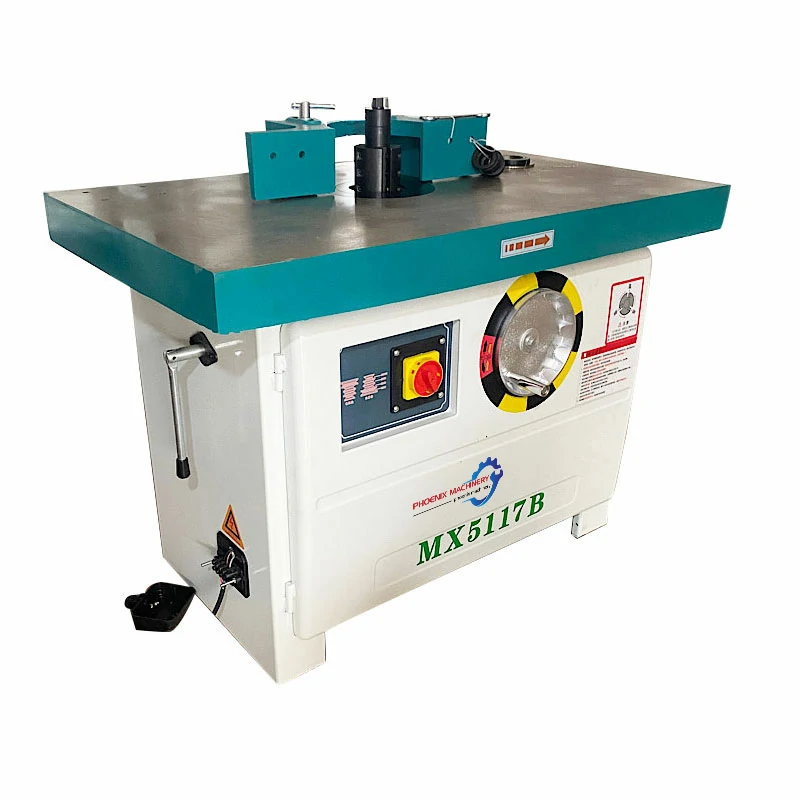

| Model | MX5117B | MX5317 |
| Spindle speed | 6000/10000r/min | 6000/10000r/min |
| Cutter head diameter | Φ90mm | Φ90mm |
| Cutter spindle diameter | Φ35mm/customize | Φ35mm/customize |
| Max processing thickness | 120mm | 120mm |
| Install power | 4kw | 4kw*2 |
| Worktable size(L*W) | 1050*670mm | 1550*670mm |
| Weight | 325kg | 550kg |
| Overall size(L*W*H) | 1130*670*1050mm | 1600*700*1050mm |
