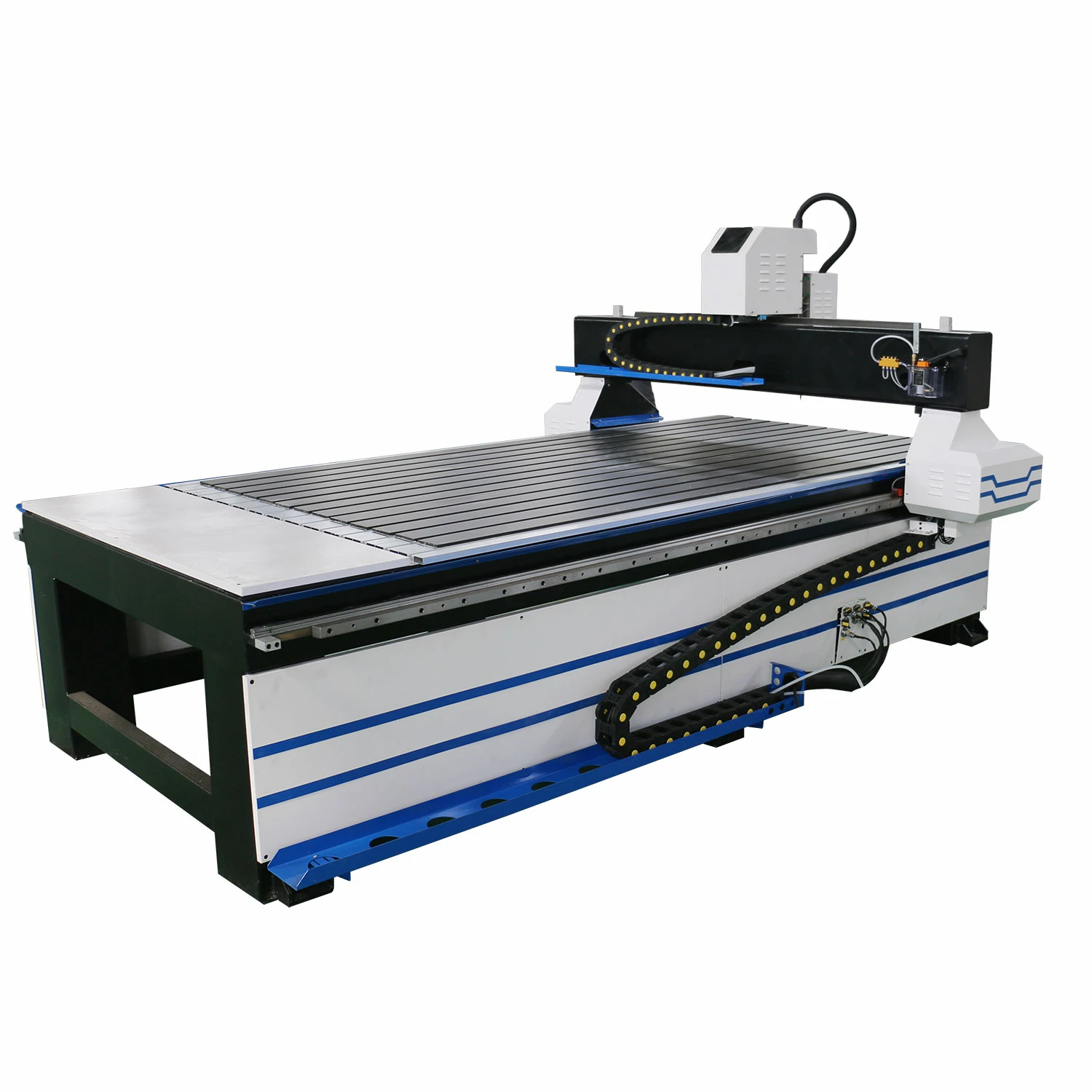

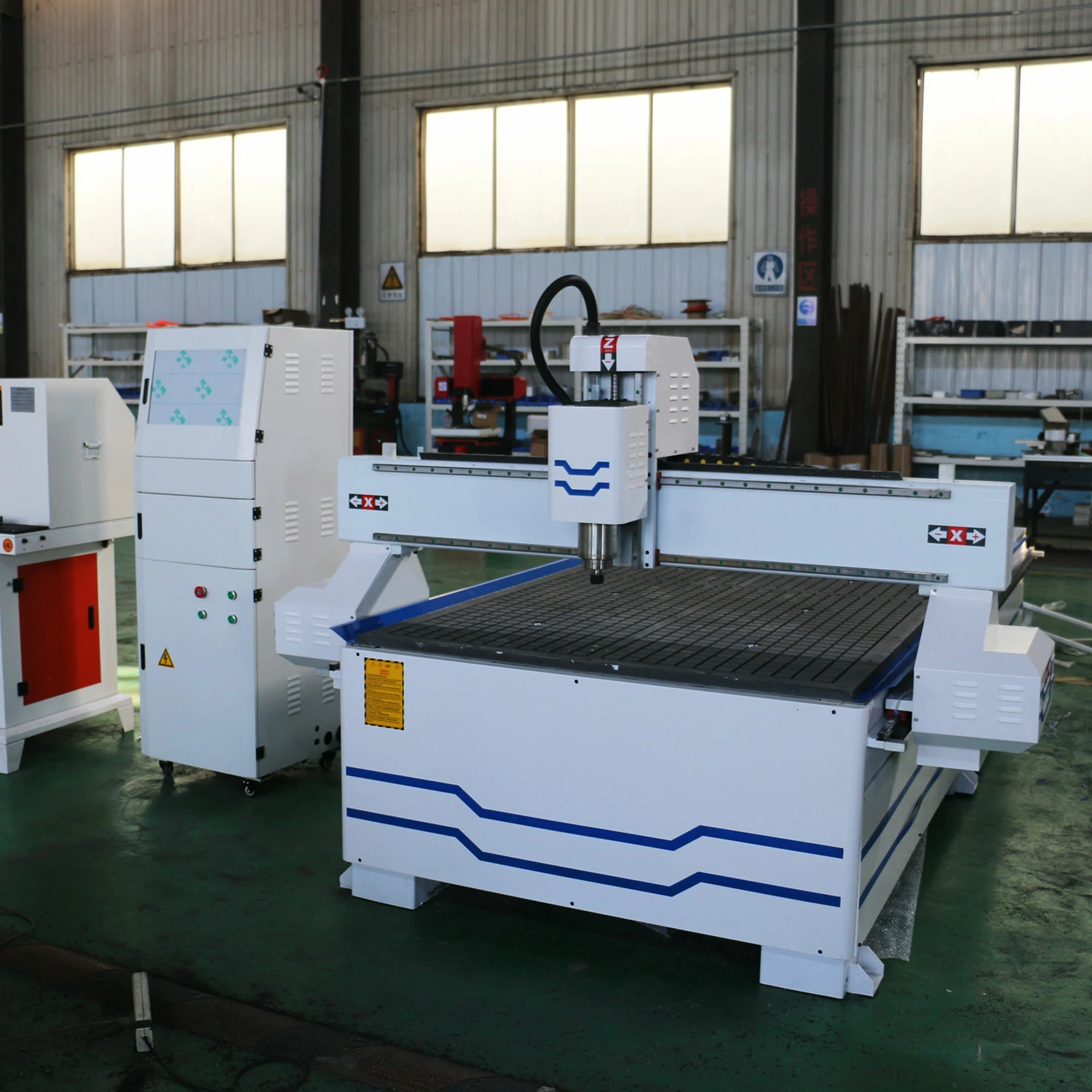

Single Head CNC Router Application
1. Woodworking Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.
2. Advertisement Engraving and cutting various labels and number plates.
3. Art craft Engraving characters of any language and graphics on gifts and souvenirs. Balustrade, furniture legs st-air railing, cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold, and a variety of rotational symmetry.
Applicable Materials Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble, and other nonmetal materials and light metal materials.
| Model | PM1325 | |
| Bed Material | Welded large steel pipe | |
| weight | 1000KGS | |
| Table size | 1300*2500mm | |
| Work area | 1300*2500*200mm | |
| Table Surface | T-slot table | |
| Engraving accuracy | 0.02-0.03mm | |
| Repeatability | ±0.01mm | |
| XYZ transmission | XY helical rack drive, Z screw drive | |
| Guide | HIWIN20 square rail | |
| Working speed | 18000mm/min | |

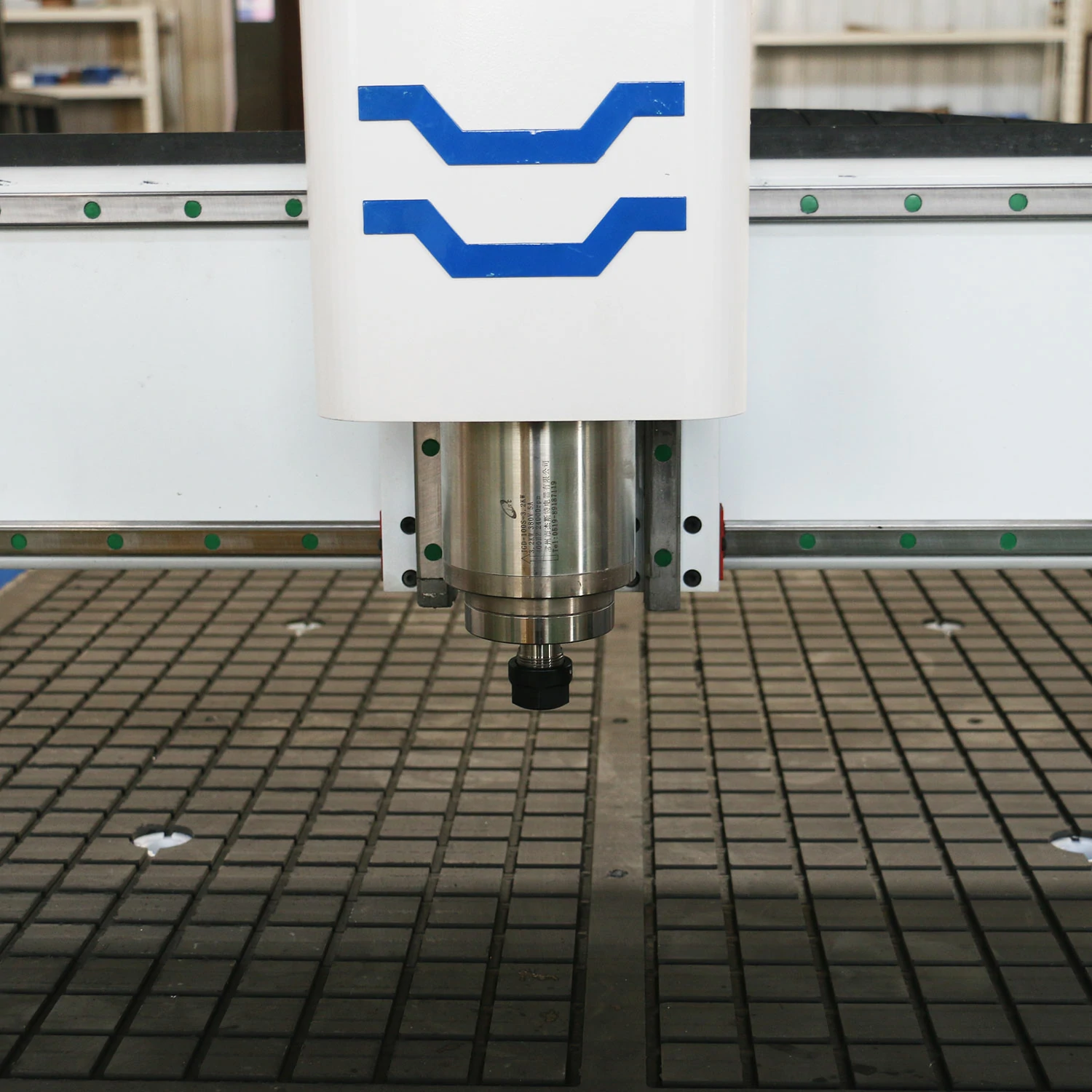

| Spindle power | JST 3.2KW water cooling | |
| Frequency converter | 3.7KW FULING | |
| Spindle speed | 0-24000rmp | |
| Motor | Leadshine 860 step motor | |
| Operating Voltage | AC380V220V50Hz | |

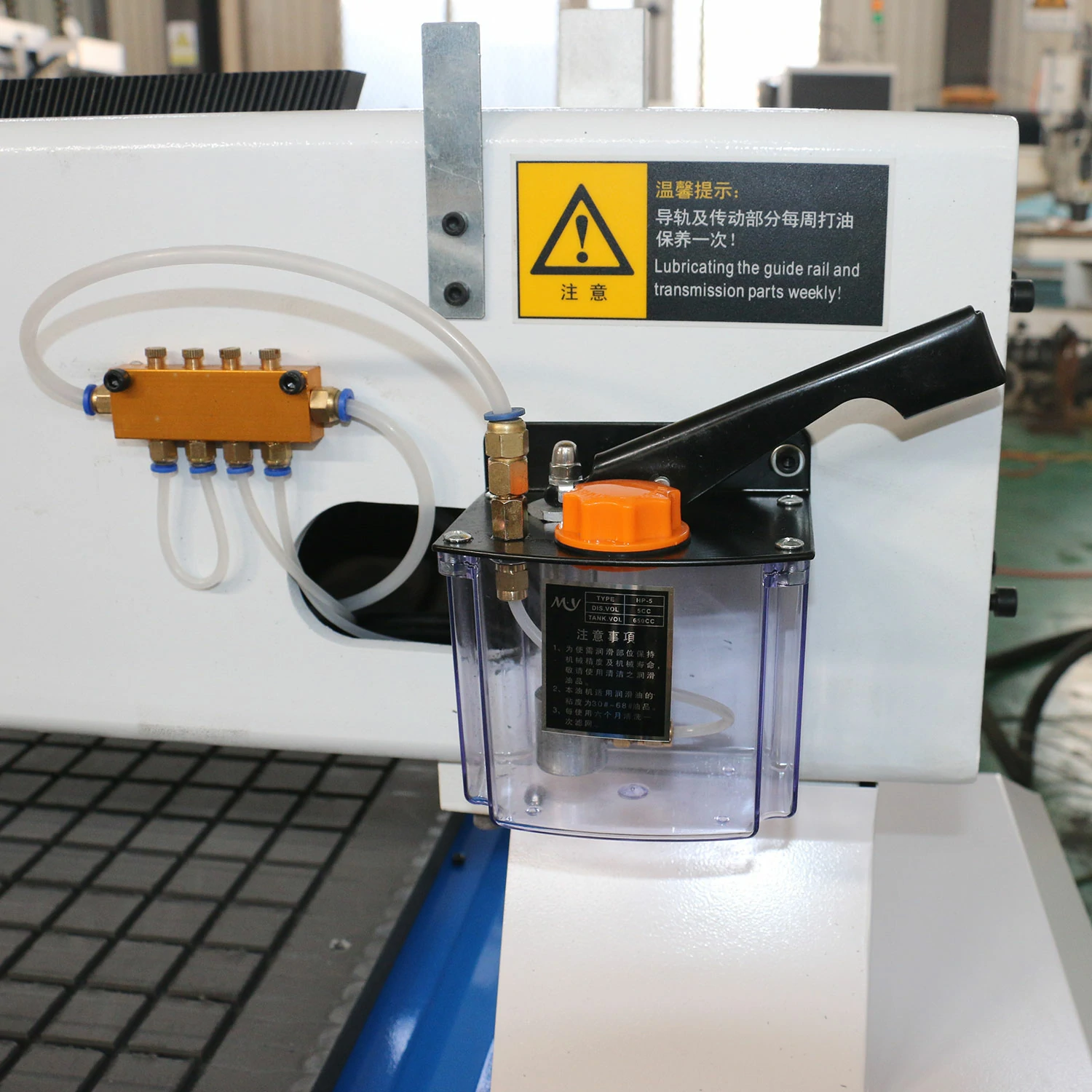

| Oil System | Manal oil system | |
| Run command | G code | |
| Operating system | NC studio | |
| Support software | Type 3,Artcam,JD, | |
| Packing size | 3200x1700x960mm | |
