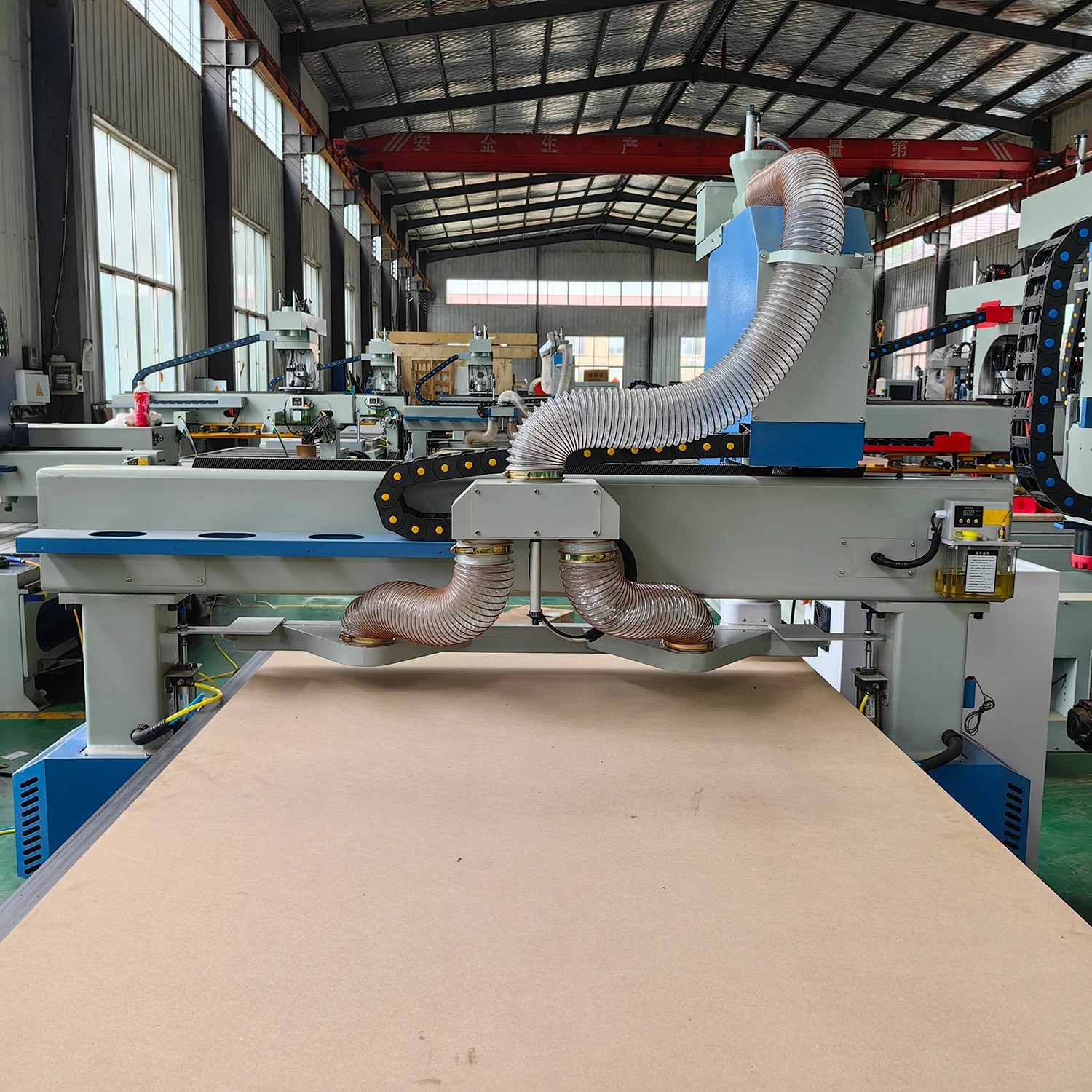

1.X,Y axis adopt helical rack and pinion transmission, having character of fast working and high efficiency. Z axis adopt Taiwan made ball screw, having the character of high precission and long life.
2.Two heads can work at the same time or alone, this improves the efficiency of the work, practical and economical.
3.We can manufacture the machine with multi-heads according to the customer’s requirements.

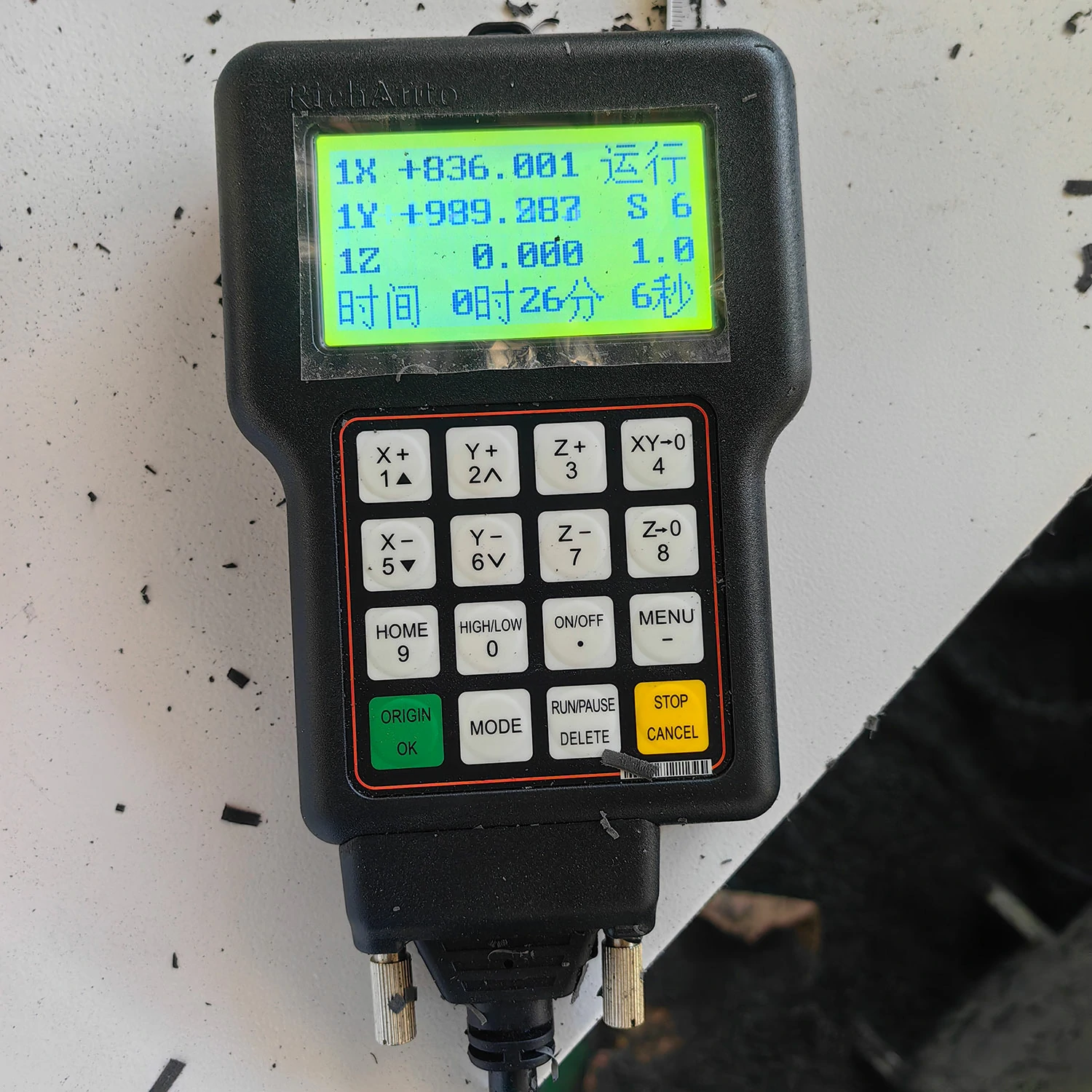

4.DSP control system with USB port,just need the handle to operate the machine,easy and convenient.

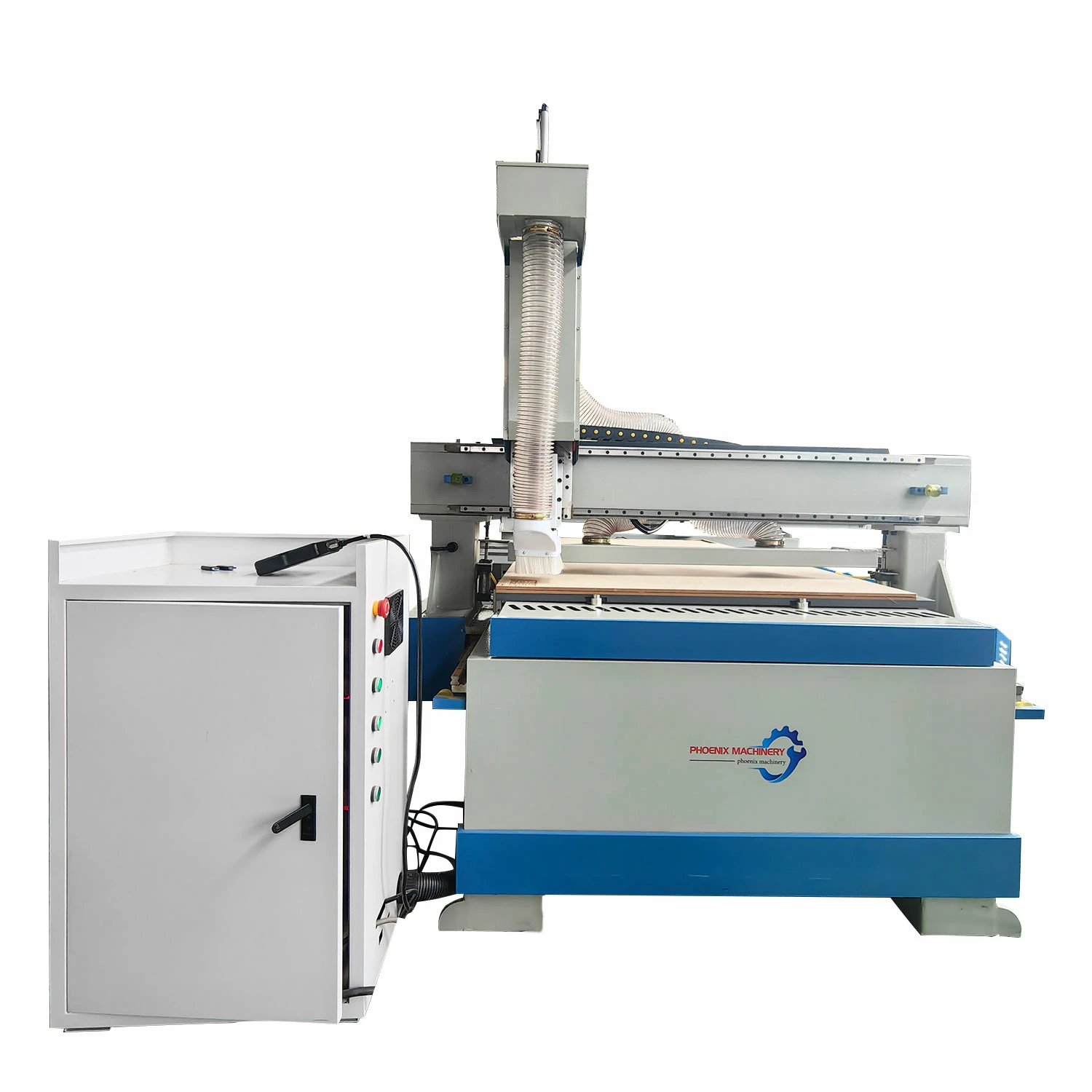

| Model | PK1325M+ |
| Travelling Size | 1300*2500*200mm |
| Optional Working Area | 1300*1300*200mm|4*4ft 1300*2500*200mm|4*8ft 1500*3000*200mm|5*10ft 2000*3000*200mm|6*10ft 2000*4000*200mm|6*13ft 2000*5000*200mm|6*16ft 2000*6000*200mm|6*20ft could be customed for X,Y and Z axis |
| Spindle power | 6KW |
| Drive motor | Hybrid Servo |
| Inverter power | 7.5KW |
| Positioning cylinder | 3+2 |
| Air pressure | 0.7 Mpa |
| Controller system | DSP A11E controller system |
| Spindle Speed | 0-18000 rpm |
| X-axis Maximum working speed | 10-15m/Min |
| Y-axis Maximum working speed | 10-15m/Min |
| Z-axis Maximum working speed | 8m/Min |
| X-axis Maximum travel speed | 25000mm/min |
| Y-axis Maximum travel speed | 25000mm/min |
| Z-axis Maximum travel speed | 10000mm/min |
| Vacuum adsorption pump power | 7.5 KW |
| Overall dimension | 3260*2100*2200mm |
| N.W. | 1500 KG |
