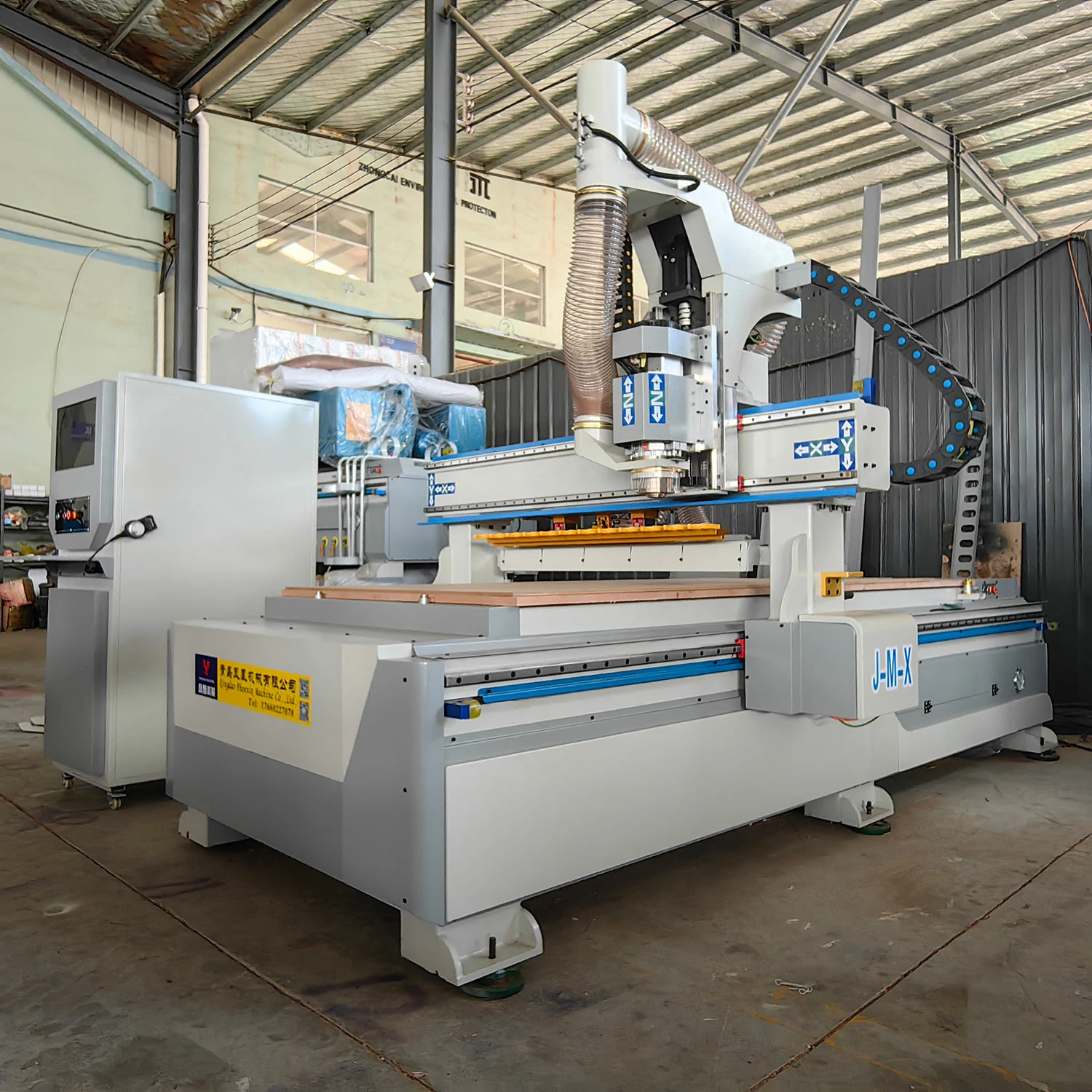

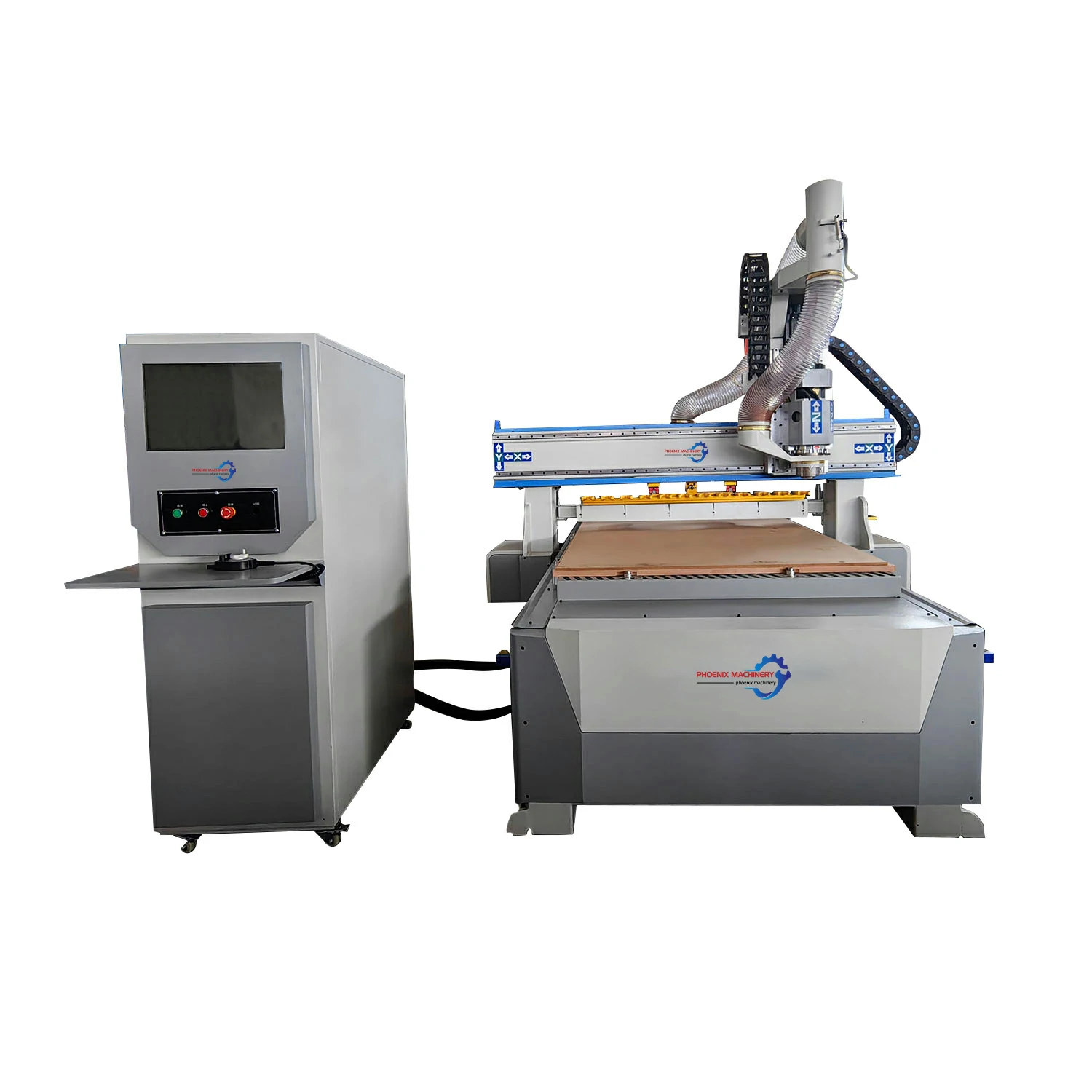

This type of nesting CNC router is your best choice for furniture production. With the automatic tool change function and automatic loading and unloading functions, the production efficiency is greatly improved.
| Model | PK1325 ATC |
| Travelling Size | 2500*1300*200 mm |
| Spindle power | 9KW |
| Drive motor | servo motor 1.5KW*3 |
| Inverter power | 11KW |
| Tool change speed | High-speed switching |
| Air pressure | 0.7 Mpa |
| Double bag dust collector | 5.5KW |
| Spindle Speed | 0-24000 rpm |
| Machining accuracy | +-0.02mm |
| Maximum working speed | 20000mm/min |
| Maximum travel speed | 80000mm/min |
| Number of tools | 12 tools automatic switching |
| Vacuum adsorption pump power | 7.5 KW |
| Overall dimension | 3500x2300x2000 mm |
| N.W. | 2550 KG |
