Customized panel furniture carving machine straight replacement knife

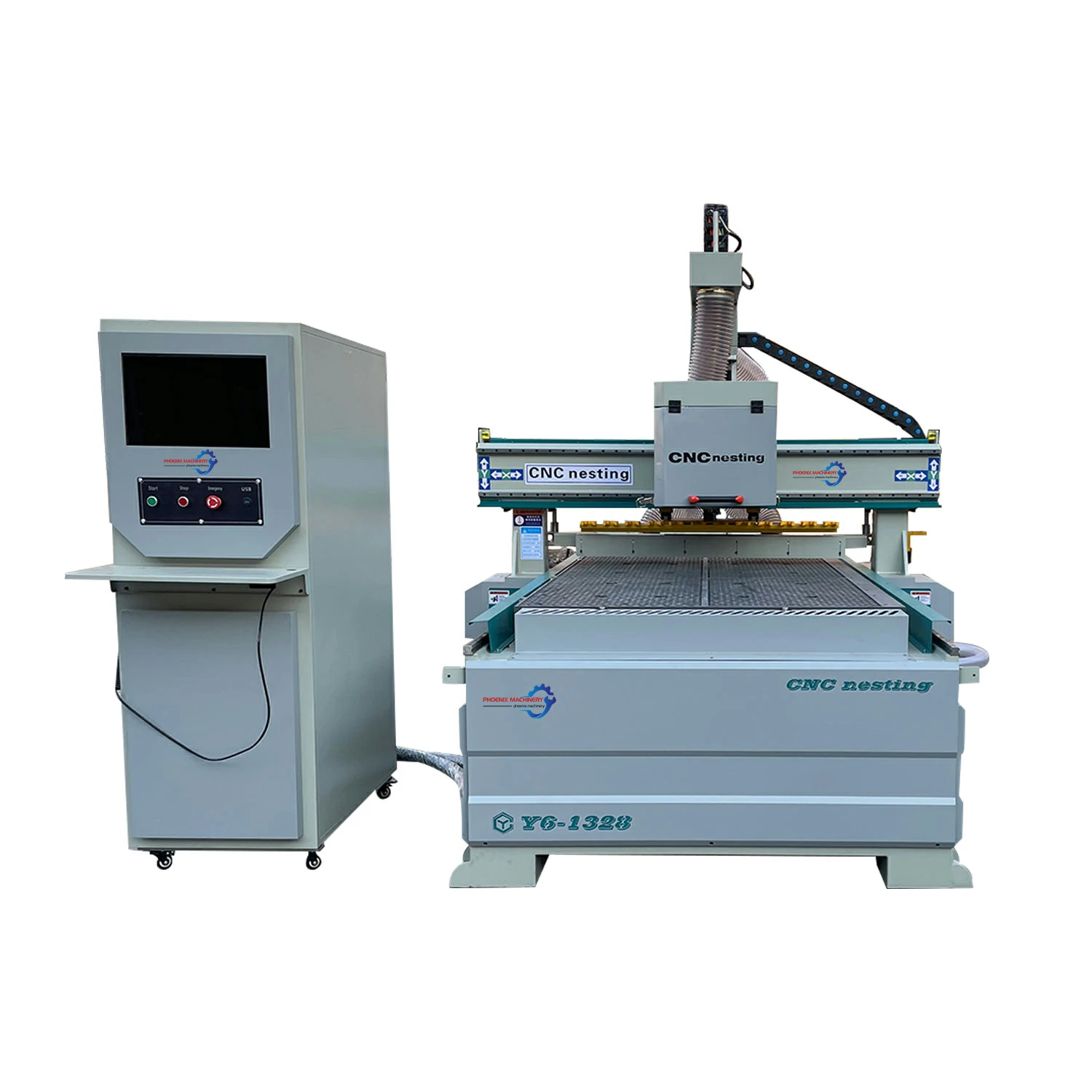

| Model | Y6-1328 ATC |
| Travelling Size | 1300*2800*200mm |
| Optional Working Area | 1300*1300*200mm|4*4ft 1300*2500*200mm|4*8ft 1500*3000*200mm|5*10ft 2000*3000*200mm|6*10ft 2000*4000*200mm|6*13ft 2000*5000*200mm|6*16ft 2000*6000*200mm|6*20ft could be customed for X,Y and Z axis |
| Spindle power | 9KW（ ISO30）（air cooling spindle） |
| Drive motor brand | Leadshine (Top brand in China） |
| Drive motor | Servo motor 1.5KW*3 |
| Inverter power | 11KW |
| Air pressure | 0.7 Mpa |
| Controller system | LNC From Taiwan |
| Spindle Speed | 0-24000 rpm |
| Maximum working speed | 15~25m/min |
| Maximum travel speed | 60~70m/min |
| Number of positioning cylinders | X（4）+Y（2） position cylinder |
| Number of tools | 12 tools automatic switching |
| Vacuum adsorption pump power | 7.5 KW |
| Overall dimension | 2100×3800mm×2100mm |
| N.W. | 1550 KG |
