2 3 4 5 6 Heads multi-head Automatic multi head wood sawmill for timber cutting band sawmill line

描述
用户评价 (0)

描述

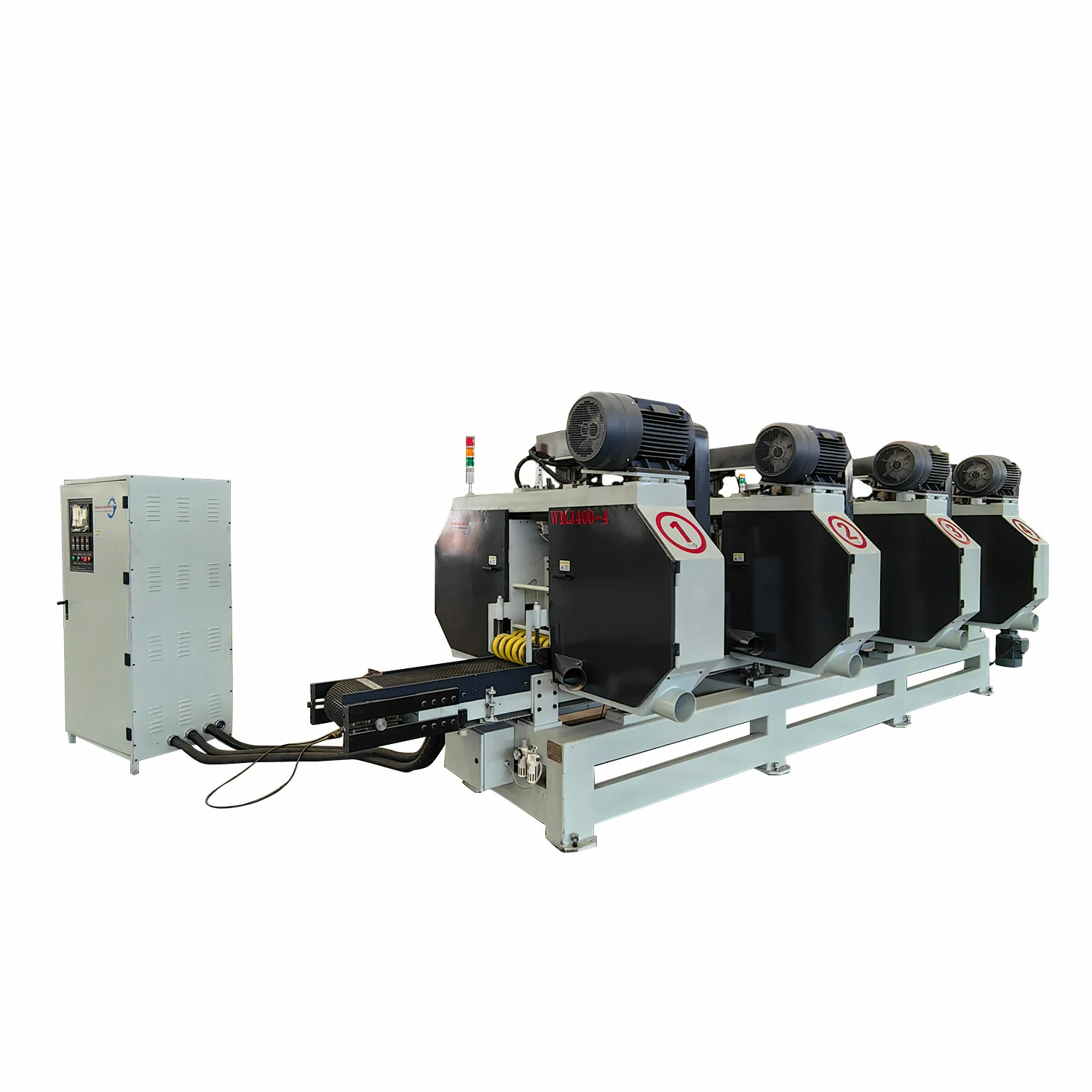

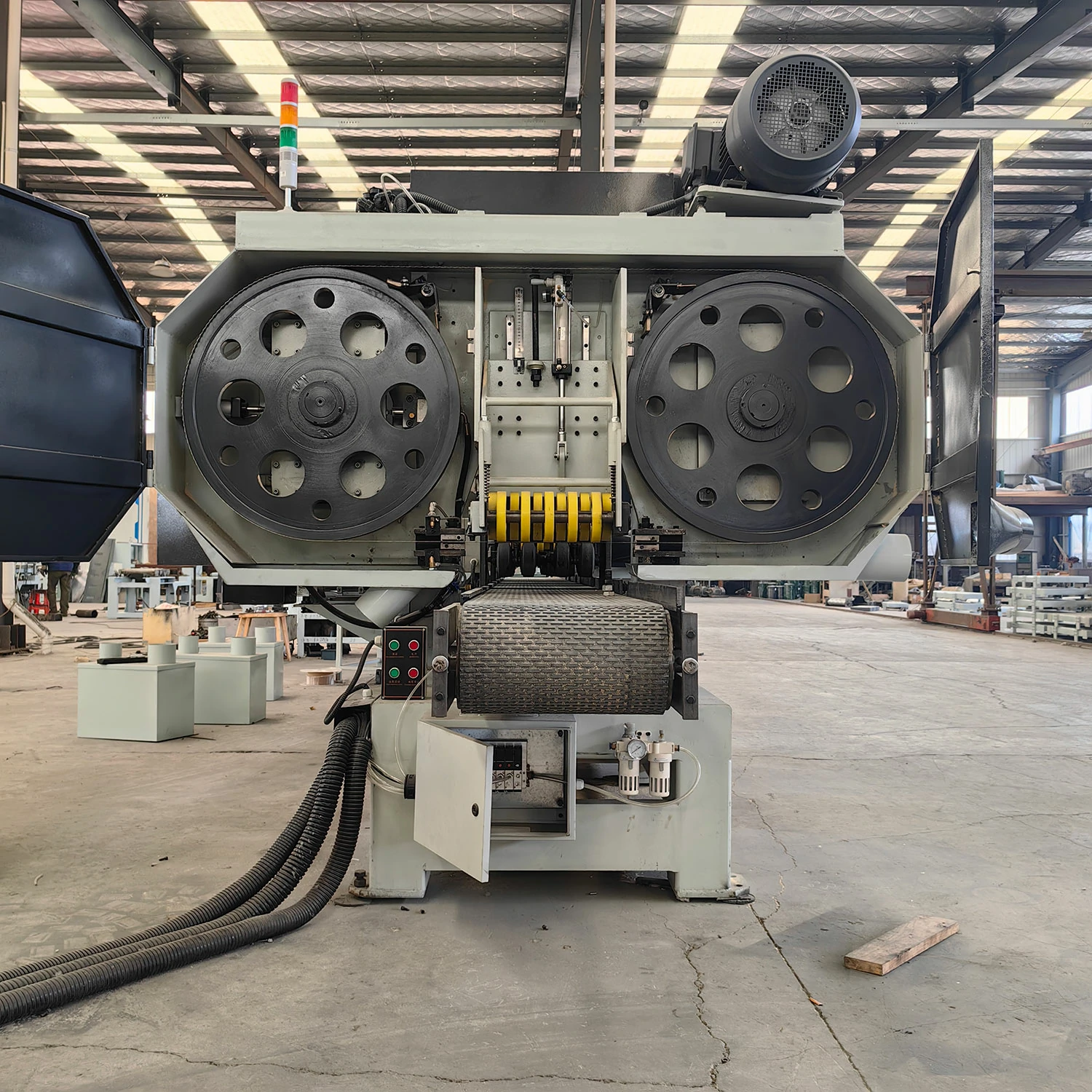

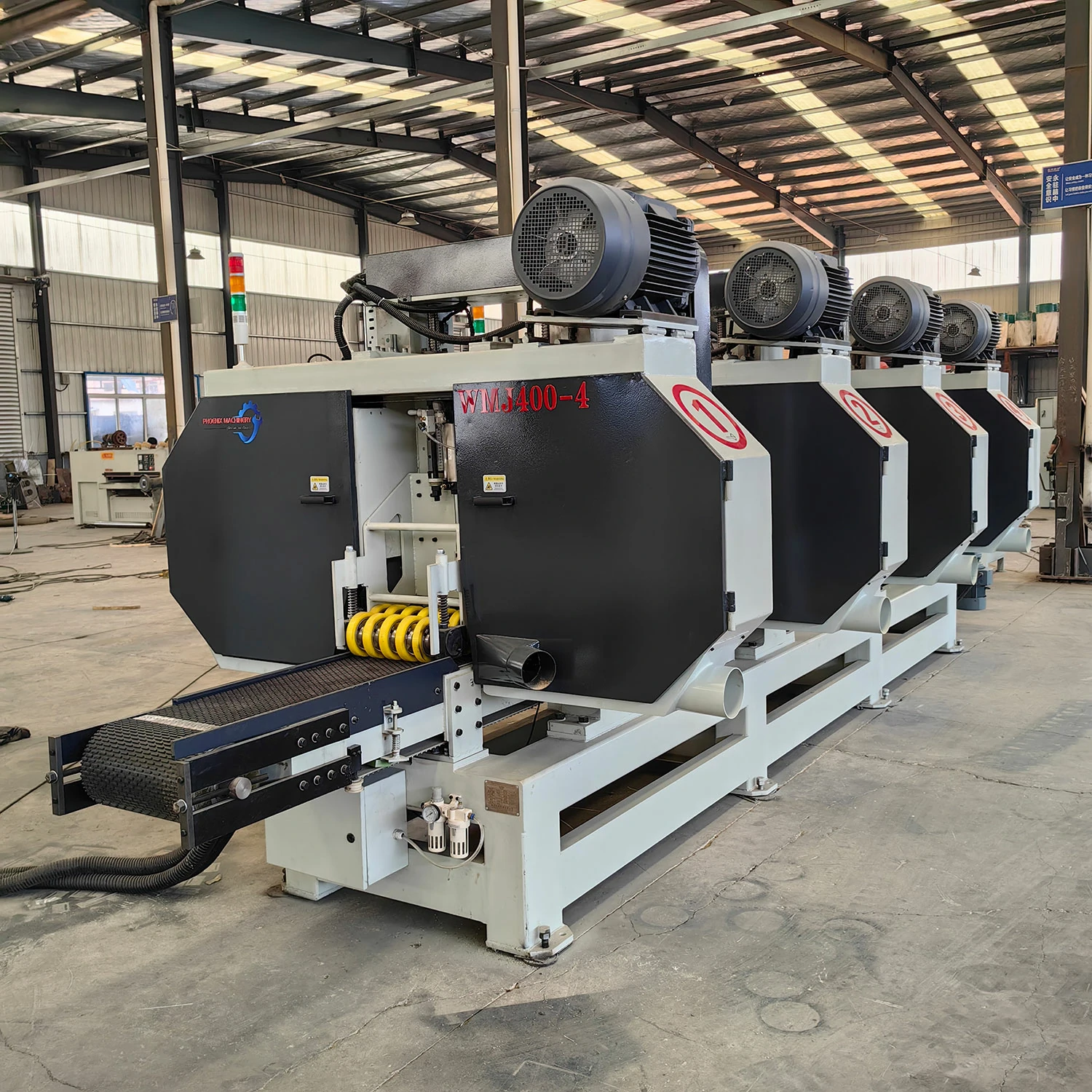

Full Automatic CNC industrial band saw machine 4 Heads horizontal wood band saw 5,5kw

Model	WMJ250*3	WMJ300*3	WMJ400*3
Max. Working Width*thickness	250*220mm	300*220mm	400*220mm
Distance from saw blade to worktable	3-300mm	3-300mm	3-300mm
Width of conveyor belt	250mm	300mm	400mm

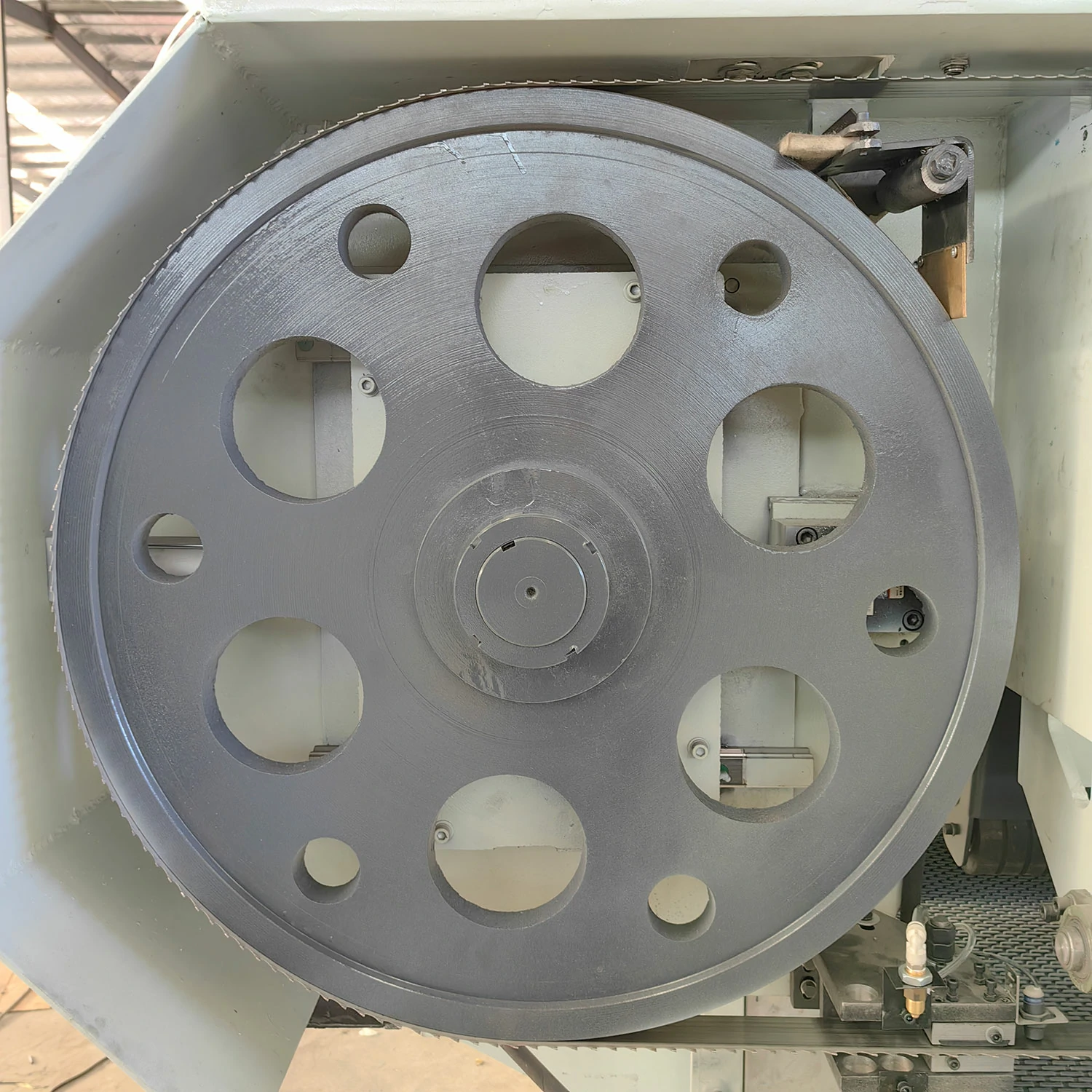

Diameter of saw wheel	711mm	800mm	800mm
Feed speed	0-14 m/min	0-14 m/min	0-14 m/min
Saw wheel elevation motor	1.5kw*3	1.5kw*3	1.5kw*3
Saw wheel motor	18.5kw*3	18.5kw*3	22kw*3
Conveyor motor	4kw	4kw	4kw
Total power	64kw	64kw	74.5kw
Voltage	380V 50HZ 3PH	380V 50HZ 3PH	380V 50HZ 3PH
Dust outlet diameter	102mm*6	102mm*6	102mm*6
Machine size	525022502360mm	525022502360mm	525022502360mm
Machine weight	4800kg	5400kg	6200kg
