High accuracy Processing of wood surface formation, wood can be inclined planing smooth. Professional bevel flat plane and flat-fell seam, Widely used in integrated materials processing, furniture factory, construction industry, wood mold processing and other enterprises.We provide more models of woodworking thicknesser planers, you can choose the thicknessing width with 250, 300, 400, 500, 600, 630mm
Except Oblique flat planer, we also provide automatic feeding flat planer and Straight mouth planer.

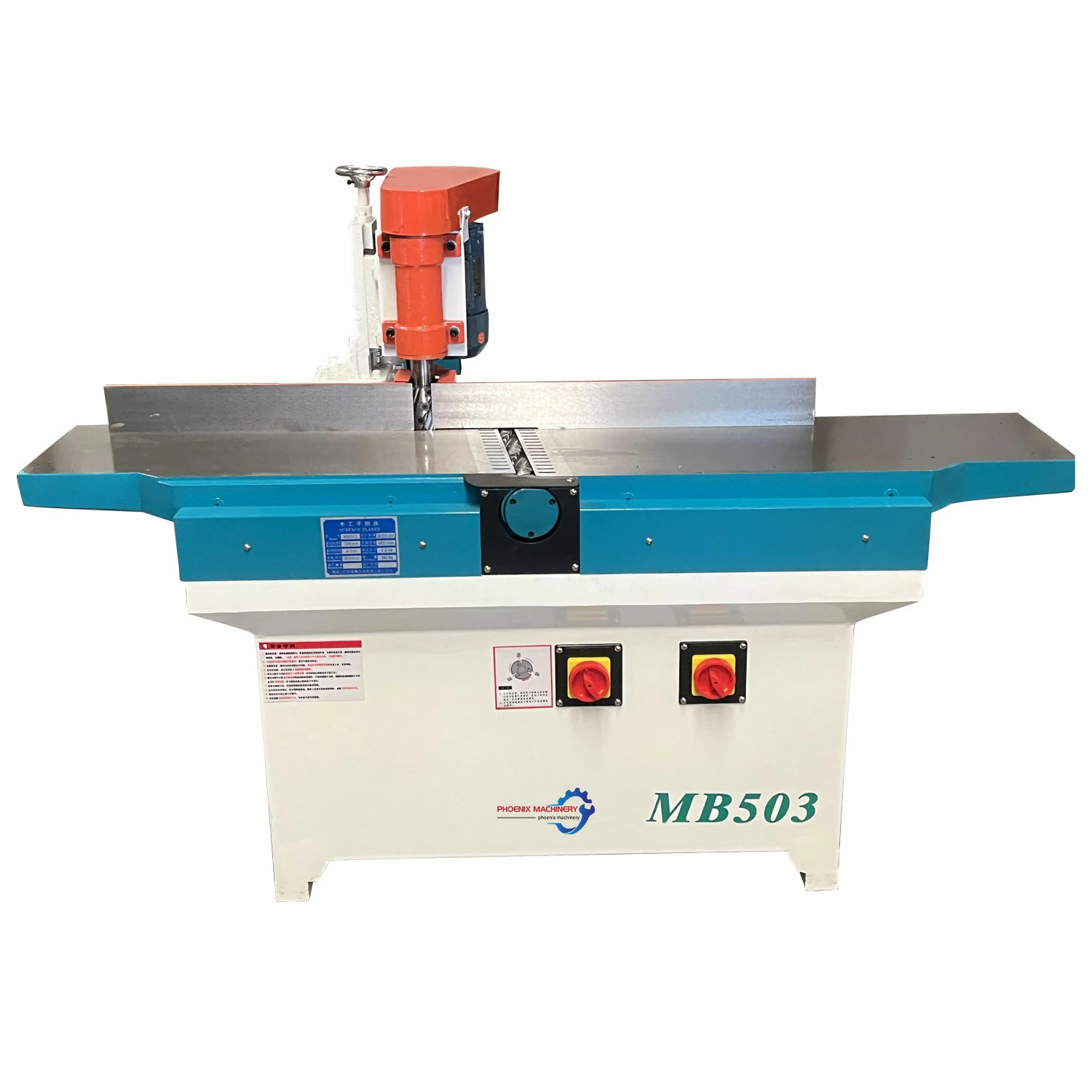

| Model | MB503 | MB504 |
| Surface working width | 300mm | 400mm |
| Side working width | 70-100mm | 70-100mm |
| Max. surface planing | 4mm | 4mm |
| Max. side planing | 2mm | 2mm |
| Surface spindle speed | 5700r/min | 5700r/min |
| Side spindle speed | 5700r/min | 5700r/min |
| Surface motor power | 2.2KW | 3KW |
| Side motor power | 2.2KW | 2.2KW |

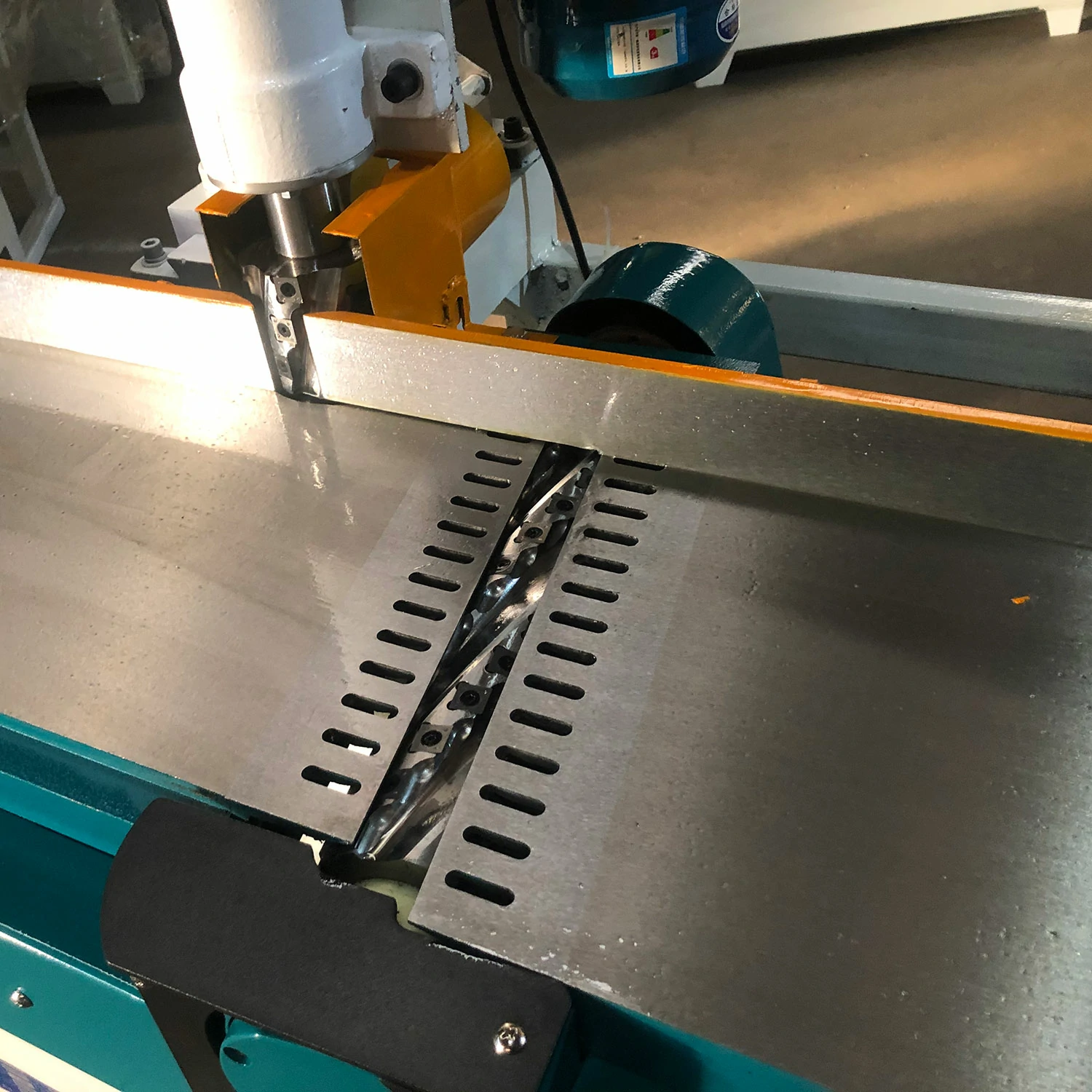

| Cutter shaft type | Spiral knife | Spiral knife |
| Number of blades | 6 | 6 |
| Voltage | 380V/50HZ | 380V/50HZ |
| Machine size | 1800*950*1500mm | 1800*1050*1500mm |
| Weight | 380kg | 430kg |
