MBZ524A
MBZ524A - Image 2
MBZ524A - Image 3
MBZ524A - Image 4

MBZ524A

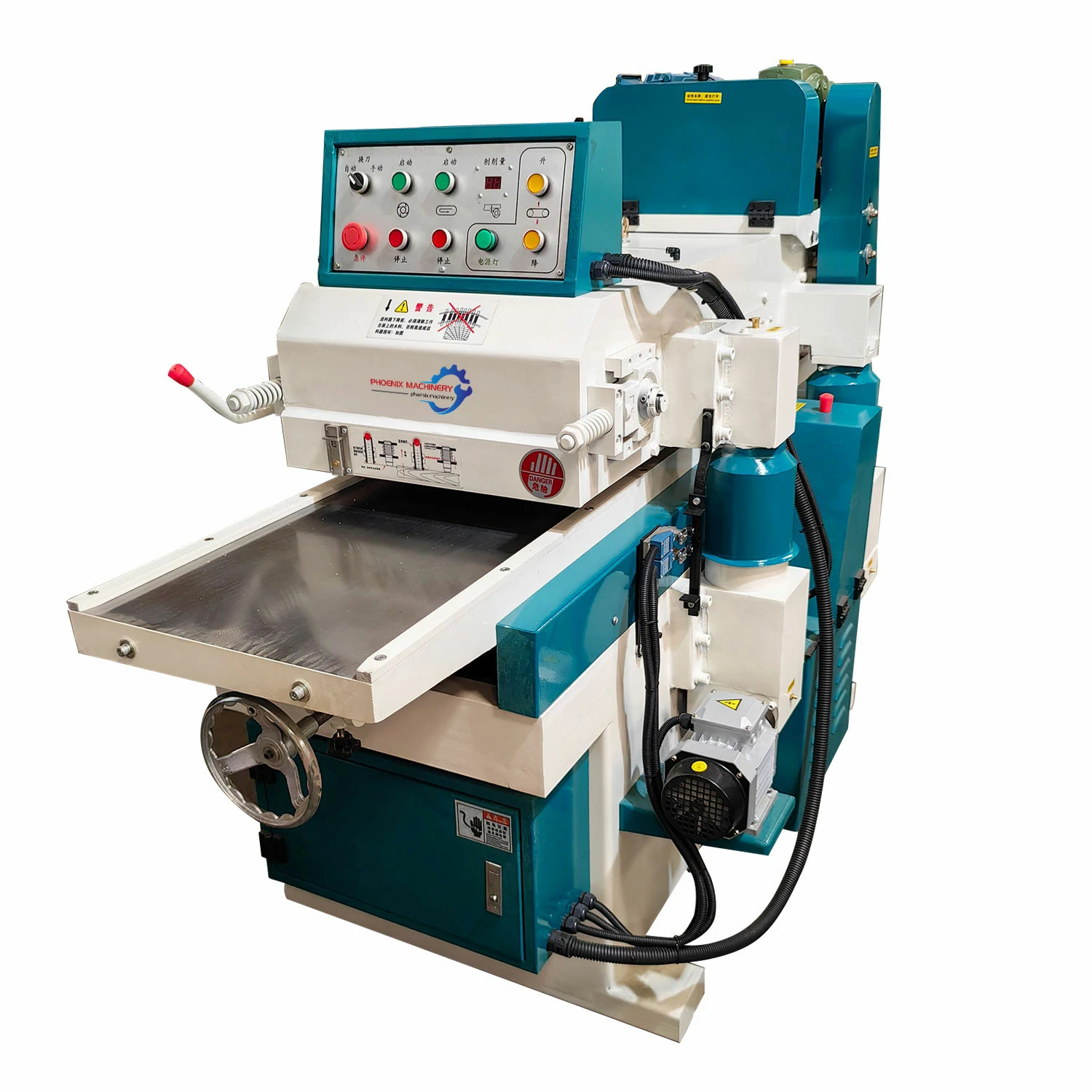

MBZ524A Woodworking planing machine with dual blade axis automatic feeding and planing

Inquire Now
产品类别

Description

1.MB524 Circular cutting diameter is 120mm(cutter spindle diameter is 118mm,four blade design), with high planing speed and adjustable feeding pressure automatic feeding, ensure quality process and efficiency. Feed strong, more conventional flat plane production efficiency 3-6 times.Especially suitable for mass thickness planing.

2. Machines and feed component implementation semi-closed sandwich design, to ensure the safety for the processing and intuitive fine-tuning of processing, convenient cleaning at the same time.

Specification parameter MBZ524A
Max.working width 400mm
Main spindle dia. 100mm
Max.working thickness 120mm
Min.working thickness 10mm
Automatic feeding speed 5~18m/min
Max.working depth 5mm
Main motor power 4kw
Feeding motor power 1.5kw
Lifting motor power 0.55kw
Total power 6.05kw
Exclusion port diameter 120mm
Machine dimensio 2100x850x1500mm
Spindle speed 5600r/min
Total Weight 950kg
