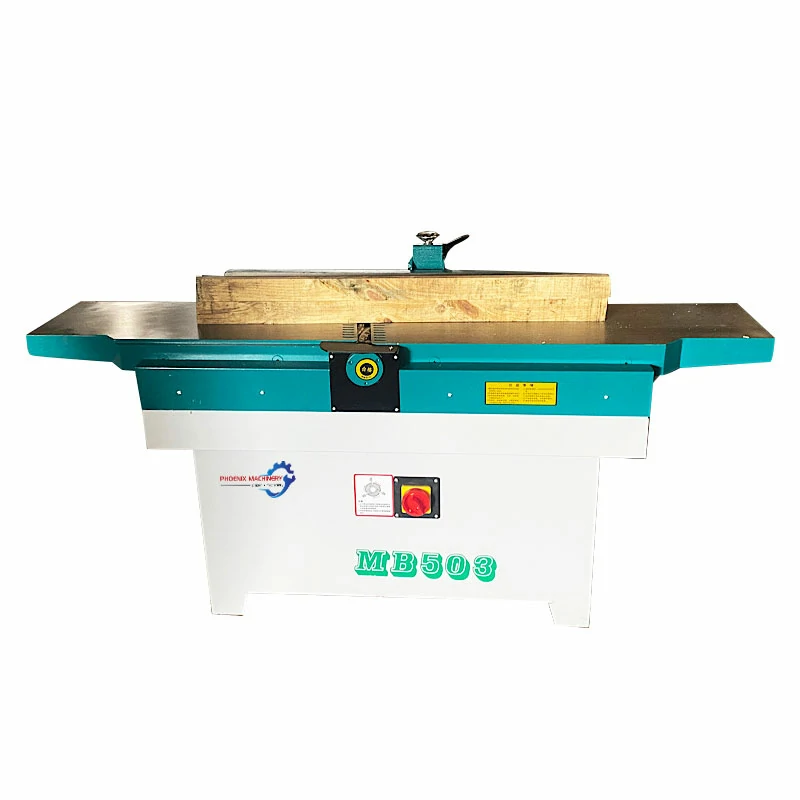

MB503

Woodworking Machinery Multifunctional MB503 High Speed Flat Planer Integrated Machine

描述

  1. Pure copper motor, safe and reliable, portable and long service life.
  2. Humanized adjustment hand wheel and optional backing adjustment structure, easier to work.
  3. Finely ground cast iron work surface to guarantee precision,with silencer lip to reduce noise.
  4. The inclined knife shaft can be installed with 3 blades for continuous cutting to improve the quality of wood planing, also have spiral cutting head for choose.
  5. Cast iron is easy to tilt and operate.
  6. With a dust outlet, the processed wood chips will be removed from the inclined dust outlet.
Model MB503 MB504 MB505 MB506
Max.working width 300mm 400mm 500mm 600mm
Max working depth 4mm 4mm 4MM 4mm
Working length 1.8m (optional: 2.2m or 2.5m) 1.8m (optional: 2.2m or 2.5m) 1.8m (optional: 2.2m or 2.5m) 1.8m (optional: 2.2m or 2.5m)
Speed 5800rmp/min 5800rmp/min 5800rmp/min 5800rmp/min
The motor power 2.2KW 3KW 4KW 5.5KW
Cutter head flat cutter head (optional: spiral cutter head)
Voltage 380V 50Hz 3 phases/Customized
size 1800x650x1000mm 1800x750x1000mm 1800x850x1000mm 1800*950*1000
Weight 300kg 380kg 410kg 440kg
