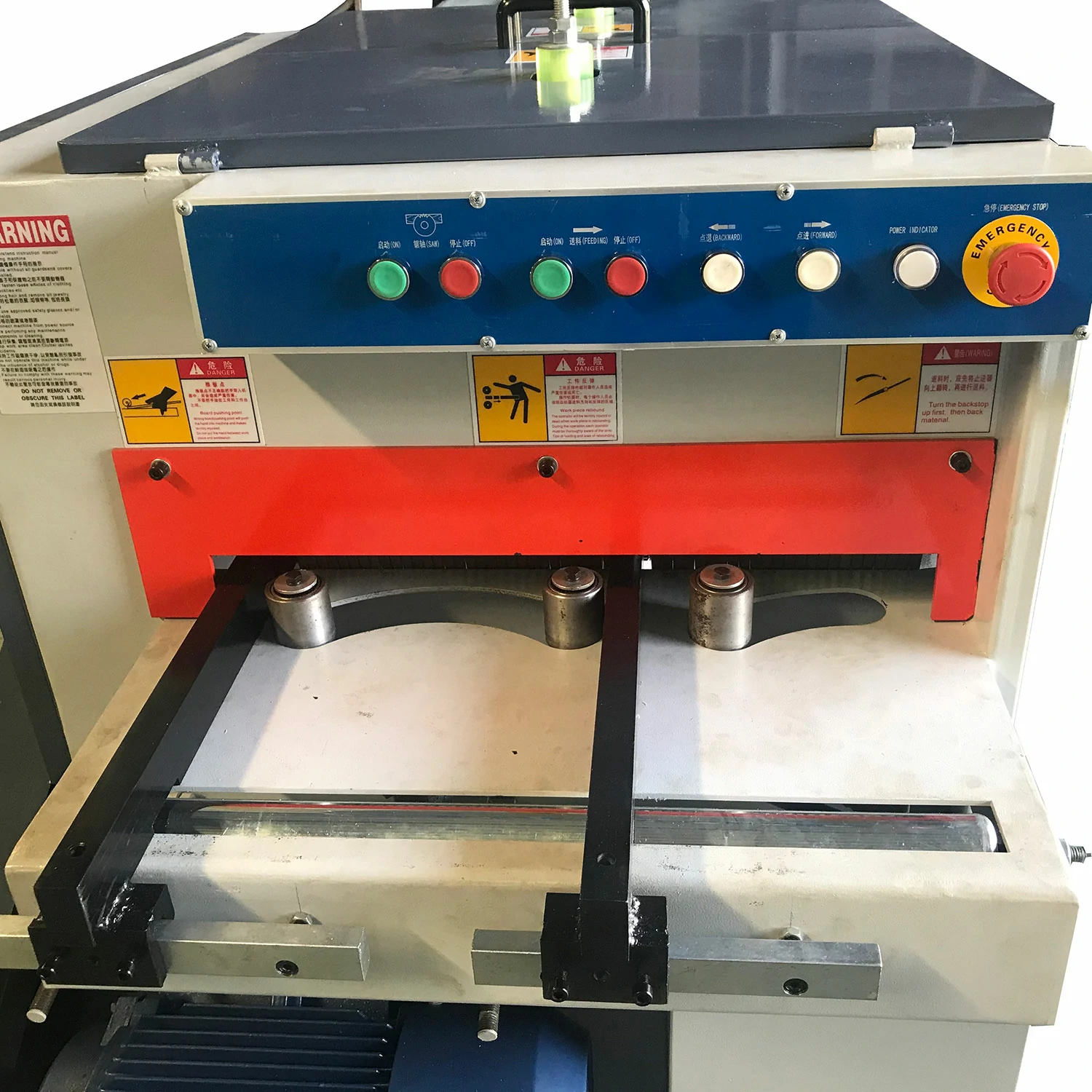

- Feeding device
The feed port is installed with anti-rebound device, to ensure that the feeding work will not cause injury to personnel because of the wood rebound.
- Automatic feeding and discharging wheel, no manual push material, resistance automatic processing feeding, using steel body gear hobbing forming, more smooth.

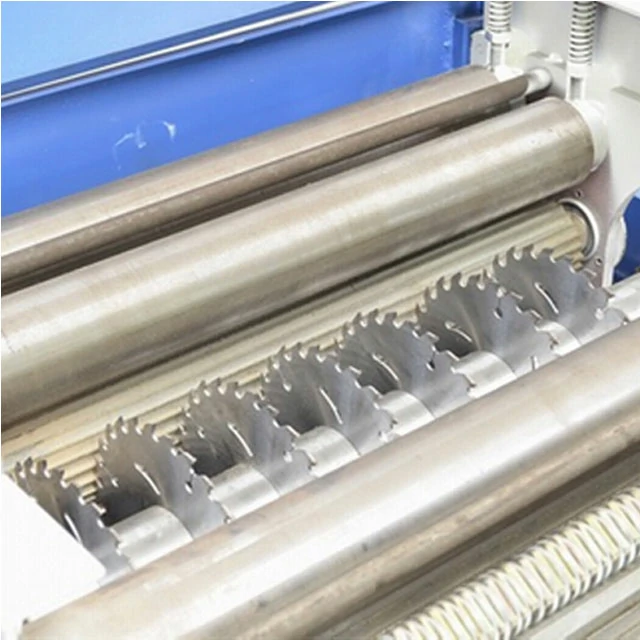

- The saw blade and saw pad can be freely loaded and unloaded and the size of the cutting plate can be adjusted at will.
- Multi-blade saws are equipped with vacuum cleaner tuyere diameter 100mm, need to be equipped with high power vacuum cleaner, better dust effect.
| Medel | MJ141-0450 | MJ141-0650 |
| Machine Total Power | 6.05KW | 11.55KW |
| Voltage / Frequency | 3HP-380V, 50HZ | 3HP-380V, 50HZ |
| Feeding Speed | 20.5/41m/min | 20.5/41m/min |
| Processing Length | ≥500mm | ≥500mm |
| Processing Width | ≤500mm | ≤500mm |
| Processing Height | 10-40mm | 10-60mm |
| Appearance Size（L*W*H） | 1560*930*1080mm | 1670*950*1120mm |
| Product Weight | 400KG | 500KG |
| Blade Size | Φ180*Φ45 | Φ205*Φ45 |
| Spacer Size | Φ68*Φ45 | Φ68*Φ45 |
