PFM80+

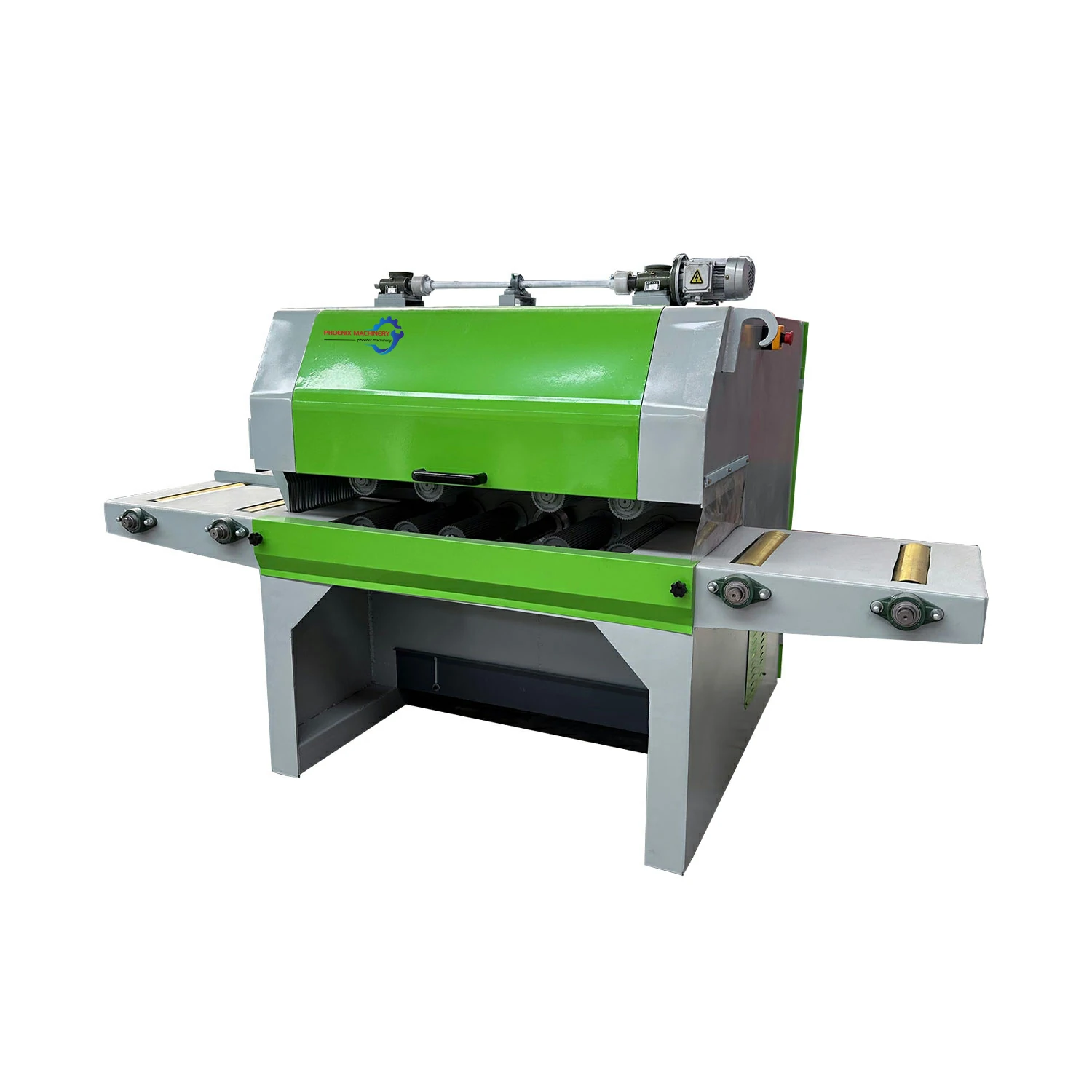

20-80mm Thickness Straight Line Woodworking Square Timber Cutting Saw Machine Wood Slicing Saw Mill Machine

Inquire Now
产品类别

Description

1. It is safe to operate and has a semi-automatic feeding system, so there is no safety hazard. High output, about 20 cubic meters per day (8 hours).

2. The operation is simple, and only ordinary employees can process high-precision sheets. The thickness of the sheet can be adjusted freely, and sawing is used instead of planing. The surface of the finished product is smooth and there is no need to plan again.

3. Ultra-thin saw blade, using 1.2mm—2.6mm. High precision, no problem with big or small heads, reducing processes, reducing wood waste, and increasing wood utilization.

4. The cooling and dust removal system prevents the saw blade from working at high temperature for a long time, prolongs the life of the saw blade and reduces dust.

5. The jacket can be replaced to make different plates;

6. Both long and short materials can be sawed.

Model PFM80+ PFM100+ PFM120+ PFM160+
Feeding Length 350-4000mm 400-4000mm 450-4000m 500-4000mm
Feeding Thickness 20-80mm 30-100mm 30-120mm 30-160mm
Feeding Width Unlimited Unlimited Unlimited Unlimited
Main Power 18.5kw+18.5kw 22kw+18.5kw 22kw+18.5kw 22kw+22kw
Feeding Power 1.1kw 1.1kw 1.1kw 1.1kw
Feed speed( Frequency Control ) 0-20m/min 0-20m/min 0-20m/min 0-20m/min
Spindle diameter 50mm 50mm 50mm 50mm
Saw blade diameter 180mm 205mm 230mm 255mm
Spindle speed 3200r/min 3000r/min 3000r/min 3000r/min
Cooling mode Spindle water cooling Spindle water cooling Spindle water cooling Spindle water cooling
Size 2300*1300*1500mm 2300*1300*1500mm 2300*1300*1500mm 2300*1300*1500mm
Weight 1200kg 1300kg 1350kg 1400kg
Remarks optional Accept customization
