描述
Apply to processing all kinds of MDF, particleboard, plywood, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

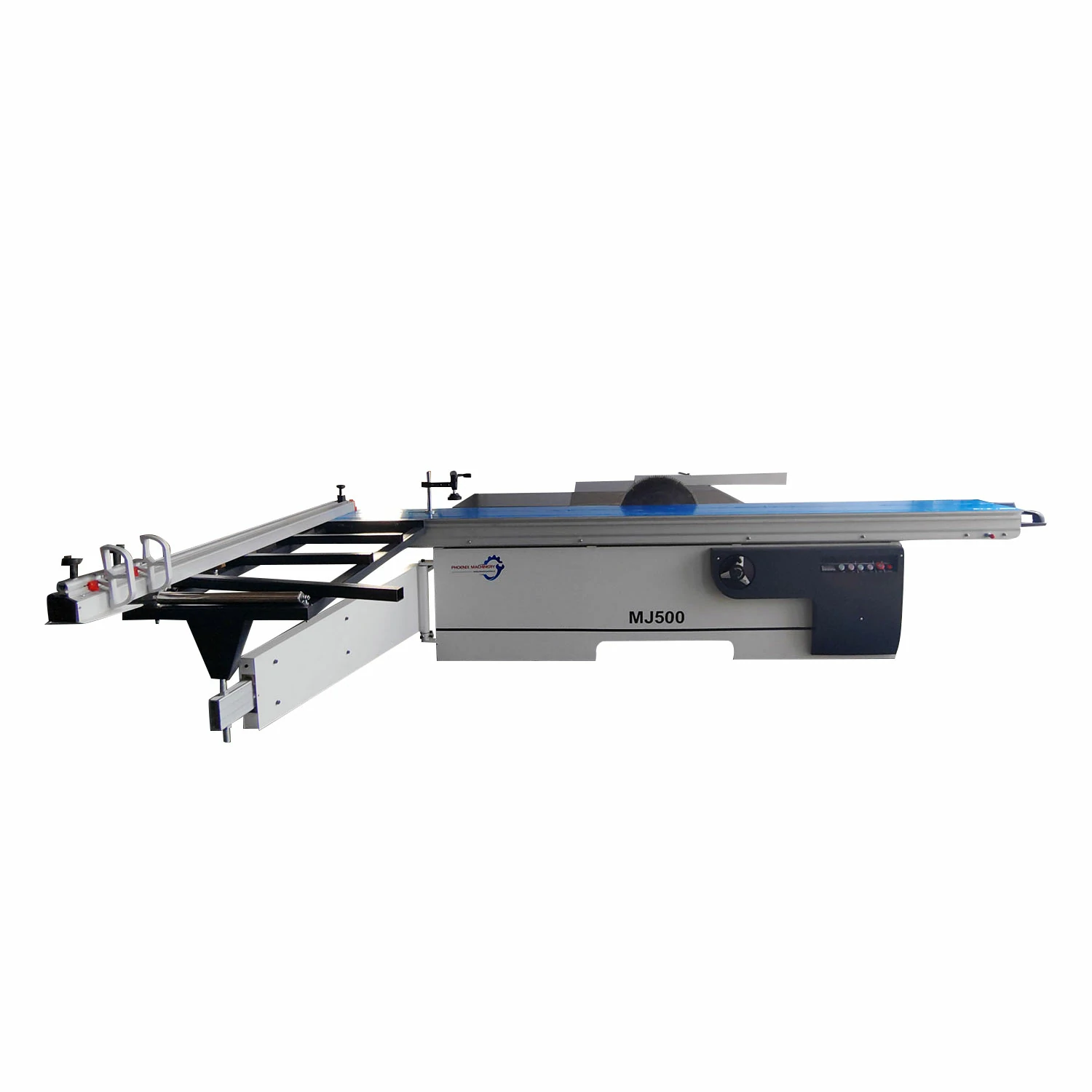

| PANEL SAW MODEL | MJ500 |
| Max cutting length | 3200mm |
| Max cutting width | 3200mm |
| Sliding table length | 3200mm |
| Sliding table width | 375mm |
| Main saw blade diameter | 500mm |
| Main saw spindle speed | 4500-6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 45°-90° |
| Height of cut at 45° | 120mm |
| Height of cut at 90° | 175mm |
| Main motor | 7.5KW |
| Angle digital display | Including |
| Package size | Sliding table: 3300*450*270mm Body: 2820*1130*1140mm |
| Gross weight | 780kg |
