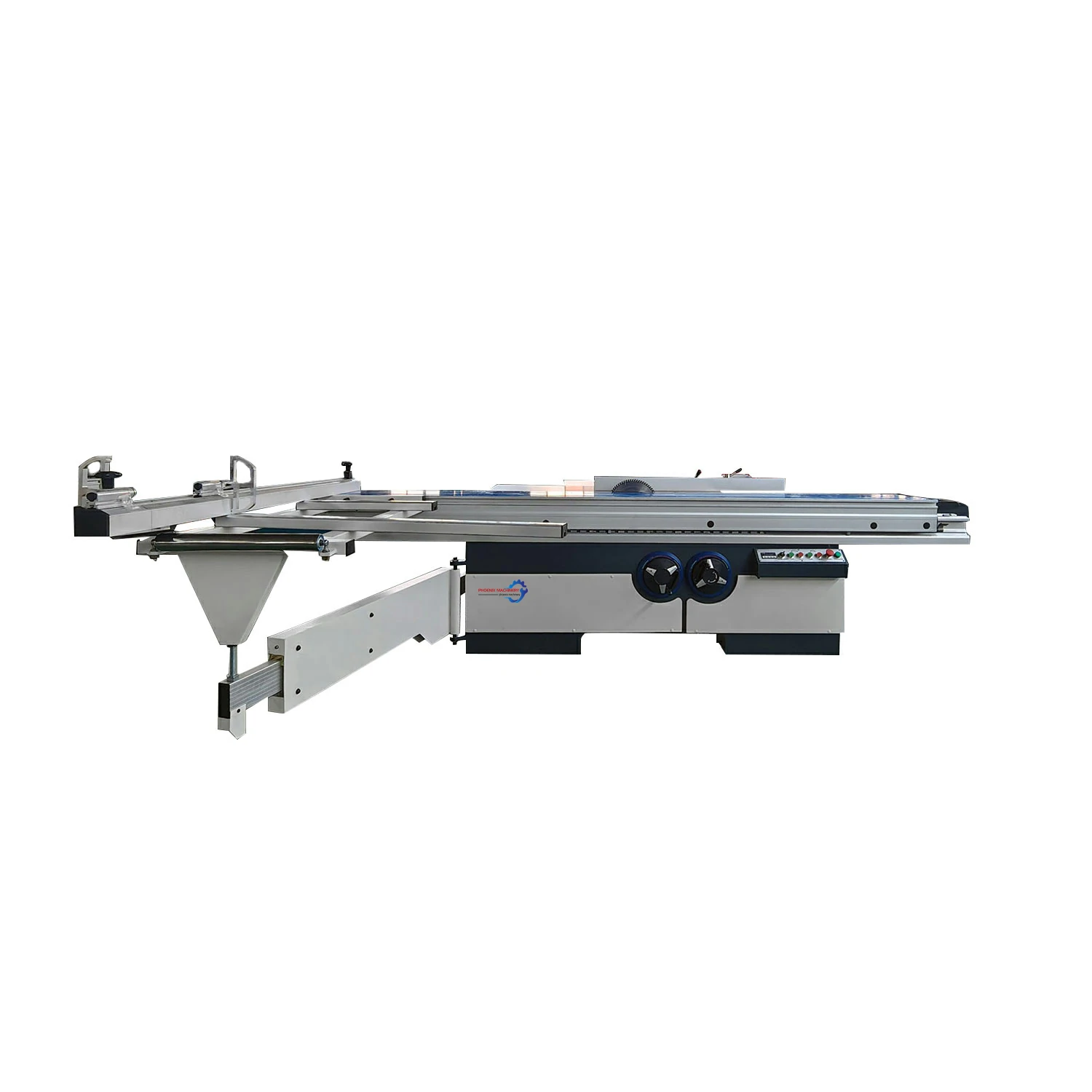

This table saw is mainly used for the longitudinal, transverse or oblique sections of plywood, particleboard, fiberboard, veneer, laminate, blackboard, solid wood board and plastic board to obtain the plates that meet the specifications. The sliding table saw is an ideal equipment for pursuing efficient and accurate cutting in the woodworking industry. It provides a solid guarantee for various woodworking tasks with excellent performance, stable quality and humanized design.
| PANEL SAW MODEL | MJ6132 |
| Max cutting length | 3200mm |
| Max cutting width | 3200mm |
| Sliding table length | 3200mm |
| Sliding table width | 390mm |
| Main saw blade diameter | 300mm |
| Scoring saw blade diameter | 120mm |
| Main saw spindle speed | 4500-6000rpm |
| Scoring saw spindle speed | 9000rpm |
| Main spindle diameter | 30mm |
| Scoring spindel diameter | 20mm |
| Tilting saw blade | 45°-90° |
| Height of cut at 45° | 45mm |
| Height of cut at 90° | 70mm |
| Main motor | 5.5KW |
| Scoring motor | 1.1KW |
| Main saw blade lifting motor | Excluding |
| Angle digital display | Including |
| Package size | Sliding table: 3300*400*240mm Body: 2150*1130*1130mm |
| Gross weight | 750kg |
