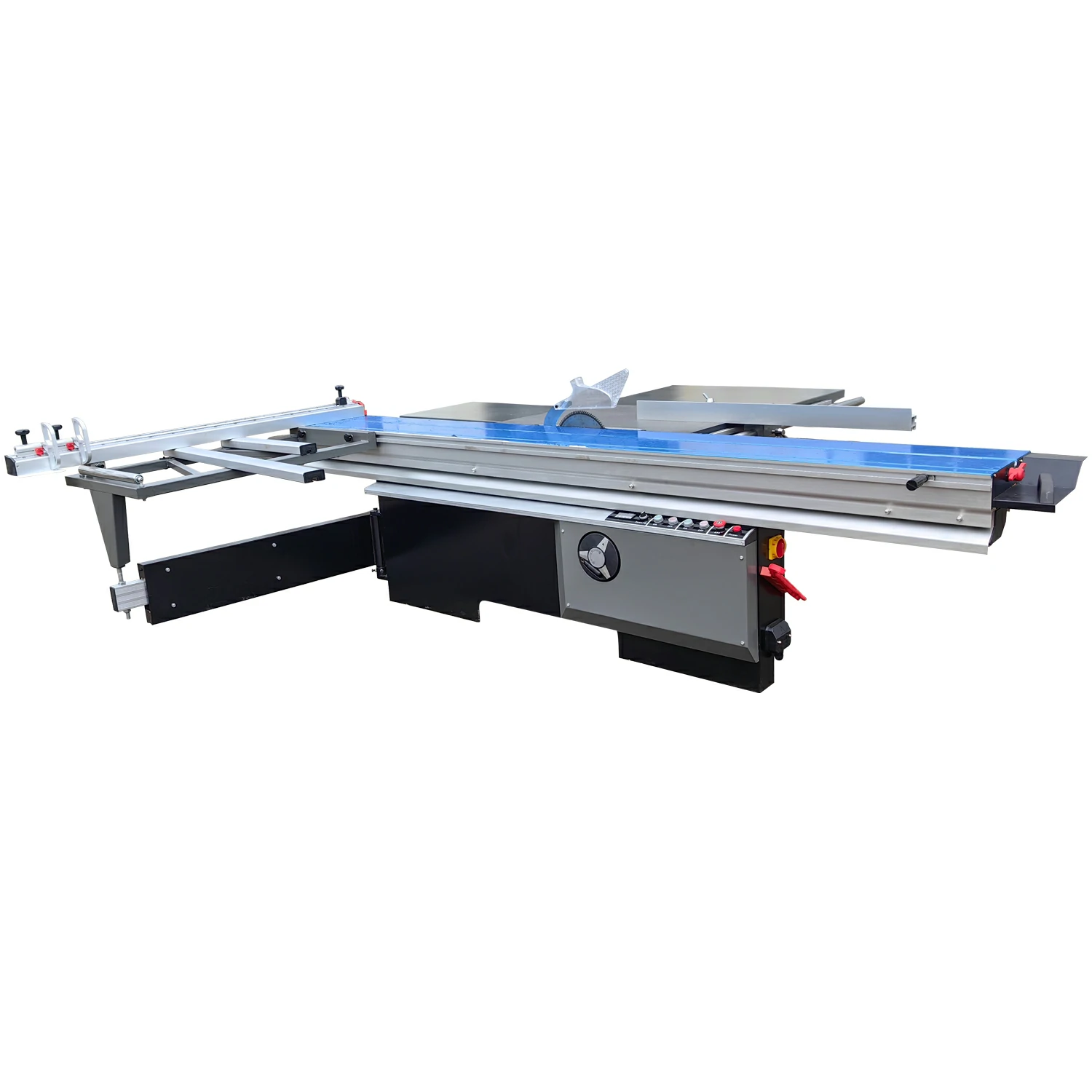

Panel Sliding Table Saw for Wood Industrial Cutting Machine Sliding Table Panel Saw Woodworking Machinery
| PANEL SAW MODEL | Automatic panel saw MJ3200 |
| Max cutting length | 3200mm |
| Max cutting width | 3200mm |
| Sliding table length | 3200mm |
| Sliding table width | 375mm |
| Main saw blade diameter | 300mm |
| Scoring saw blade diameter | 120mm |
| Main saw spindle speed | 4500-6000rpm |
| Scoring saw spindle speed | 9000rpm |
| Main spindle diameter | 30mm |
| Scoring spindel diameter | 20mm |
| Tilting saw blade | 45°-90° |
| Height of cut at 45° | 65mm |
| Height of cut at 90° | 100mm |
| Main motor | 5.5KW |
| Scoring motor | 1.1KW |
| Main saw blade lifting motor | 0.12KW |
| Angle digital display | Contain |
| Gross weight | 800kg |
