1. The operation is light and labor-saving, the driving stroke is large, and the cutting width is large;
2. Equipped with stable and lightweight towing frame, running smoothly;
3. The setting of the mobile table and the main saw blade can be adjusted by 45 degrees,which expands the scope of use of the saw machine.

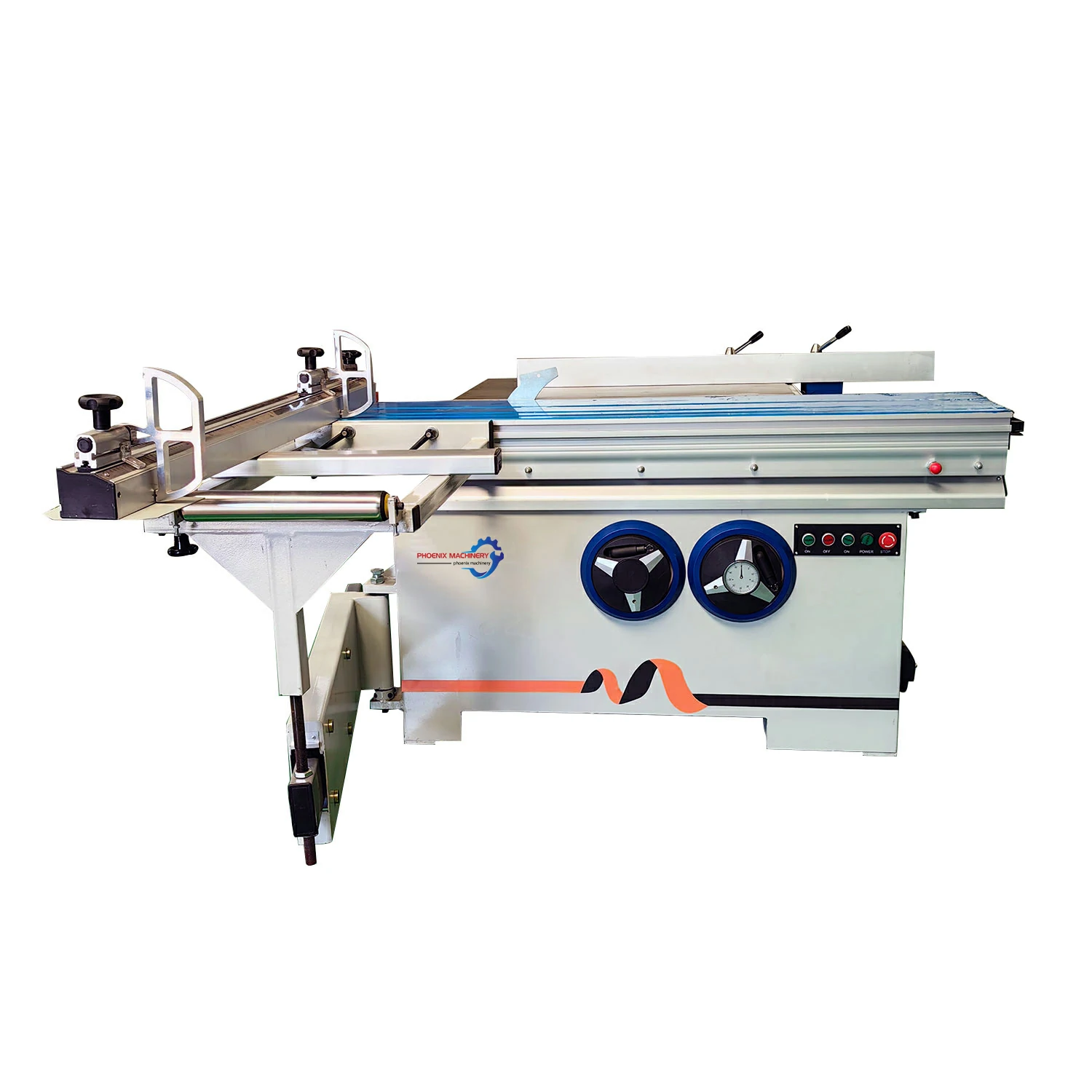

| Model | MJ6116 |
| Sliding table size | 1600*380mm |
| Maximum cutting length | 1600mm |
| Maximum cutting width | 1300mm |
| Main saw blade diameter | 300mm(250-350mm) |
| Maximum cutting thickness (300mm blade diameter) | 75mm |
| Spindle speed | 4000-6000rpm |
| Main spindle diameter | 30mm |
| Tilt angle | 0-45° |

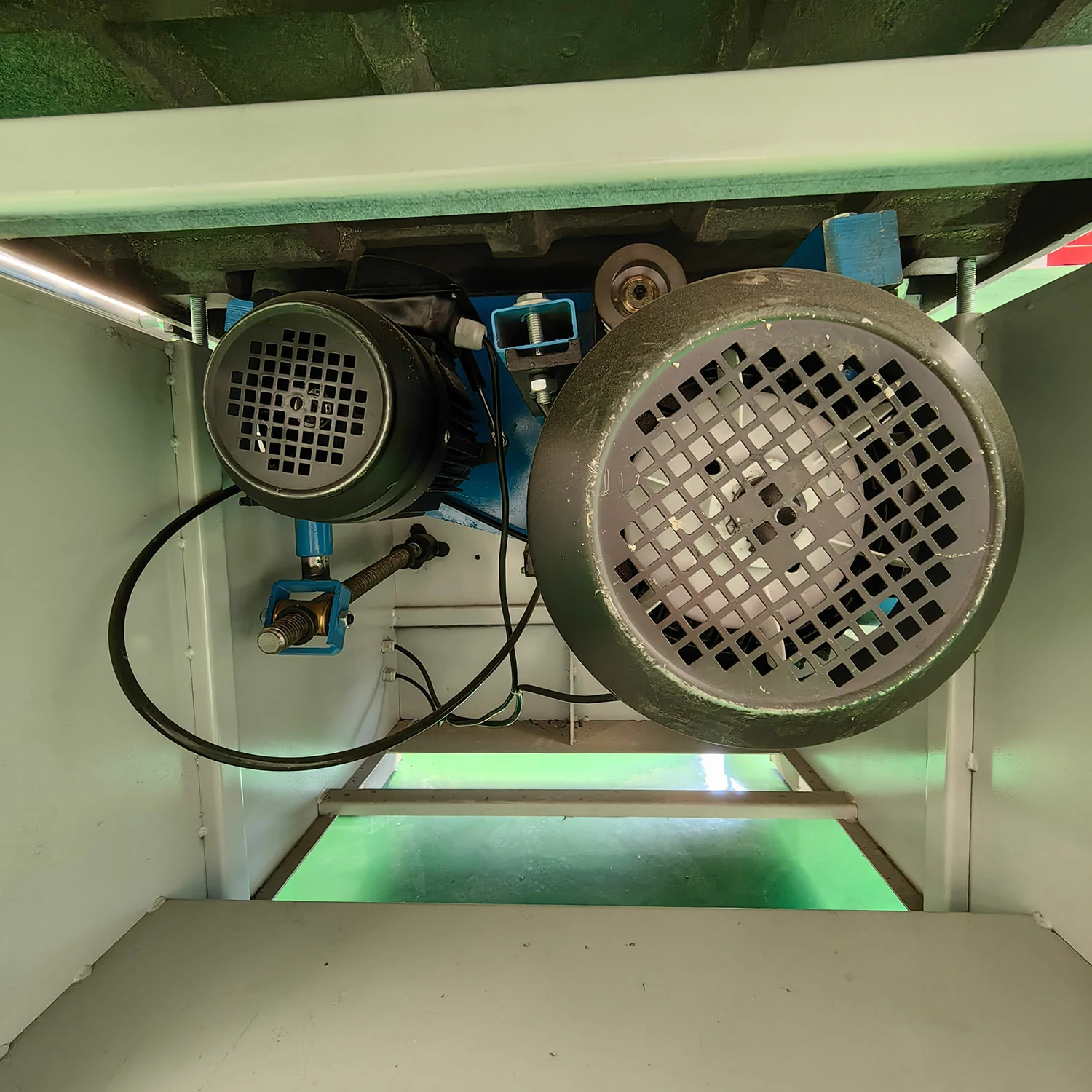

| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 7000-8000rpm |
| Scoring spindle diameter | 20mm |
| Scoring motor power | 1.1kw |
| Overall dimension | 1600*3440*900mm |
