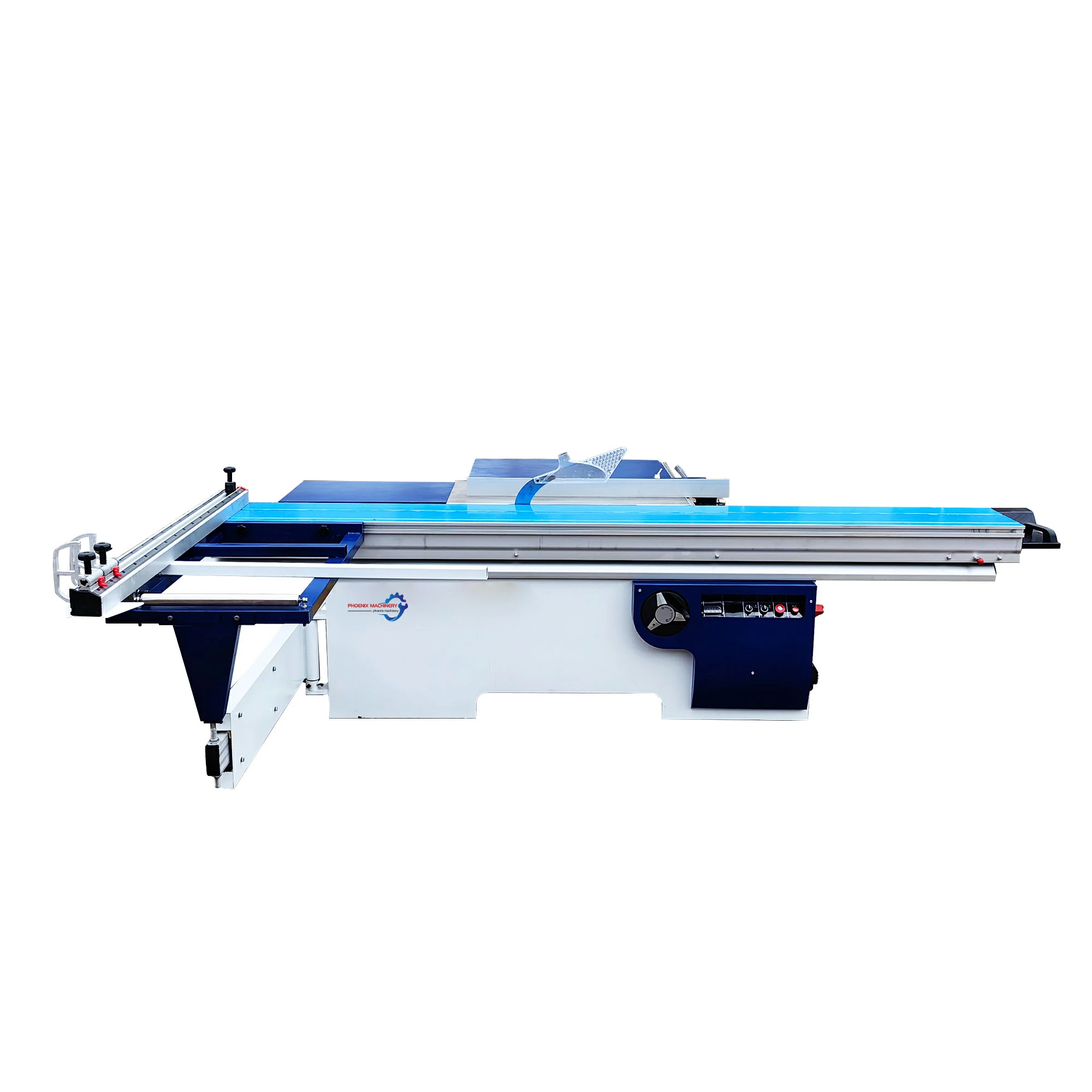

Precision panel saws are also called sliding table saws, precision sliding table saws, woodworking precision panel saws, and precision saw panel sliding table saws. They are easy to operate, stable and safe. It is an indispensable machine for mass production, standardization, mechanization and specialization of furniture.
| PANEL SAW MODEL | Manual panel saw MJ6132 |
| Max cutting length | 3200mm |
| Max cutting width | 3200mm |
| Sliding table length | 3200mm |
| Sliding table width | 375mm |
| Main saw blade diameter | 300mm |
| Scoring saw blade diameter | 120mm |
| Main saw spindle speed | 4500-6000rpm |
| Scoring saw spindle speed | 9000rpm |
| Main spindle diameter | 30mm |
| Scoring spindel diameter | 20mm |
| Tilting saw blade | 45°-90° |
| Height of cut at 45° | 65mm |
| Height of cut at 90° | 100mm |
| Main motor | 5.5KW |
| Scoring motor | 1.1KW |
| Main saw blade lifting motor | Excluding |
| Angle digital display | Including |
| Gross weight | 750kg |
