描述
Wood milling machine is applied to milling planes, grooves, teeth, threads and spline shafts, milling machines can also process more complex curved surfaces,trimming with high efficiency and widely used in the woodworking furniture industry.

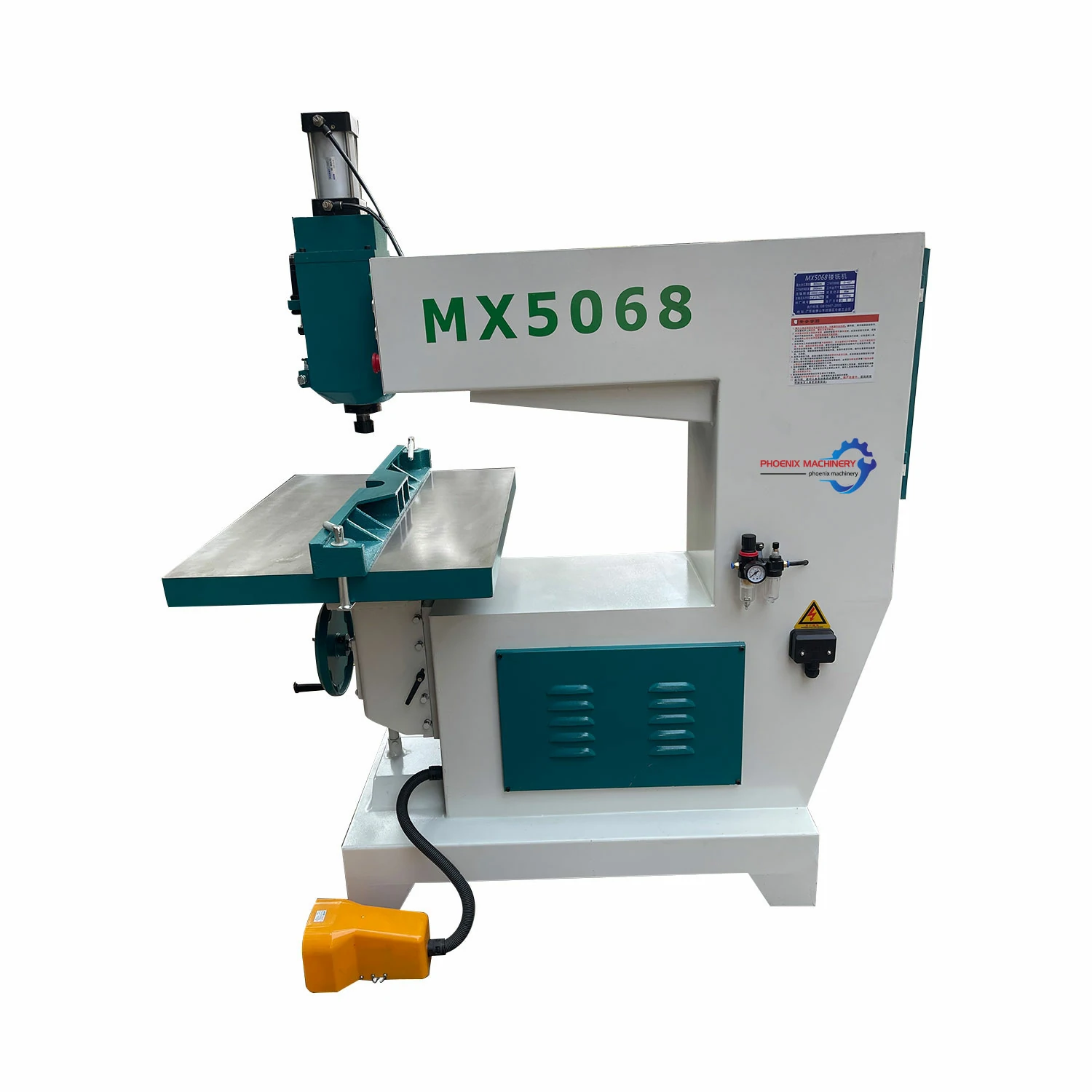

| Model | MX5057 | MX5068 |
| Workbench size | 600×500mm | 600x800mm |
| Max working depth | 50mm | 50mm |
| Workbench lifting stroke | 80 mm | 180 mm |
| Max.workpiece thickness | 150mm | 150mm |
| Lifting method | Workbench lifitng | Spindle lifting |
| Spindle speed | 18000r/min | 18000r/min |
| Tool shank diameter | Φ12.7mm | Φ12.7mm |
| Installation power | 2.2kw/3kw | 3kw/4kw |
| Spindle lifting stroke | No | 75mm |
| weight | 260kg | 500kg |
| Overall dimension | 1520*800*1500 | 1470*800*1700mm |
