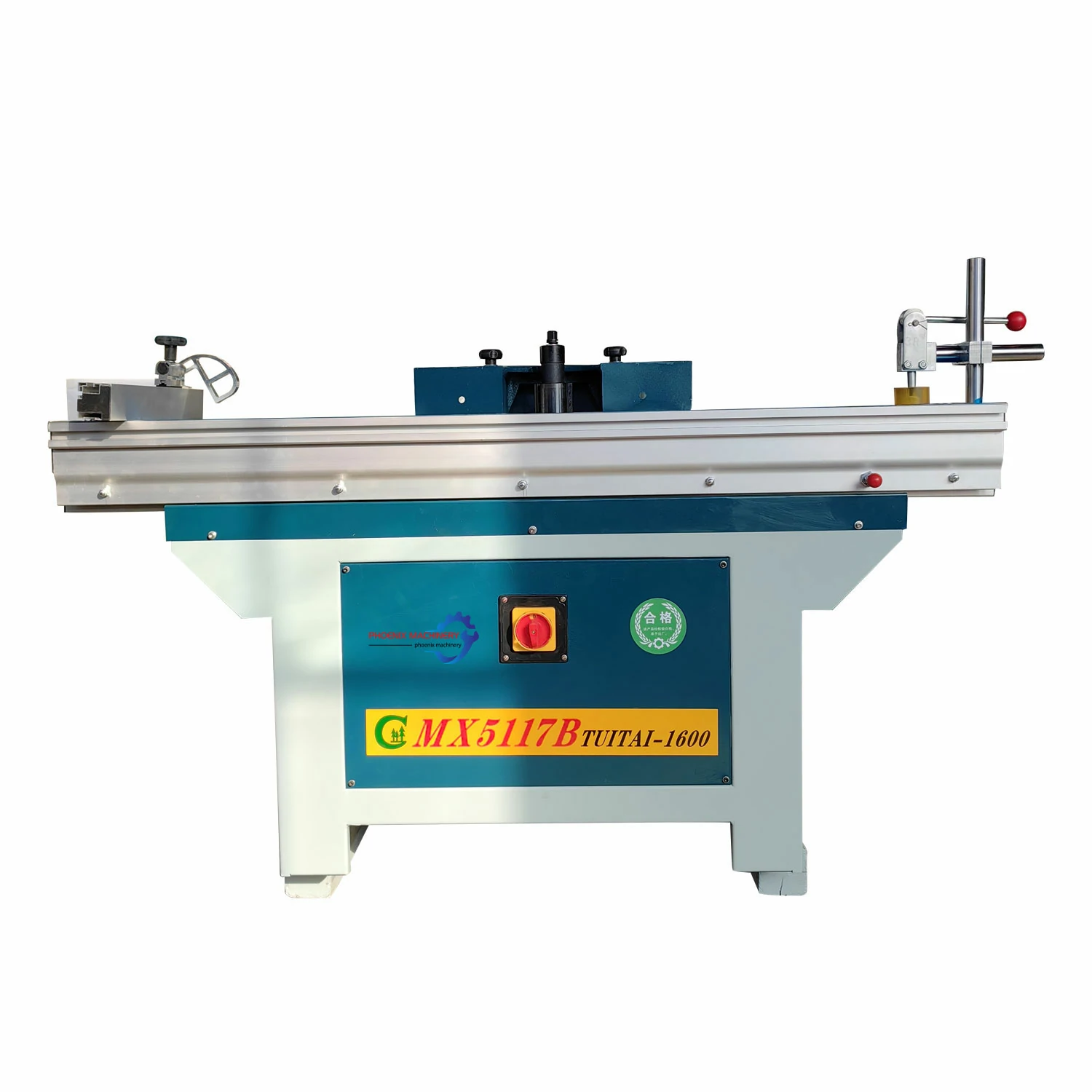

Wood Spingle Moulder machine is mainly a machine tool with milling cutter to process various surfaces on the workpiece. Generally, the rotary motion of milling cutter is the main motion, and the movement of workpiece (and) milling cutter is feed motion. It can process planes and grooves, as well as various curved surfaces.
| Model | MX5117A | MX5117B |
| Platform size | 1600*780mm | 1600*780mm |
| Spindle diameter | 35mm | 35mm |
| Spindle speed | 6000/8000/10000r/min | 6000/8000/10000r/min |
| Maximum machining thickness | 120mm | 120mm |
| Maximum spindle lifting height | 200mm | 200mm |
| Spindle power | 4KW | 5.5KW |
| Machine size | 1600*780*950mm | 1600*780*950mm |
| Machine weight | 370KG | 370KG |
