FM9011(24)
FM9011(24) - Image 2
FM9011(24) - Image 3
FM9011(24) - Image 4

FM9011(24)

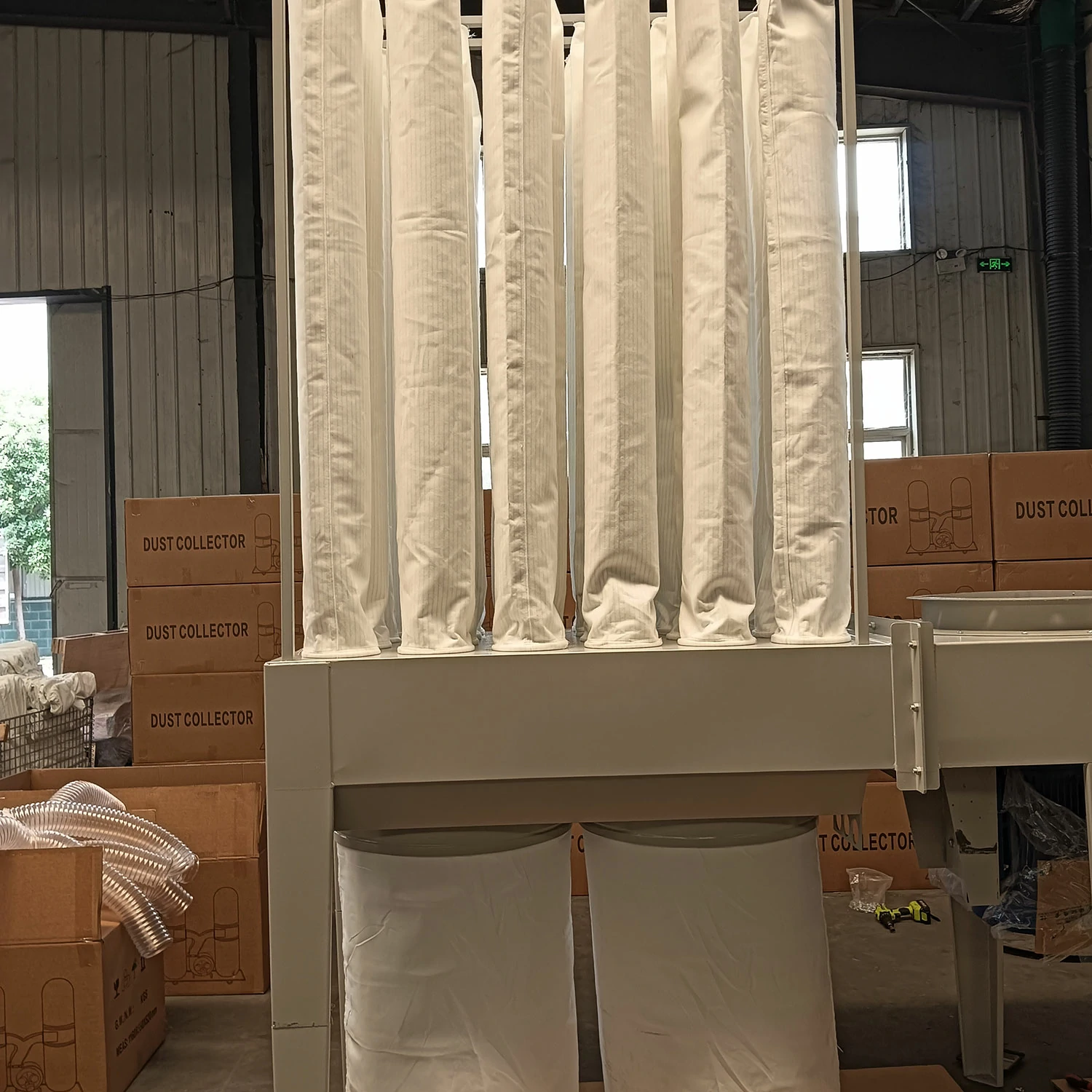

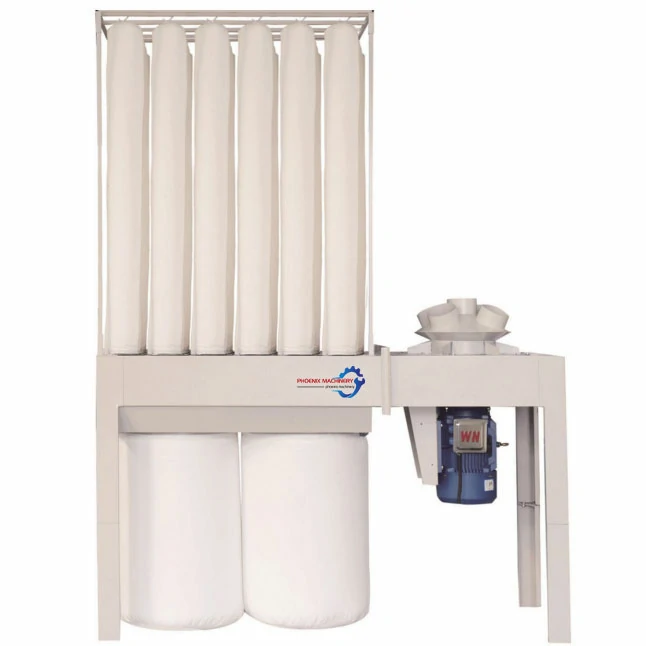

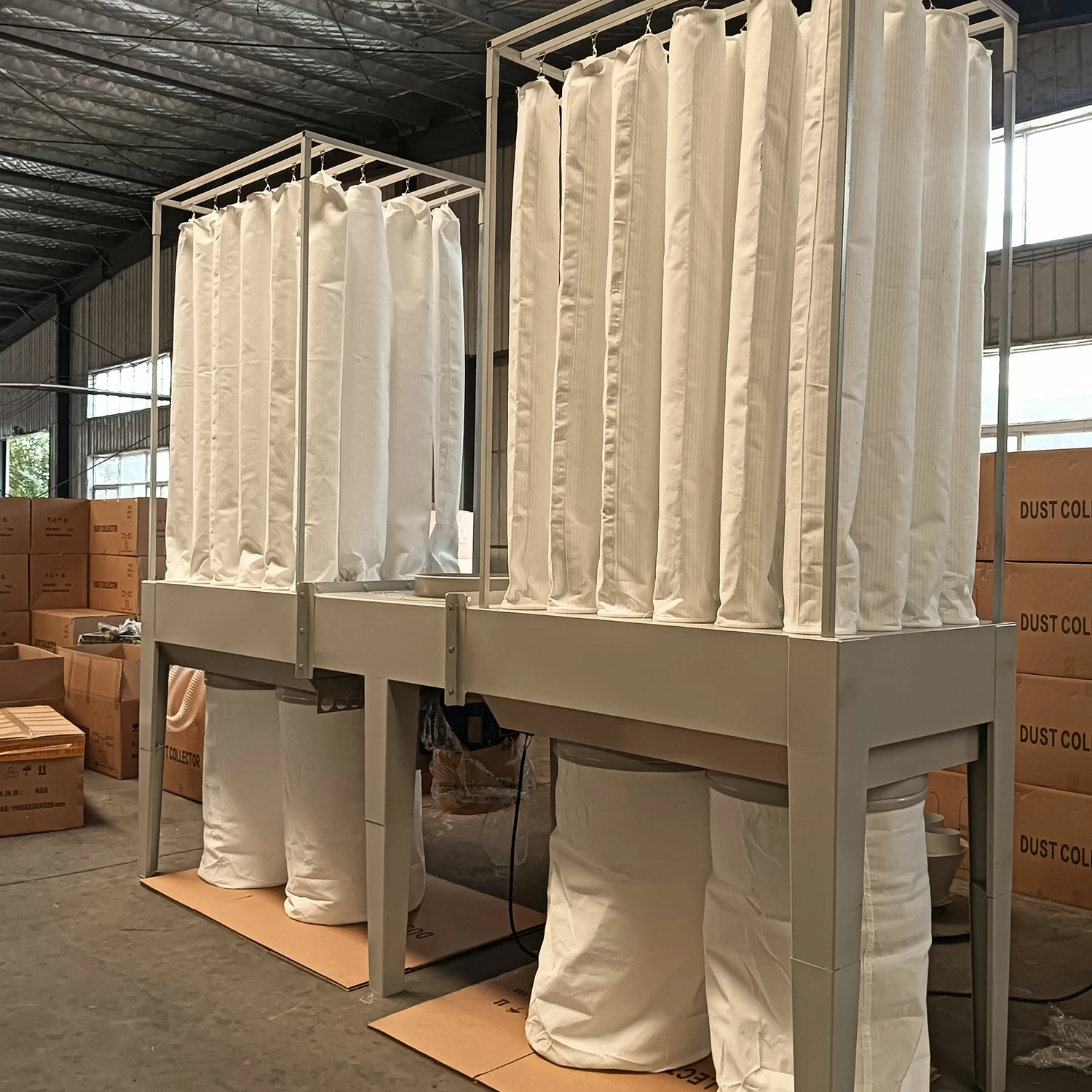

Woodworking 24 36 48 Bags Large Big Industrial Dust Collector Vacuum Dust Extractor

Inquire Now
产品类别

Description

Gases from dust collection principle: when the dust bag suction machine after entry into the guide tube into the room, each unit under the effect of guiding device, large particles of dust separation after directly into the hopper, the rest of the dust chamber filter with airflow uniformity in the storehouse district of filter bag, when wear dust gas filter bag, dust was adsorbed on the filter bag, and purified gases from the filter bag inside out.

MODEL FM9011(24) FM9011(36) FM9011(48)
Motor（kw) 11KW 11kw 11KW
Fan diameter(mm) 600 660 710
Inlet diameter(mm) 5*150 5*150 5*150
Air flow 11000 13000 18000
Filter bag dia-upper（mm) 175*1950*24 175*1950*36 175*1950*48
Collecting bag dia-lower(mm) 630*1000*2 630*1000*3 630*1000*4
Overall dimension(mm) 2250*1040*1000 2920*1040*1000 3650*1040*1000
Packing size(mm) 2350*1150*1150 3050*1150*1150 3750*1150*1150
Net weigjht（KG） 390 460 660
Gross weight（KG） 460 530 720
