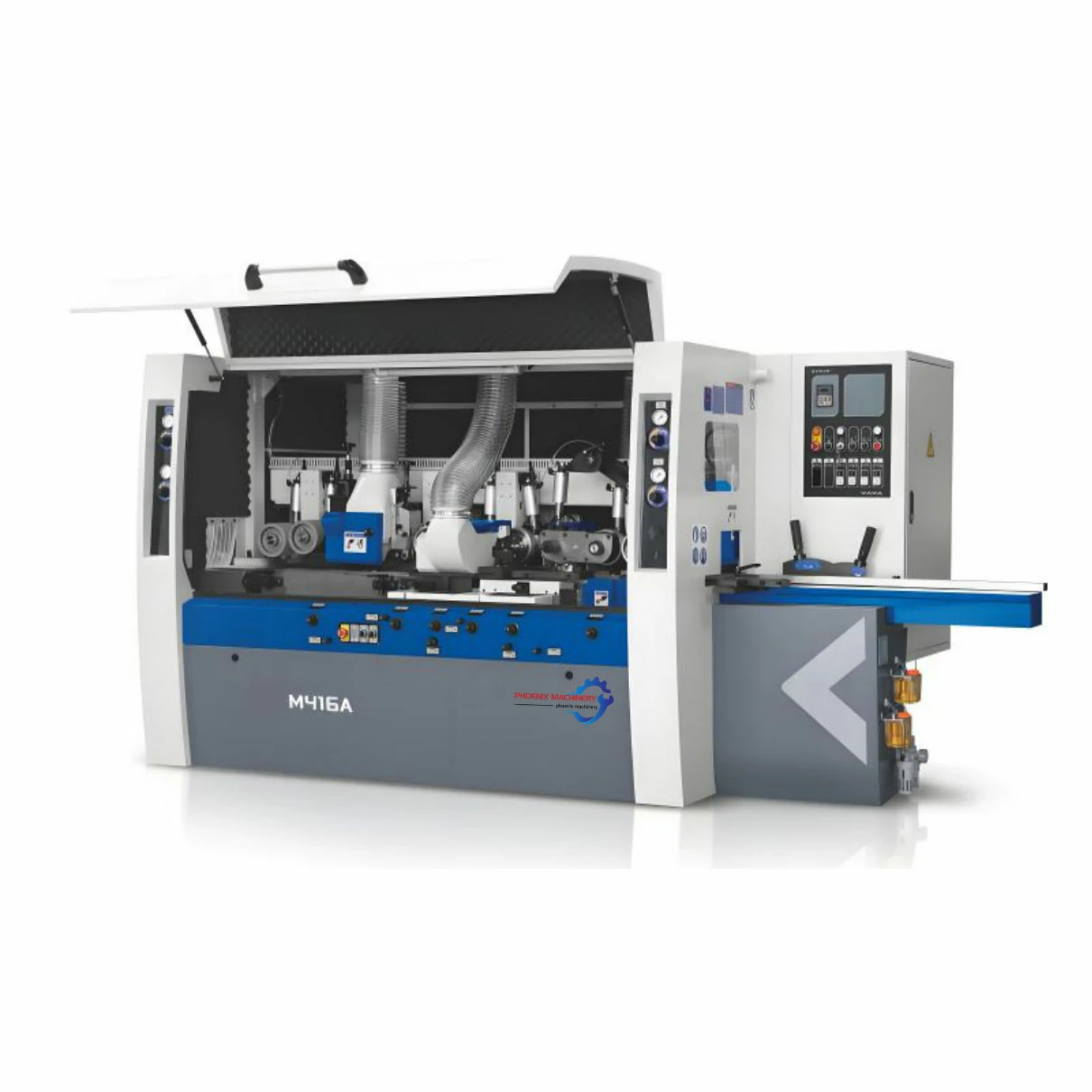

M416A

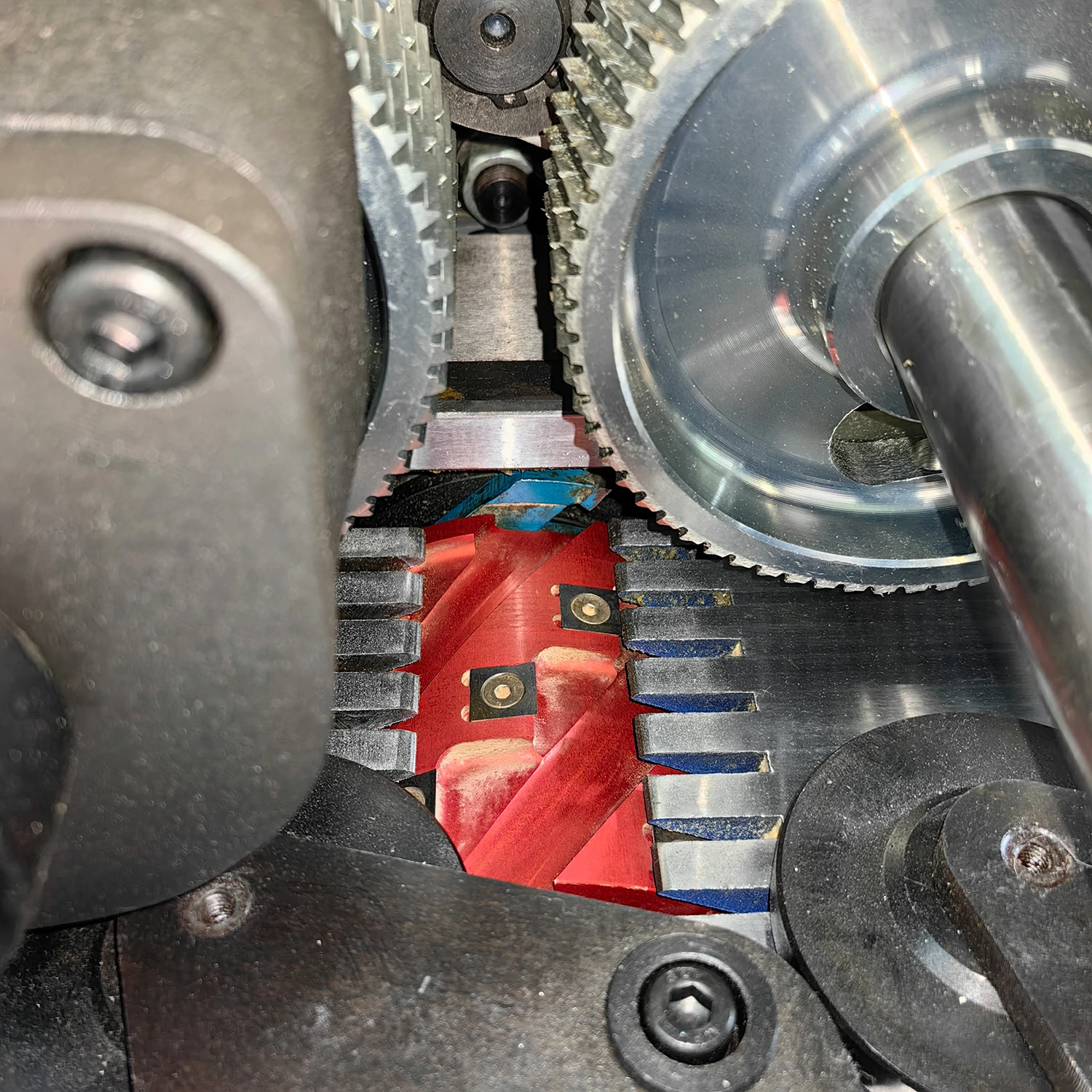

M416A - Image 2

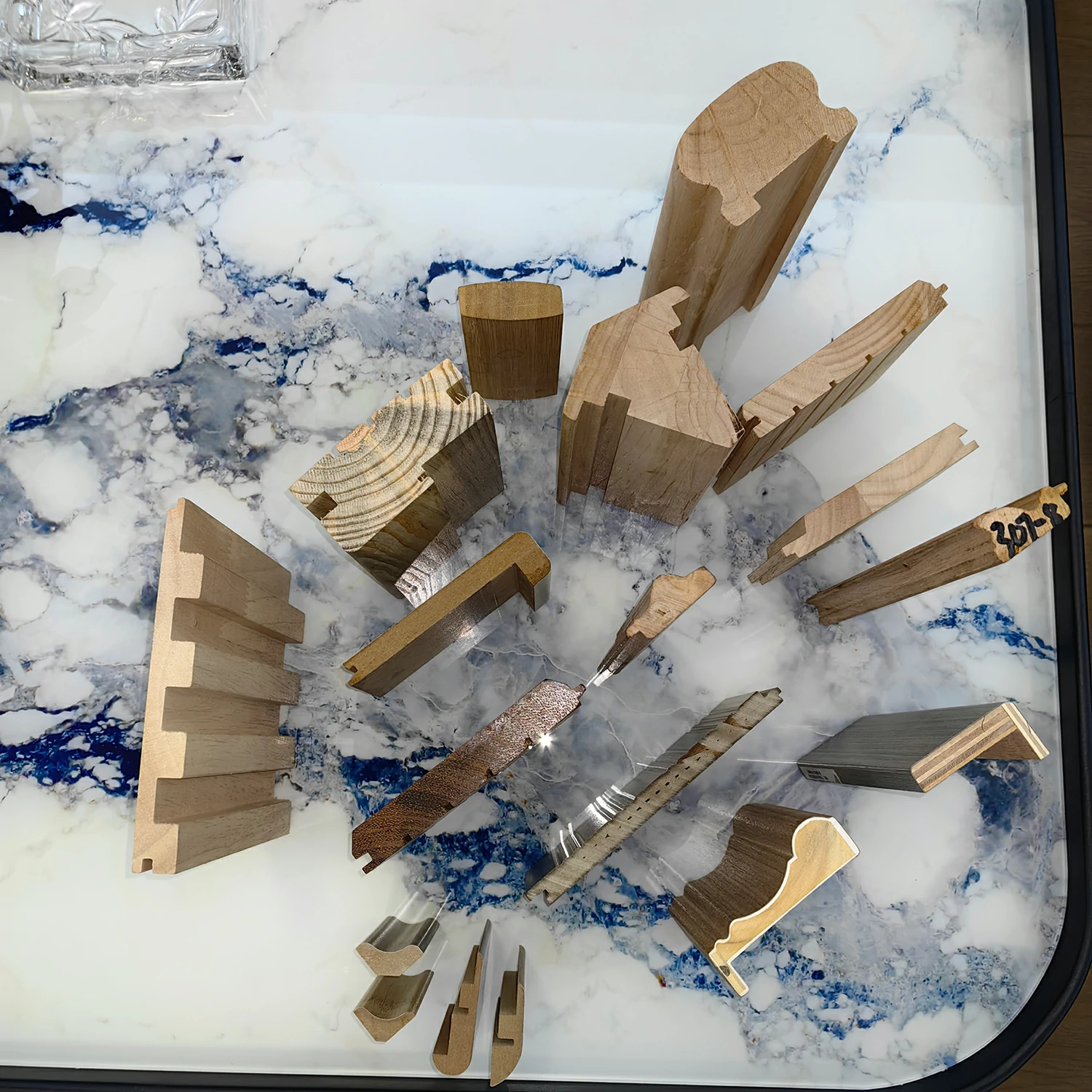

M416A - Image 3

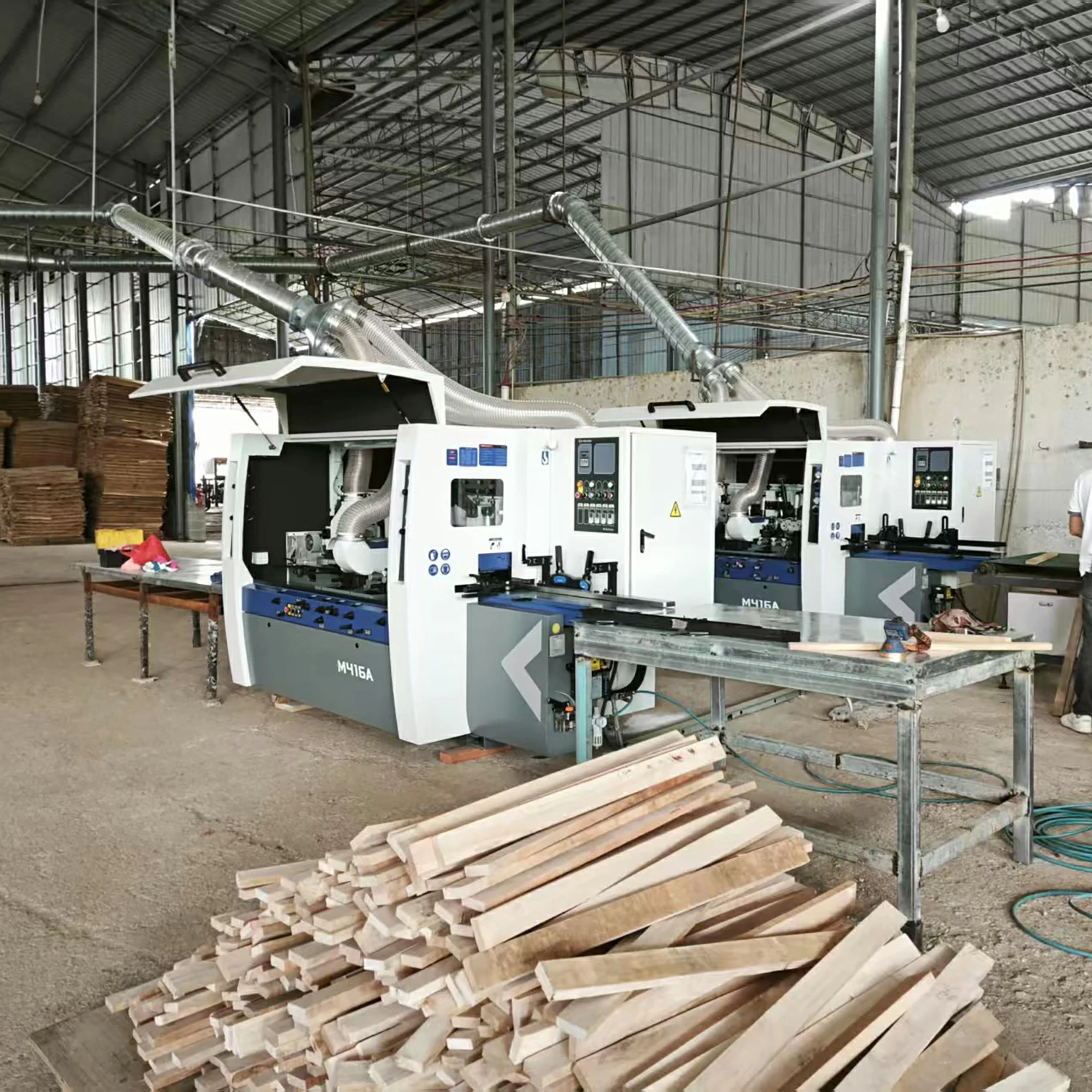

M416A - Image 4

M416A

Good Price Wood Planers 4 Side Planer Moulder Wood Four Side Timber Moulder Machine with 4 Spindle

Inquire Now
产品类别

Description

1.Adopt stepless speed regulation with the feeding speed of 6-36 M / min
2.Each spindle driven by an independent motor, with strong cutting force.
3.Spindle adjustment is in the front, easy to operate.
4.Electroplating countertops with good wear resistance
5.The lower initiative rollers improves the feeding effect
6.Fully enclosed safety shield, effectively avoid sawdust flying and isolate noise
7.Pneumatic pressure type feed wheel, adjust the clamping force sectionally,is good for smooth feeding of wood profile with different thickness
8.Configured auxiliary device for short profile to promote the smooth feed.

Model M416A M418A M421A M423A
Working width (mm) 25-160 25-180 25-210 25-230
Working thickness(mm) 8-120 8-130 8-140 8-160
in-feed-table length (mm) 1500 1500 1970 1970
Feeding speed (m/min) 6-36 6-36 6-36 6-36
Spindle diameter(mm) ⌀40 ⌀40 ⌀40 ⌀40
Spindle revolution speed (r/min) 6200 6200 6200 6200
Air pressure(Mpa) 0.6 0.6 0.6 0.6
1st Bottom spindle motor 4KW/5.5HP 5.5KW/7.5HP 5.5KW/7.5HP 7.5KW/10HP
Right vertical spindle motor 4KW/5.5HP 5.5KW/7.5HP 5.5KW/7.5HP 7.5KW/10HP
Left vertical spindle motor 5.5KW/7.5HP 5.5KW/7.5HP 5.5KW/7.5HP 7.5KW/10HP
1st Top spindle motor 5.5KW/7.5HP 7.5KW/10HP 7.5KW/10HP 11KW/15HP
Feeding beam lifting motor 0.55KW/0.75HP 0.55KW/0.75HP 0.75KW/1HP 0.75KW/1HP
Feeding motor 3KW/4HP 4KW/5.5HP 4KW/5.5HP 4KW/5.5HP(MDCR)
Total power 22.55KW/31HP 28.55KW/39HP 28.75KW/39.5HP 38.25KW/52HP
1st Bottom spindle diameter(mm) ⌀125 ⌀125 ⌀125 ⌀125
Right vertical spindle diameter(mm) ⌀125-⌀160 ⌀125-⌀160 ⌀125-⌀180 ⌀125-⌀180
Left vertical spindle diameter(mm) ⌀125-⌀160 ⌀125-⌀160 ⌀125-⌀180 ⌀125-⌀180
1st Top spindle diameter(mm) ⌀125-⌀160 ⌀125-⌀160 ⌀125-⌀180 ⌀125-⌀180
Feeding wheel diameter (mm) ⌀140 ⌀140 ⌀140 ⌀140
Dust outlet diameter (mm) ⌀140 ⌀140 ⌀140 ⌀140
Overall dimensions(mm) L3250×W1550×H1720 L3250×W1550×H1720 L3850×W1770×H1880 L3850×W1770×H1880
Weight  (kg) 3100 3200 3800 3900
Air volume 10500M³/h 10500M³/h 10500M³/h 10500M³/h
