The series of high precision, low noise, power saving, high efficiency, easy adjustment, long life.
The structure is safe and reliable, easy to use and maintenance, reasonable price, stable operation, beautiful, generous.
Thickness of sheet size available, continuous operation.

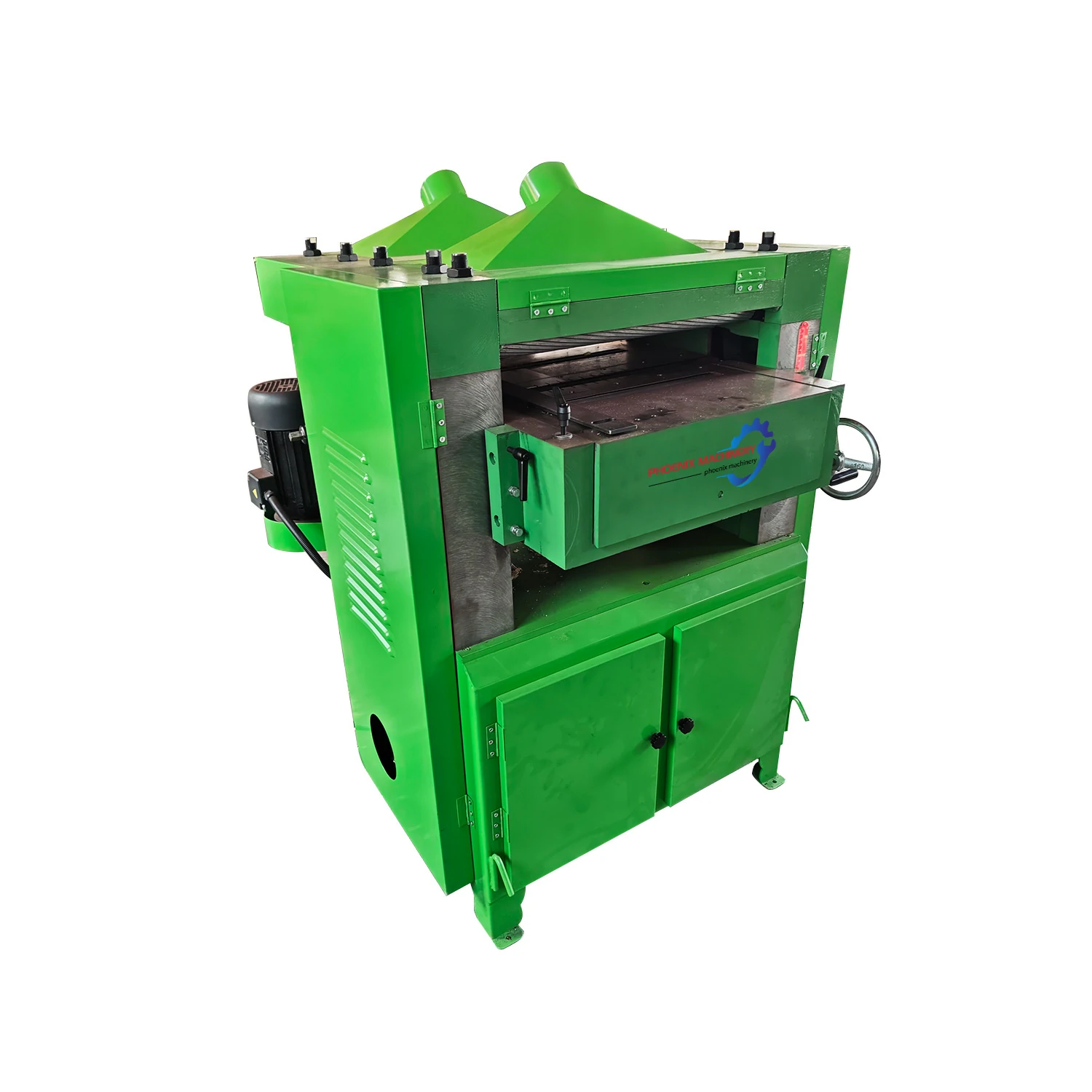

This machine is mainly used for the plane on the 4 parts of the wood products, surface planing, chamfer, line, straight edge etc.
| Model | MB404A |
| Max. working width (mm) | 400 |
| Min. working width (mm) | 20 |
| Entrance of thicknesser (mm) | 15-120 |
| Min working length (mm) | 250 |
| Up arbor cutting depth (mm) | 3 |
| Down arbor cutting depth (mm) | 5 |
| Left and right arbor cutting depth (mm) | 5 |
| Up and down arbors rotation speed (rpm) | 8000 |
| Up and down arbors motor (KW) | 5.5 |
| Left and right arbors rotation speed (rpm) | 7000 |
| Left and right arbors motor (KW) | 3kw*2 |
| Feeding speed (m/min) | 9.2/7.5 |
| Machine size(mm) | 1300*1100*1500 |
| Net/Gross Weight(kg) | 800/850 |
