描述

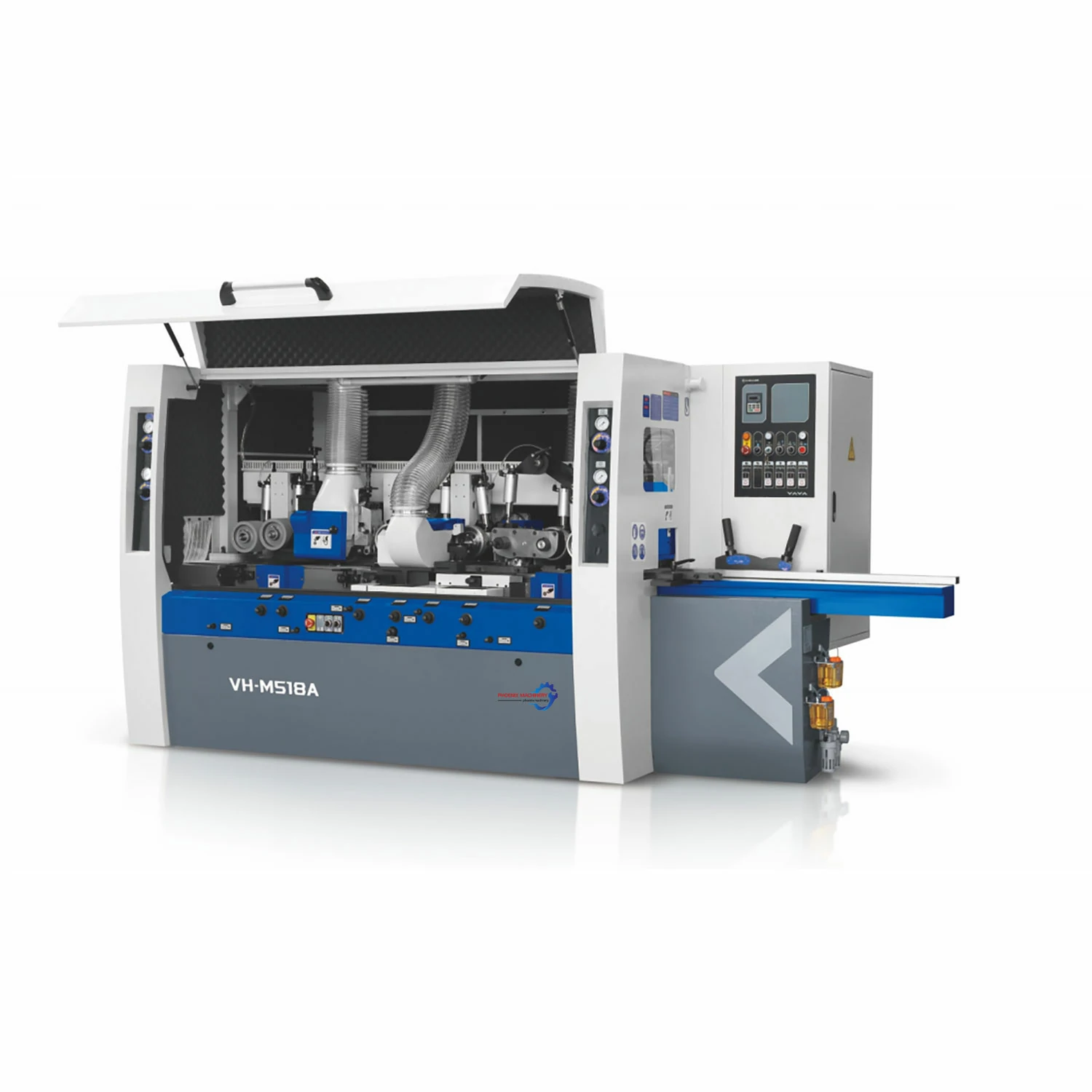

Four Side Planer Moulder with 5 Spindles Cnc Controller Thicknesser 120mm Wood Planing Machine.
| Model | M516A | M518A | M521A | M523A |
| Working width (mm) | 25-160 | 25-180 | 25-210 | 25-230 |
| Working thickness(mm) | 8-120 | 8-130 | 8-140 | 8-160 |
| in-feed-table length (mm) | 1500 | 1500 | 1970 | 1970 |
| Feeding speed (m/min) | 6-36 | 6-36 | 6-36 | 6-36 |
| Spindle diameter(mm) | ⌀40 | ⌀40 | ⌀40 | ⌀40 |
| Spindle revolution speed (r/min) | 6200 | 6200 | 6200 | 6200 |
| Air pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| 1st Bottom spindle | 4KW/5.5HP | 5.5KW/7.5HP | 5.5KW/7.5HP | 7.5KW/10HP |
| Right vertical spindle | 4KW/5.5HP | 5.5KW/7.5HP | 5.5KW/7.5HP | 7.5KW/10HP |
| Left vertical spindle | 5.5KW/7.5HP | 5.5KW/7.5HP | 5.5KW/7.5HP | 7.5KW/10HP |
| 1st Top spindle | 5.5KW/75HP | 7.5KW/10HP | 7.5KW/10HP | 11KW/15HP |
| 2nd Bottom spindle | 4KW/5.5HP | 5.5KW/7.5HP | 5.5KW/7.5HP | 7.5KW/10HP |
| Feeding beam lifting | 0.55KW/0.75HP | 0.55KW/0.75HP | 0.75KW/1HP | 0.75KW/1HP |
| Feeding motor | 3KW/4HP | 4KW/5.5HP | 4KW/5.5HP | 4KW/5.5HP(MDCR) |
| Total power | 26.55KW/36.5HP | 34.25KW/46.5HP | 34.25KW/47HP | 45.75KW/62HP |
| 1st Bottom spindle | ⌀125 | ⌀125 | ⌀125 | ⌀125 |
| Right vertical spindle | ⌀125-⌀160 | ⌀125-⌀160 | ⌀125-⌀180 | ⌀125-⌀180 |
| Left vertical spindle | ⌀125-⌀160 | ⌀125-⌀160 | ⌀125-⌀180 | ⌀125-⌀180 |
| 1st Top spindle | ⌀125-⌀160 | ⌀125- ⌀160 | ⌀125-⌀180 | ⌀125-⌀180 |
| 2nd Bottom spindle | ⌀125-⌀180 | ⌀125-⌀180 | ⌀125-⌀200 | ⌀125-⌀200 |
| Feeding wheel diameter (mm) | ⌀140 | ⌀140 | ⌀140 | ⌀140 |
| Dust outlet diameter (mm) | ⌀140 | ⌀140 | ⌀140 | ⌀140 |
| Overall dimensions(mm) | L3250×W1550×H1720 | L3250×W1550×H1720 | L3850×W1770×H1880 | L3850×W1770×H1880 |
| Weight (kg) | 3300 | 3400 | 4100 | 4200 |
| Air volume | 10500M³/h | 10500M³/h | 10600M³/h | 10600M³/h |
