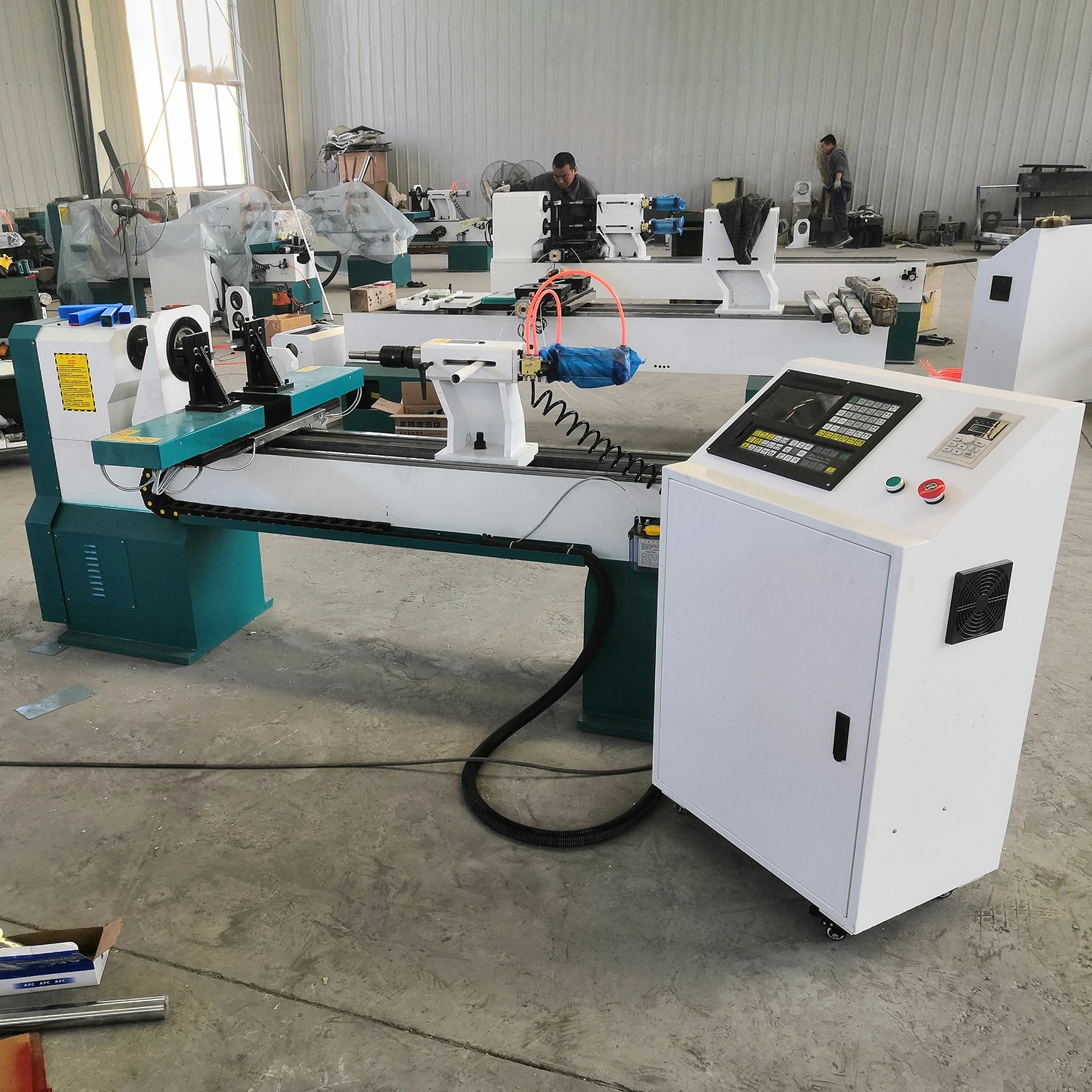

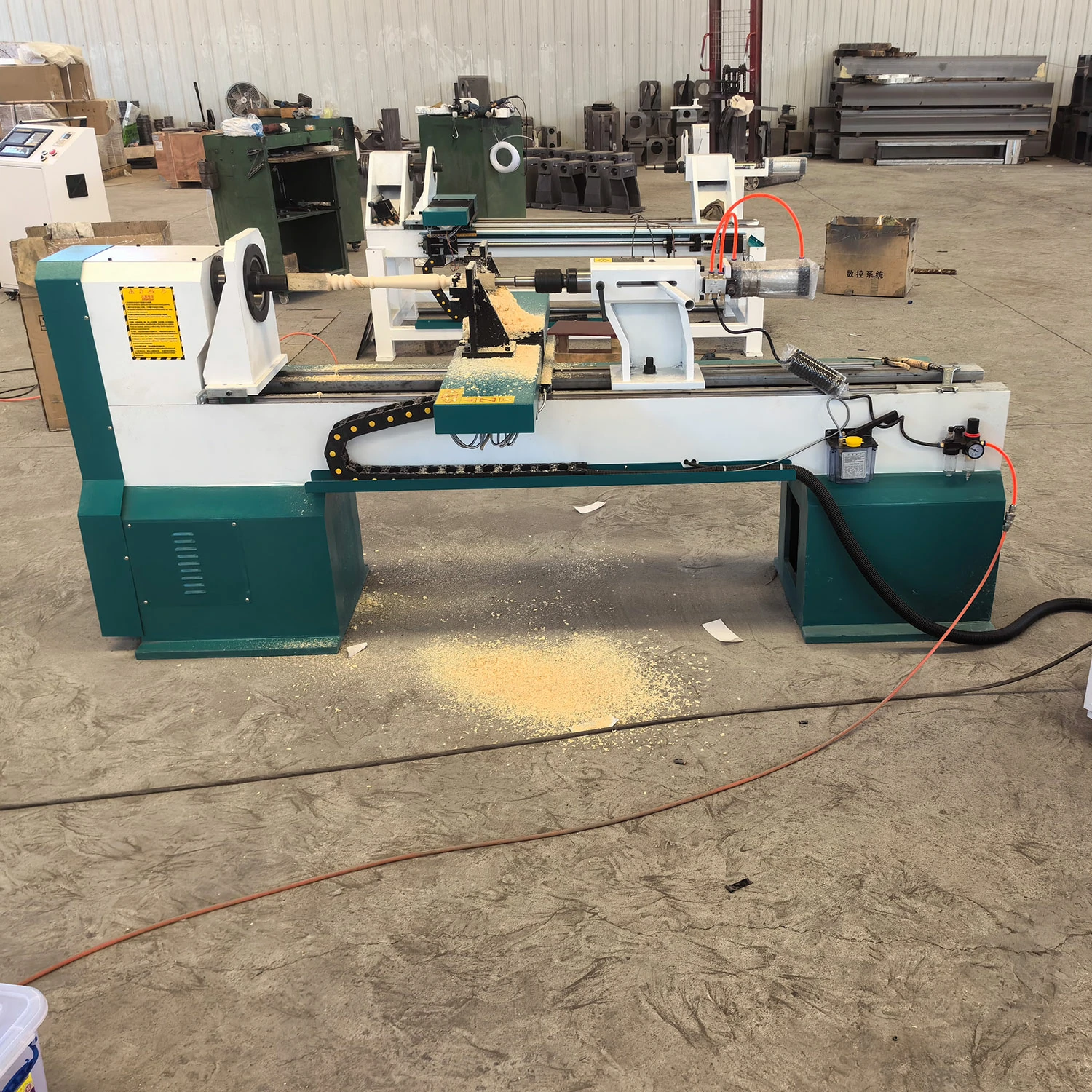

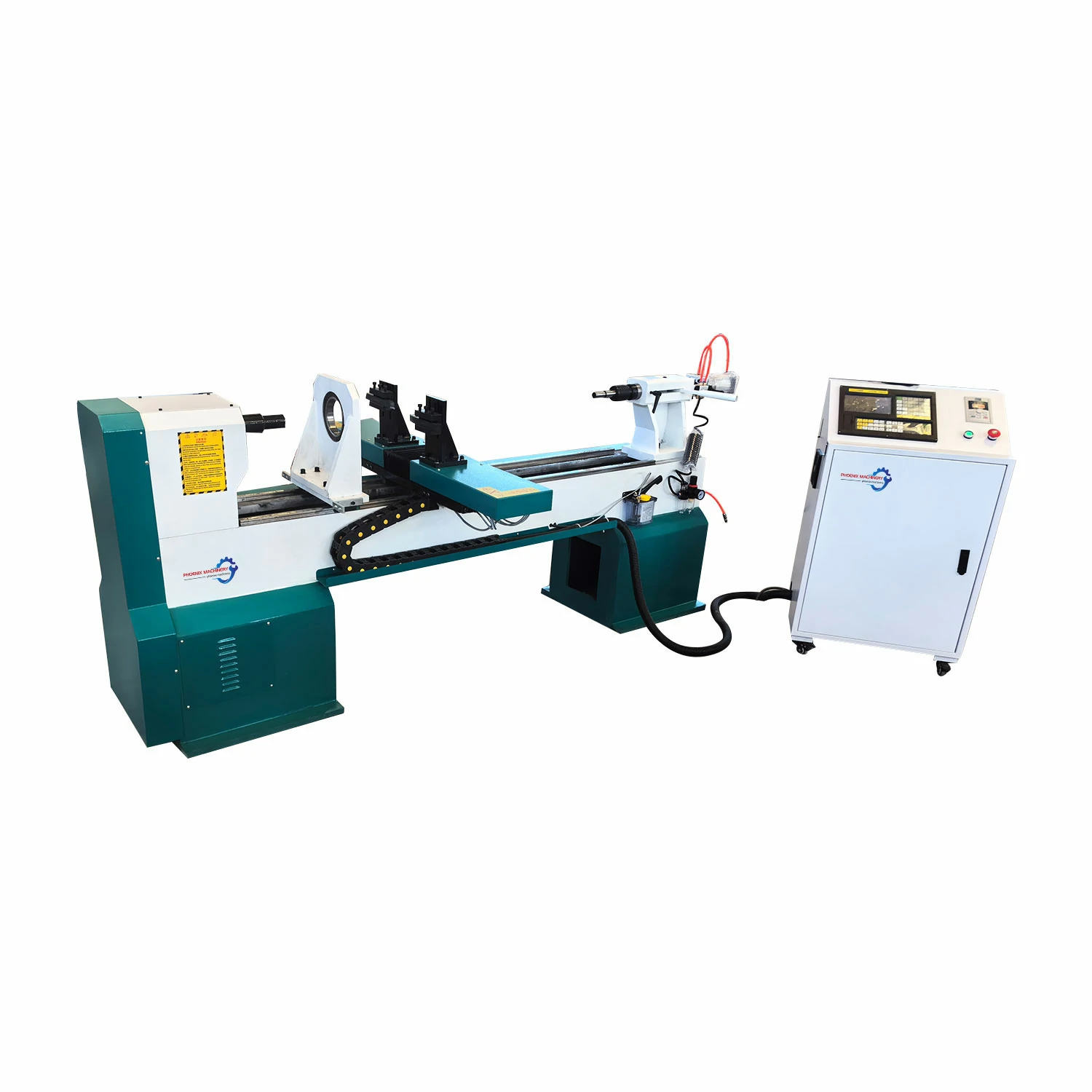

PL1220

Wood Single Double Axis CNC Wood Lathe Cutter For Wood Turning Working Length 1000mm

描述

Application:

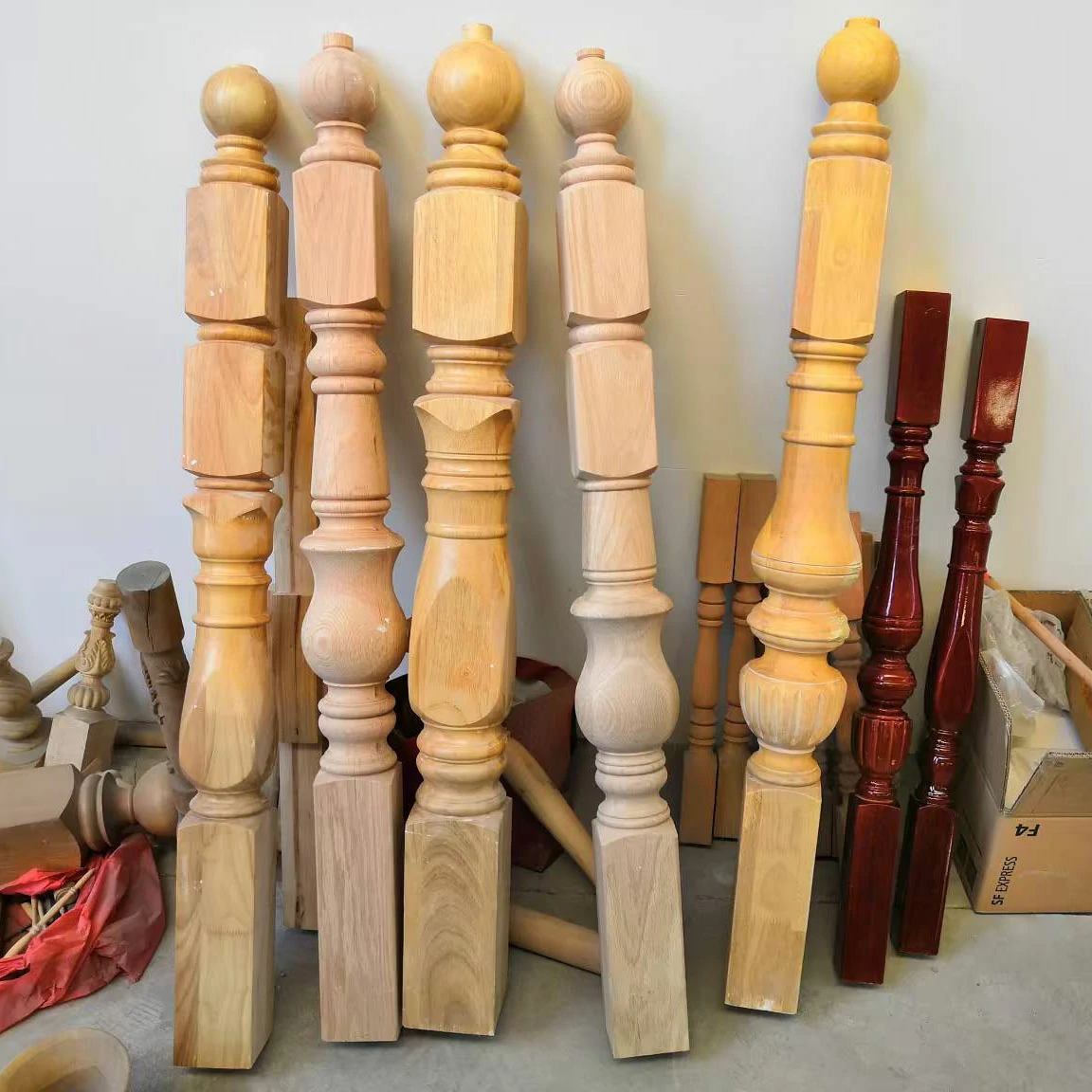

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs, Roman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children’ s bed column, chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts; baseball bats and so on.

Model PL1220
Max processing length 1200mm
Max turning diameter 200mm
Air pressure 0.6-0.8Mpa
Power supply AC 380V 3 phase 50HZ/60HZ(Customized voltage 220V)
Max feed rate 2000mm/min
Min setting unit 0.01cm
Transmission type Ball screw for Y axis
Main shaft rotating speed 0-3000r/min
Motor power 4kw
Cutter material Hard alloy blade
Control System Lcd screen control system
Hand controller recognise file *.dxf
Drawing Software AutoCAD
Command Language G code
Size 2300*1100*1000mm
