- Whole machine is welded with seamless steel structure, which is high t emperature annealing and vibrating stress relief, so the lathe body is stabil ized and will not be deformed forever.
- Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
- Adopting advanced system with USB connection, operated with th e handle, convenient operation. Our engraver can completely work off-li ne and do not take any computer resources.

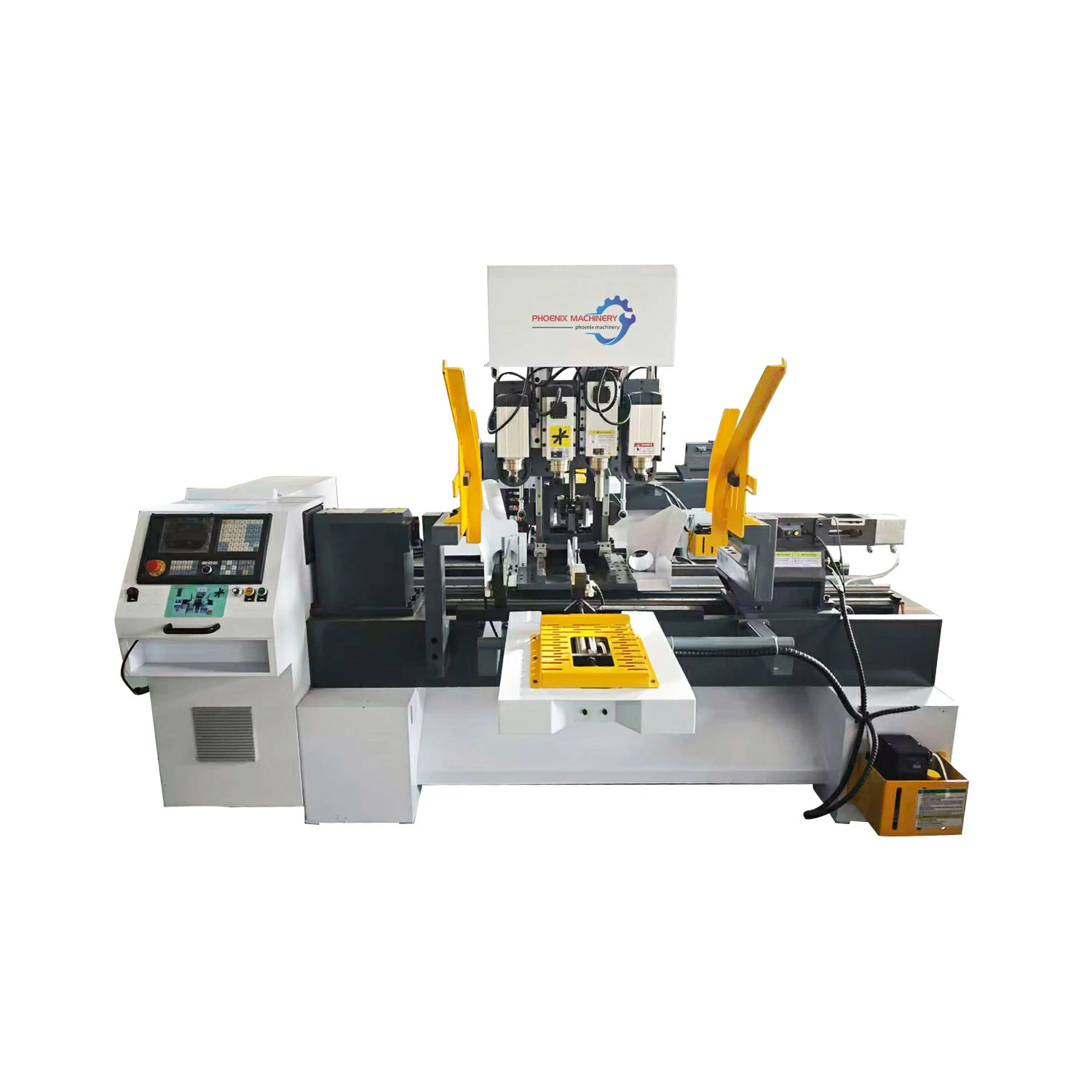

| Model | MC412T6 |
| Working Track | 1200mm*200mm |
| Rotation spindle | 1*4kw 6000rpm Servo spindle |
| Milling spindle 1&4 | 2* 4.5kw 18000rpm （Adjustable angle） |
| Milling spindle 2 | 1* 6kw 18000rpm |
| Milling spindle 3 | 1*7.5kw 12000rpm |
| Control system | NEWKER 4 axis |
| X,Y,Z axis Feeding Mode | X/Y/Z Newker servo driver, |
| A axi Feeding Mode | Alpha spindle servo system |
| Working accuracy | 0.07mm/200mm |
| X,Y,Z axis Maximum moving speed | 12m/min |
| Maximum processing speed | 10m/min |
| Overall dimensions | 3020mm*2220mm*2050mm |
| Weight | 2000KG |
