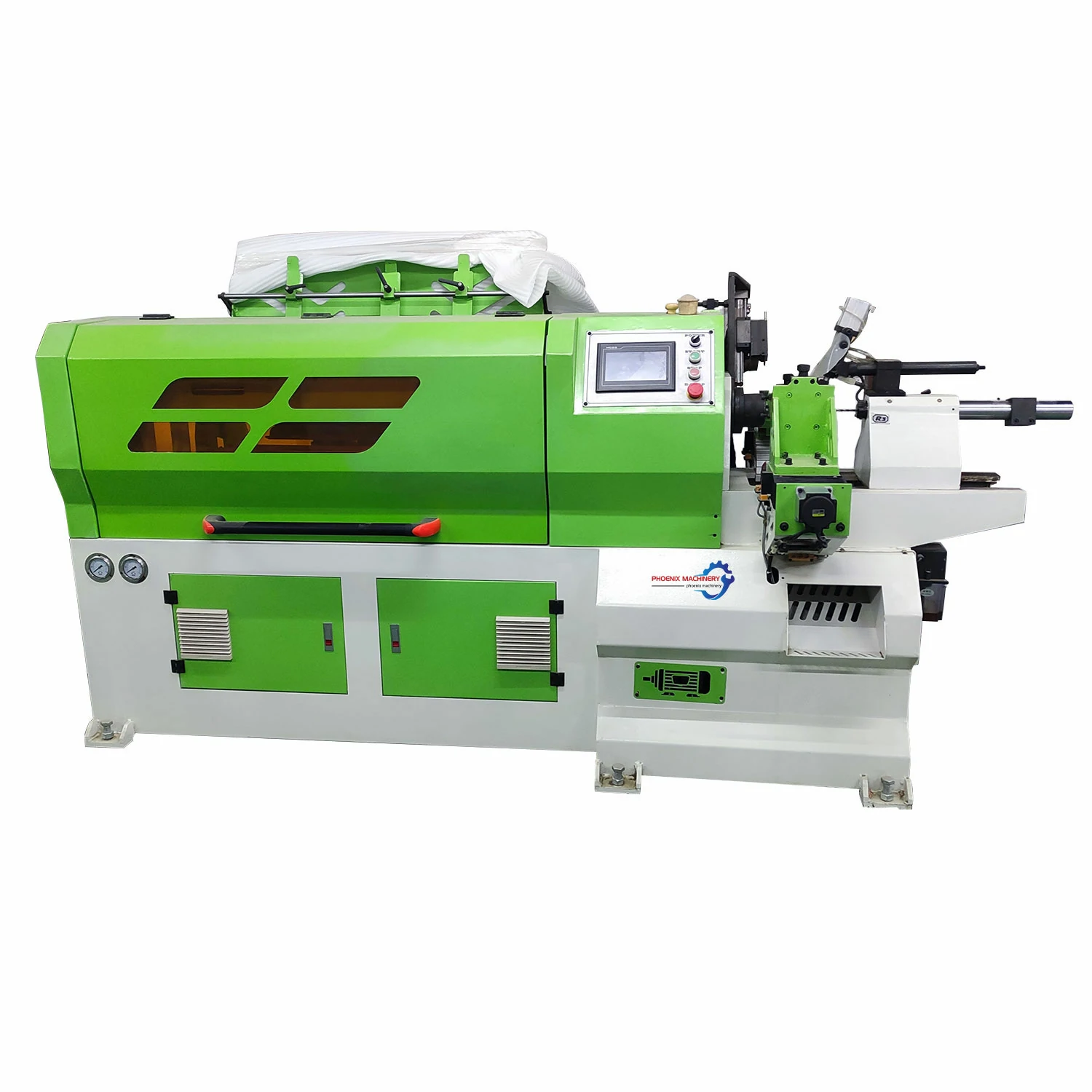

Fully automatic multi-function integrated CNC woodworking lathe, fully automatic loading and unloading, with milling, cutting, drilling and other functions; The whole machine adopts high-quality electric control system,PLC program control, high-precision spindle and high-quality bearing.
| Model | PL450 |
| Max. processing length | 750mm |
| Machinable diameter | 15-50mm |
| Length of machined parts | 100mm |
| Tool rest travel | 150mm |
| Tailstock stroke | 150mm |
| Power of oil pump | 1.5kw |
| Spindle motor power | 4kw |
| Spindle motor speed | 100-3000rpm |
| Working air pressure | 0.6-0.8Mpa |
| Overall dimensions | 2700×1300×1400mm |
| Net weight | 1345kg |
