PL1530S
PL1530S - Image 2
PL1530S - Image 3
PL1530S - Image 4

PL1530S

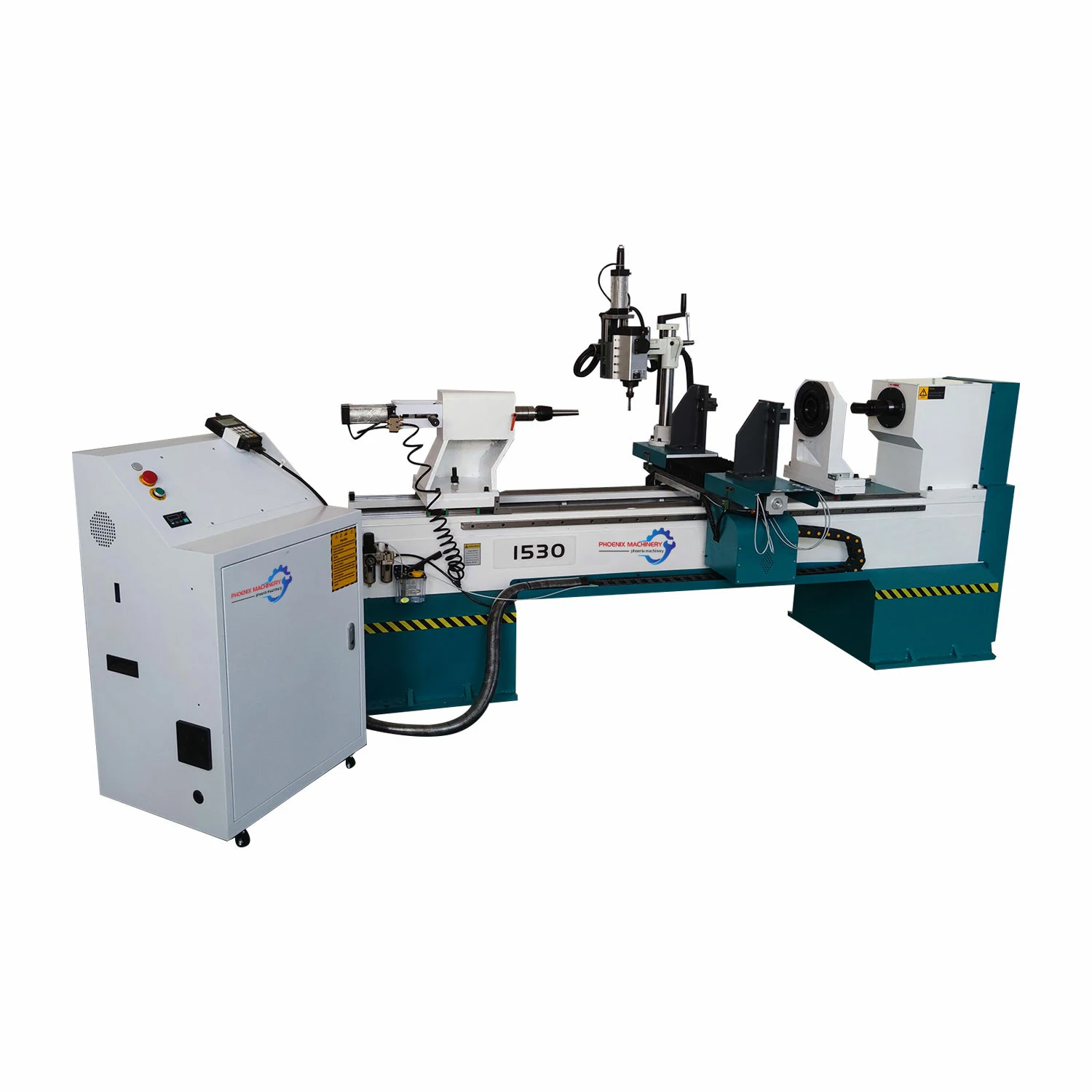

Automatic turning machine multi function Single Axis Double Blades cnc wood lathe machine

Inquire Now
产品类别

Description

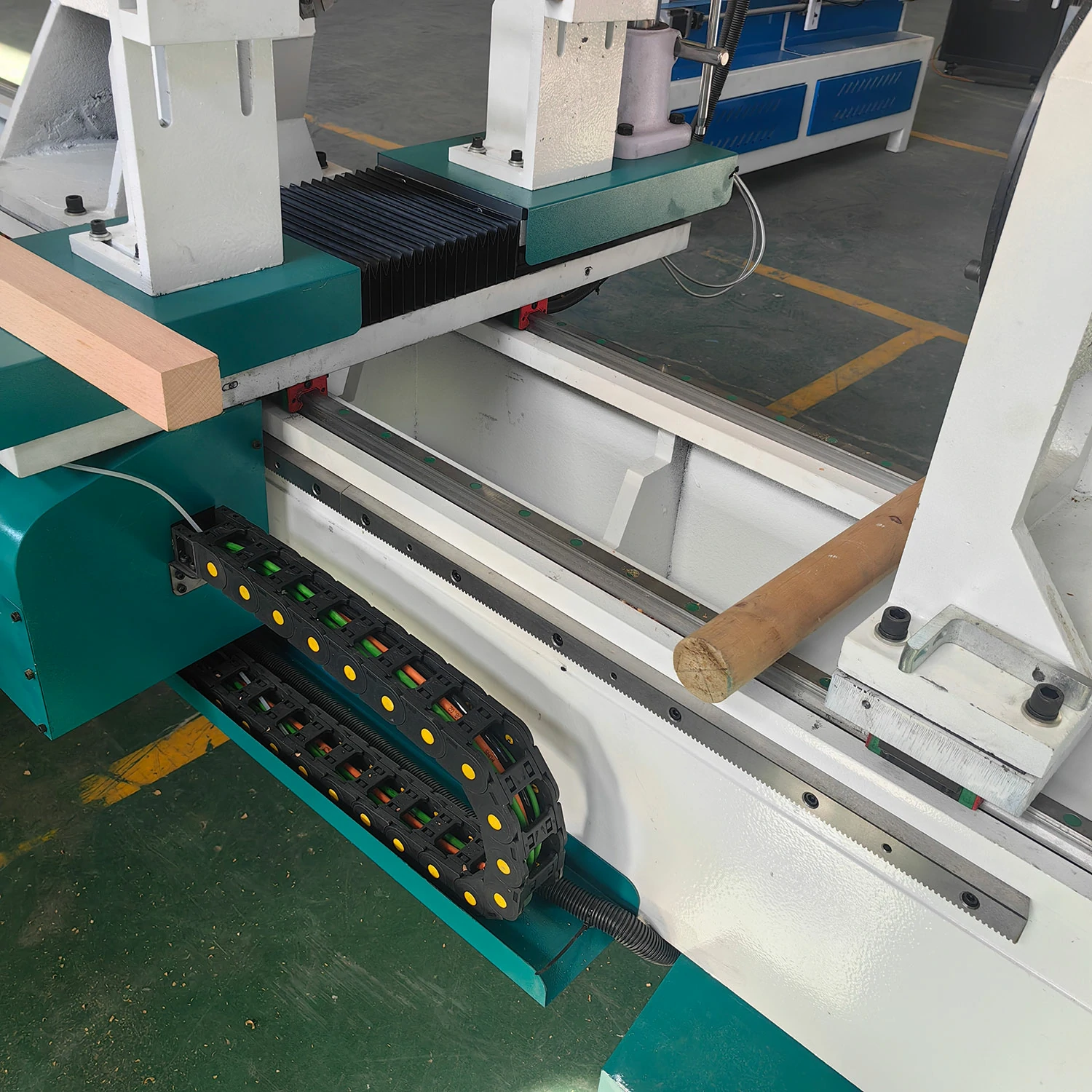

The wood turning lathe adopts rack-gear transmission.cutting and engraving quickly with more power and very small precision gap.Imported linear square guide rail(TAIWAN HIWIN,PMI,THK is optional ),x,y axis with grew gear tooth,and it is more precise,anti-friction and better load-bearing than straight gear.

Model PL1530S
Max processing length 1500mm
Max turning diameter 300mm
Air pressure 0.6-0.8Mpa
Power supply AC 380V 3 phase 50HZ/60HZ（Customized voltage 220V）
Max feed rate 2000mm/min
Positioning Accuracy ±0.02mm Repeatability X,Y,Z Traveling Positioning Accuracy
Transmission type Gear-Rack Drive for Y axis
Bed Frame Heavy-duty integral fully cast lathe, independent control cabinet
Motor power 4kw （pure servo rotating motor)
Main shaft rotating speed 0-6000r/min
Milling spindle motor 3.5kw（ high-speed air-cooled spindle)
Milling spindle speed 0-18000r/min

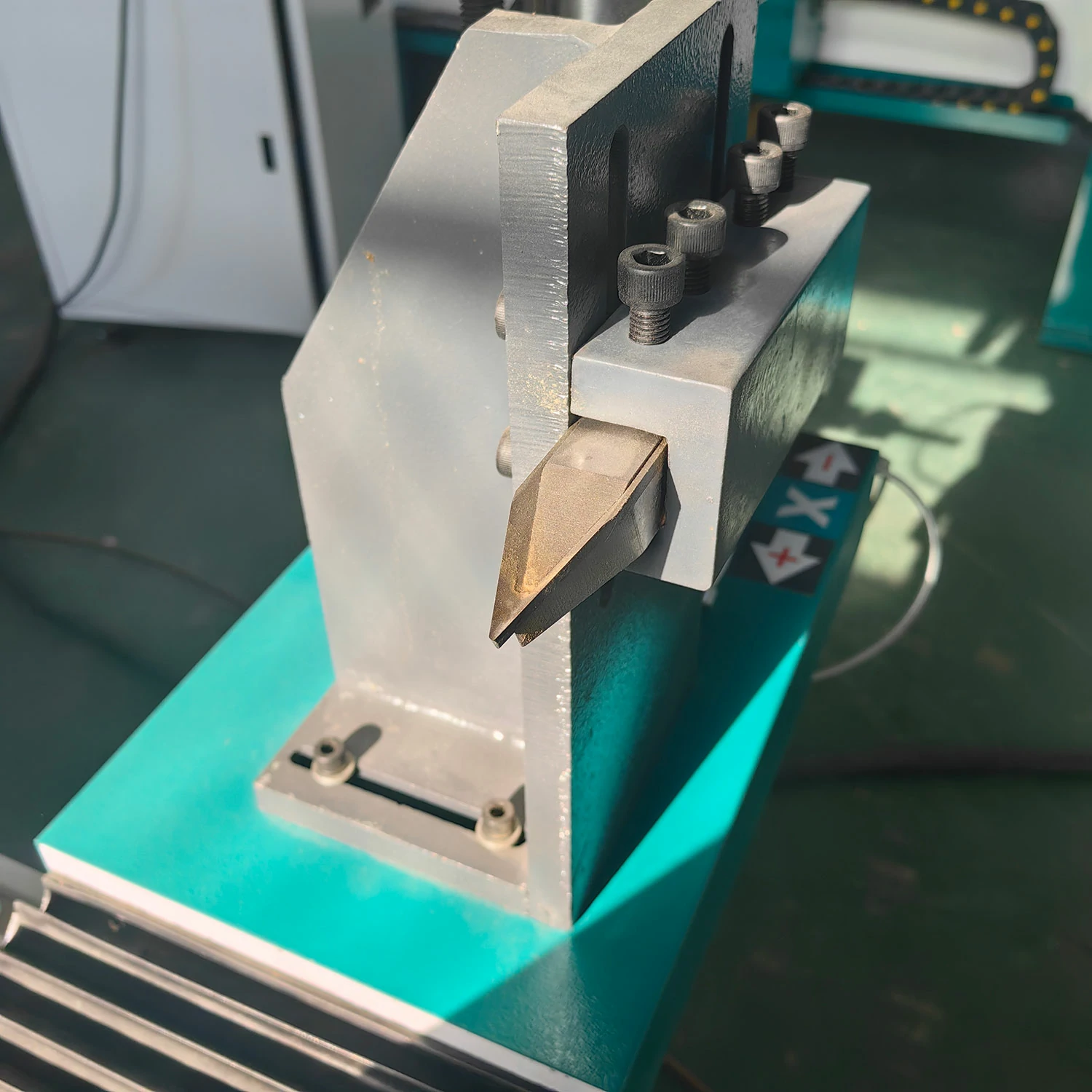

Cutter material Hard alloy blade
Control system DSP control system
Hand controller recognise file *.dxf
Drawing software AutoCAD
Command language G code

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products

FAQ

First, Qingdao Phoenix Machinery Co., Ltd.is very professional that engaged in the CNC machine manufacturing for about 16 years. Second, customers recognize the quality and reliability of Phoenix Machinery equipment. SO most of them choose to work with us for two or more times. Third, we can provide complete service (technical support, training, and troubleshooting assistance) to help customers get the most out of their machines.

We offer three main modes of transport: sea freight, air freight, and rail freight. Sea freight is the most frequently chosen mode by our customers. The specific transport method can be determined through negotiation based on the specific needs of both parties.

Usually, it will take 7 to 30 days. But the machine making process, transportation distance, and method will all affect the delivery time. So it should be decided by the specific condition.

We offer a variety of models for customers to choose from based on their processing needs. You can consult our sales staff, who will provide the most professional and suitable solutions to ensure you purchase the machine that best suits your needs.

Payment can be made by TT or L/C. If customers are worried about financial security, we also support cash on delivery through Alibaba- the cross-border e-commerce platform.

Yes, Visitors can see our production process, test our machines, and discuss customization options. If an in-person visit is not possible, we can arrange a virtual factory tour via video call.

We offer both on-site and remote training options. Standard machines come with a detailed video tutorial and manual for easy self-installation. For complex machines or bulk orders, we can send a technician to provide on-site installation and training, available in select regions. We also provide free online training, including software setup, machine calibration, and best practices for efficient production.

Usually, it will take 7 to 30 days. But the machine making process, transportation distance, and method will all affect the delivery time. So it should be decided by the specific condition.

Wherever you are, PhoenixMachinery customer advisors are dedicated to serving you. Please fill in your information, and we will provide you with the services you need as soon as possible. We are the original manufacturer, consistently committed to providing the best quality, just as PhoenixMachinery has done for over two decades.
