PL1530

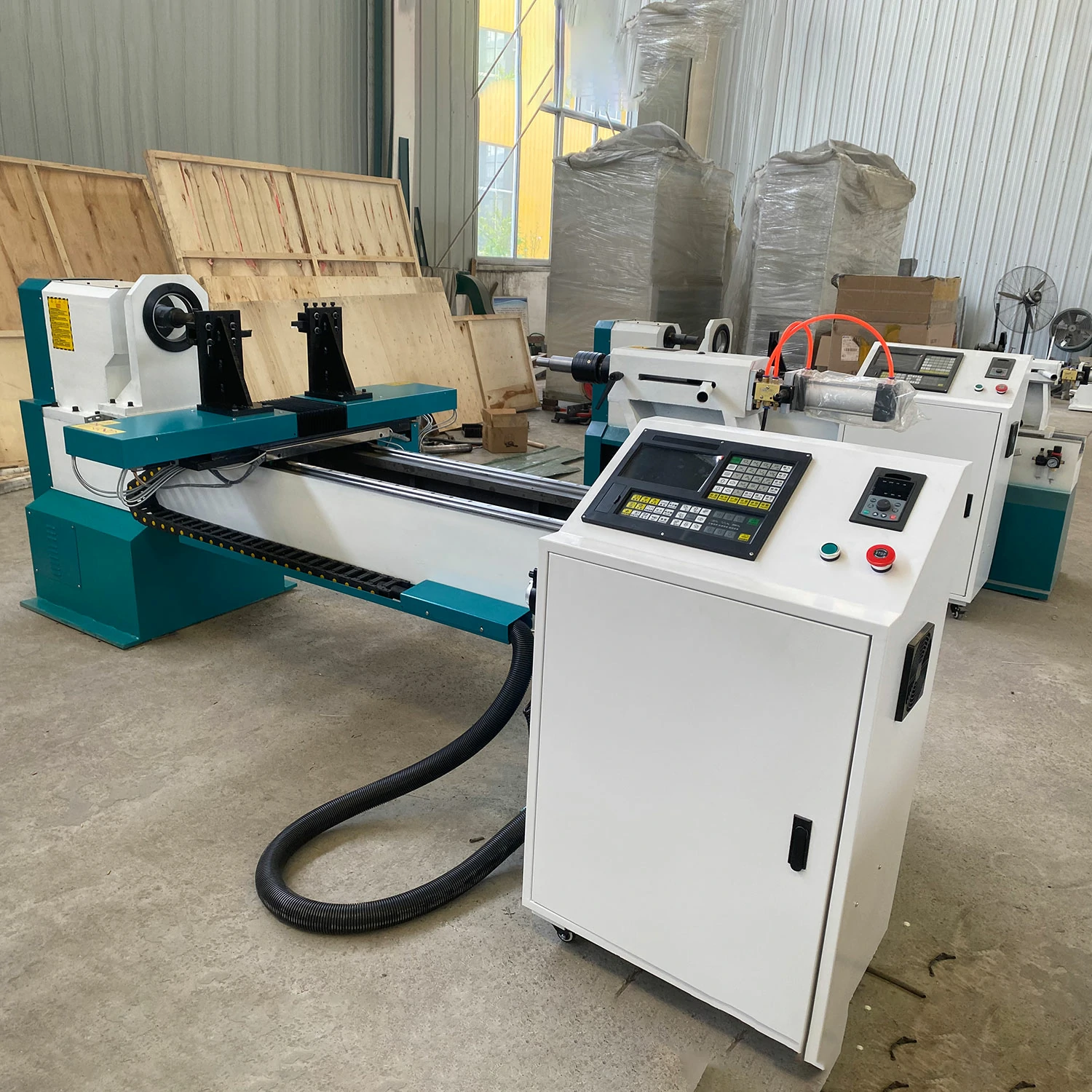

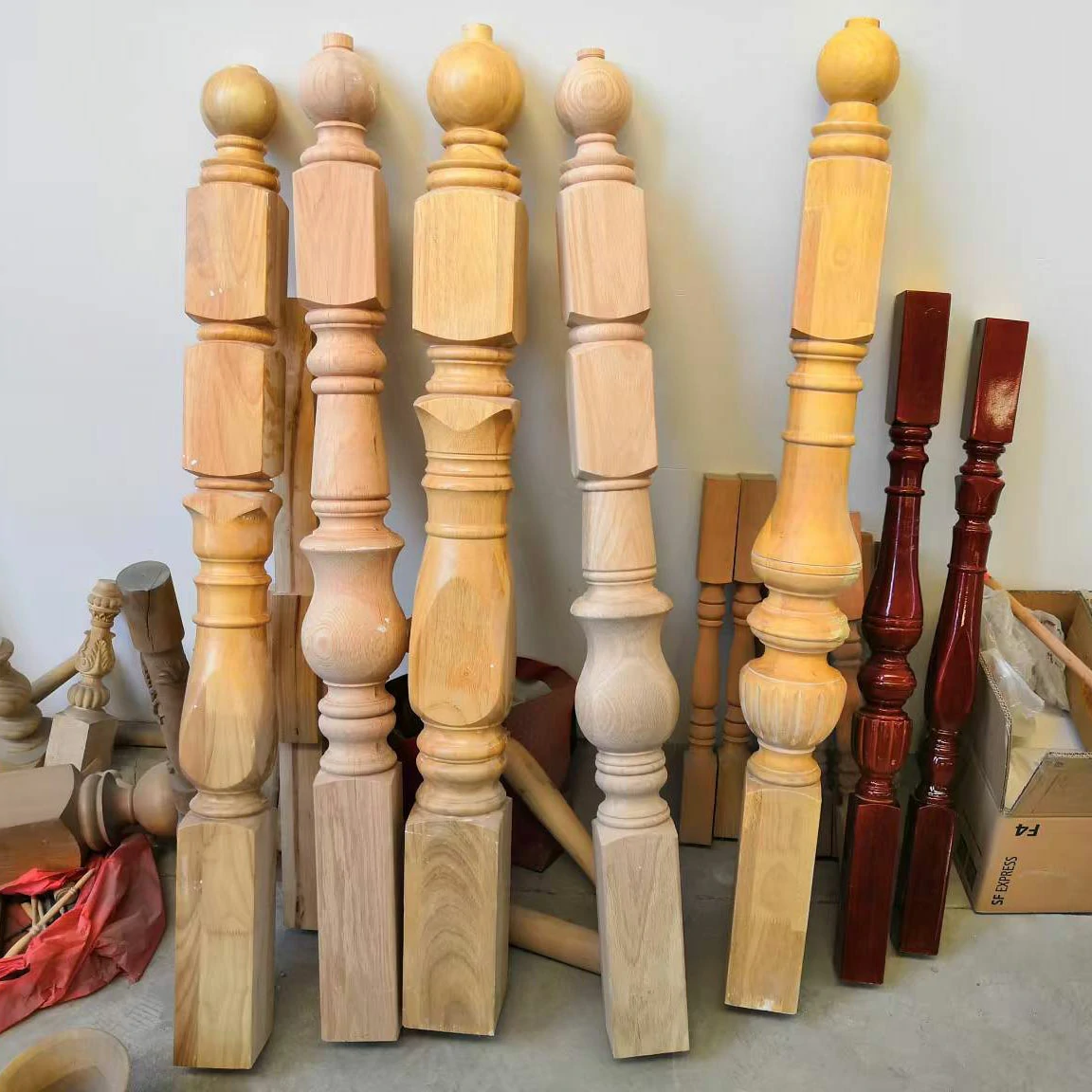

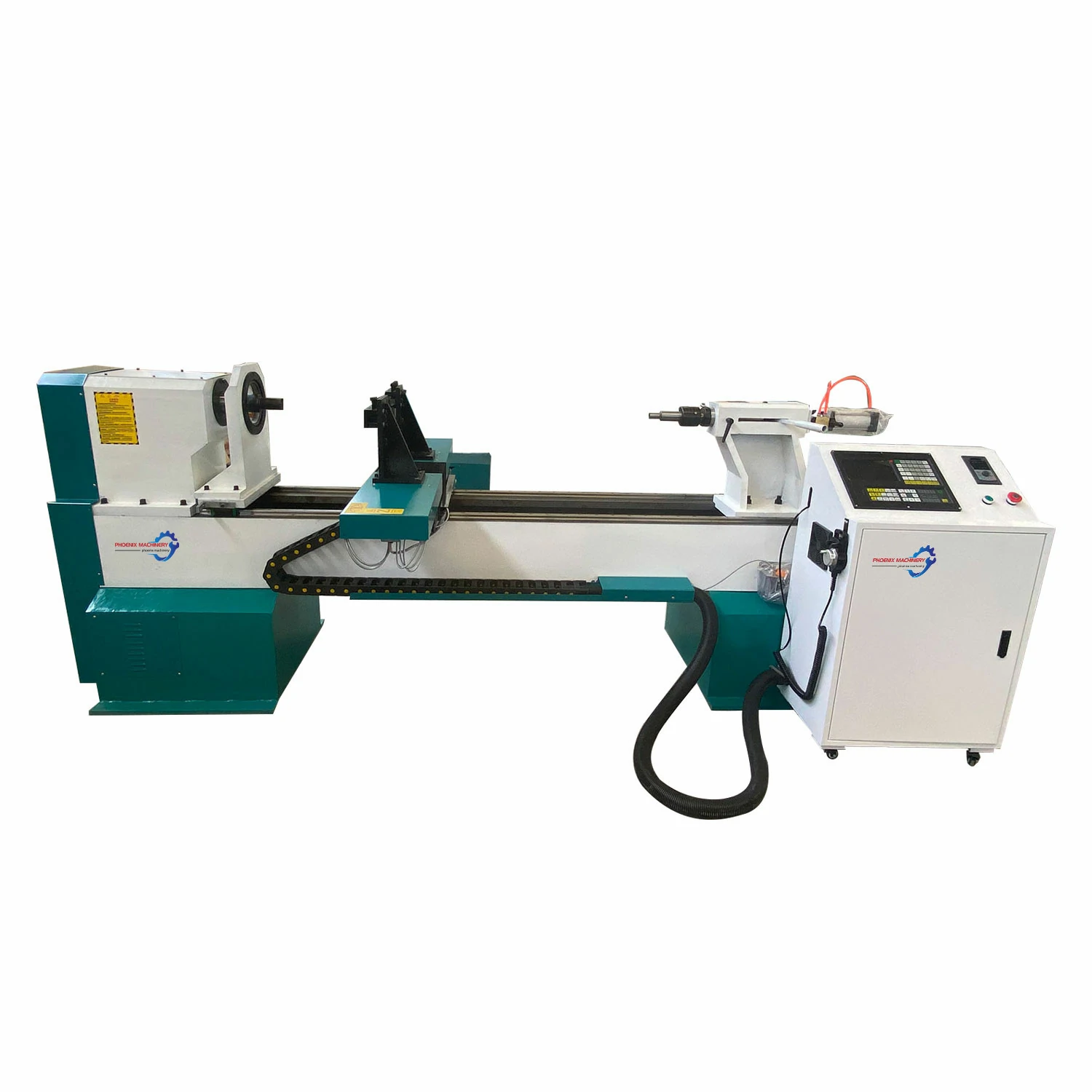

Single spindle double tool wood turning lathe machine For Wooden Stair Handrail Making

Inquire Now

描述

Manufacturer Long Service Life diameter 300mm max length 1500mm Cnc Wood Lathe Machine

Model PL1530
Max processing length 1500mm
Max turning diameter 300mm
Air pressure 0.6-0.8Mpa
Power supply AC 380V 3 phase 50HZ/60HZ（Customized voltage 220V）
Max feed rate 2000mm/min
Min setting unit 0.01cm
Transmission type Ball screw for Y axis
Main shaft rotating speed 0-3000r/min
Motor power 4kw
Cutter material Hard alloy blade

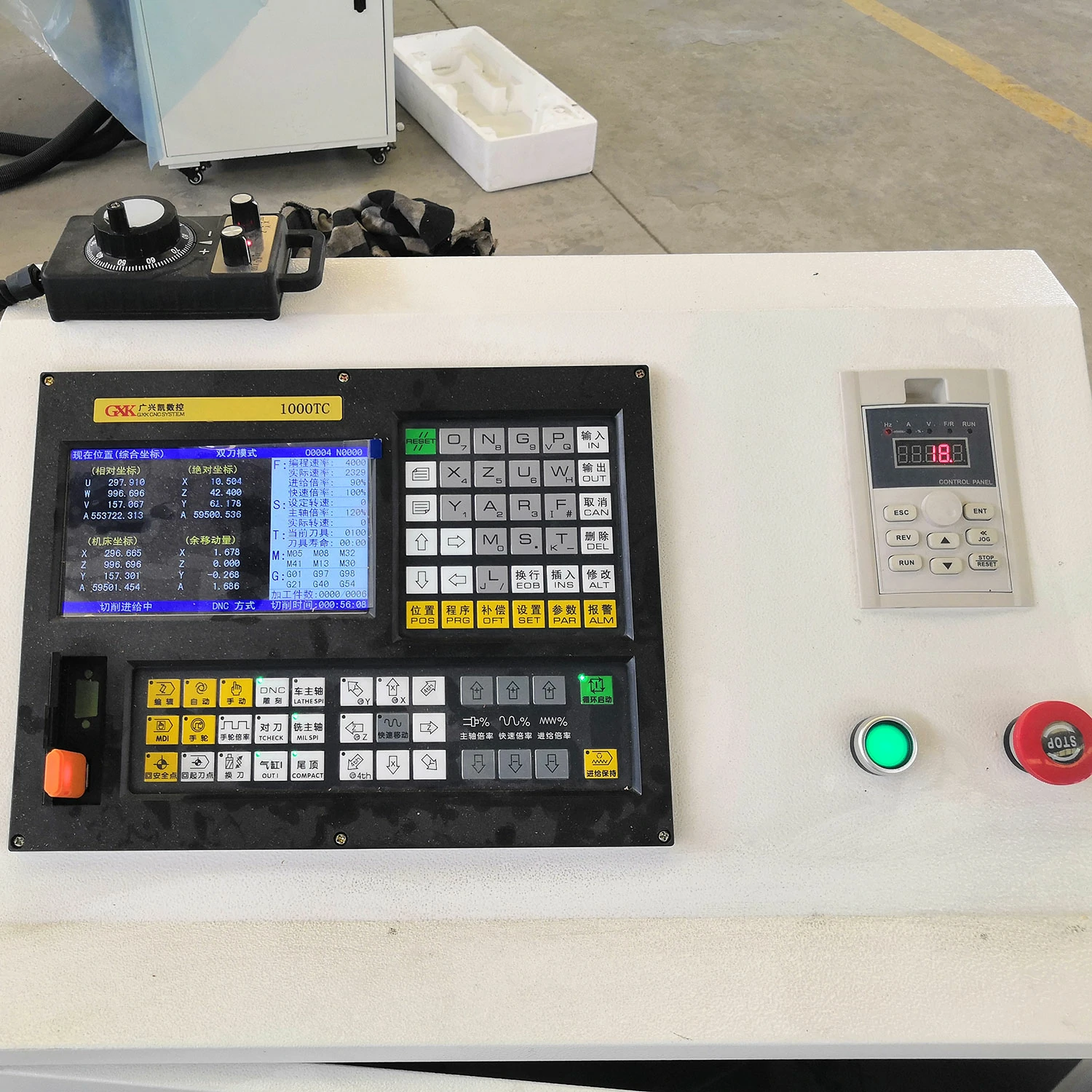

Control System Lcd screen control system
Hand controller recognise file *.dxf
Drawing Software AutoCAD
Command Language G code
